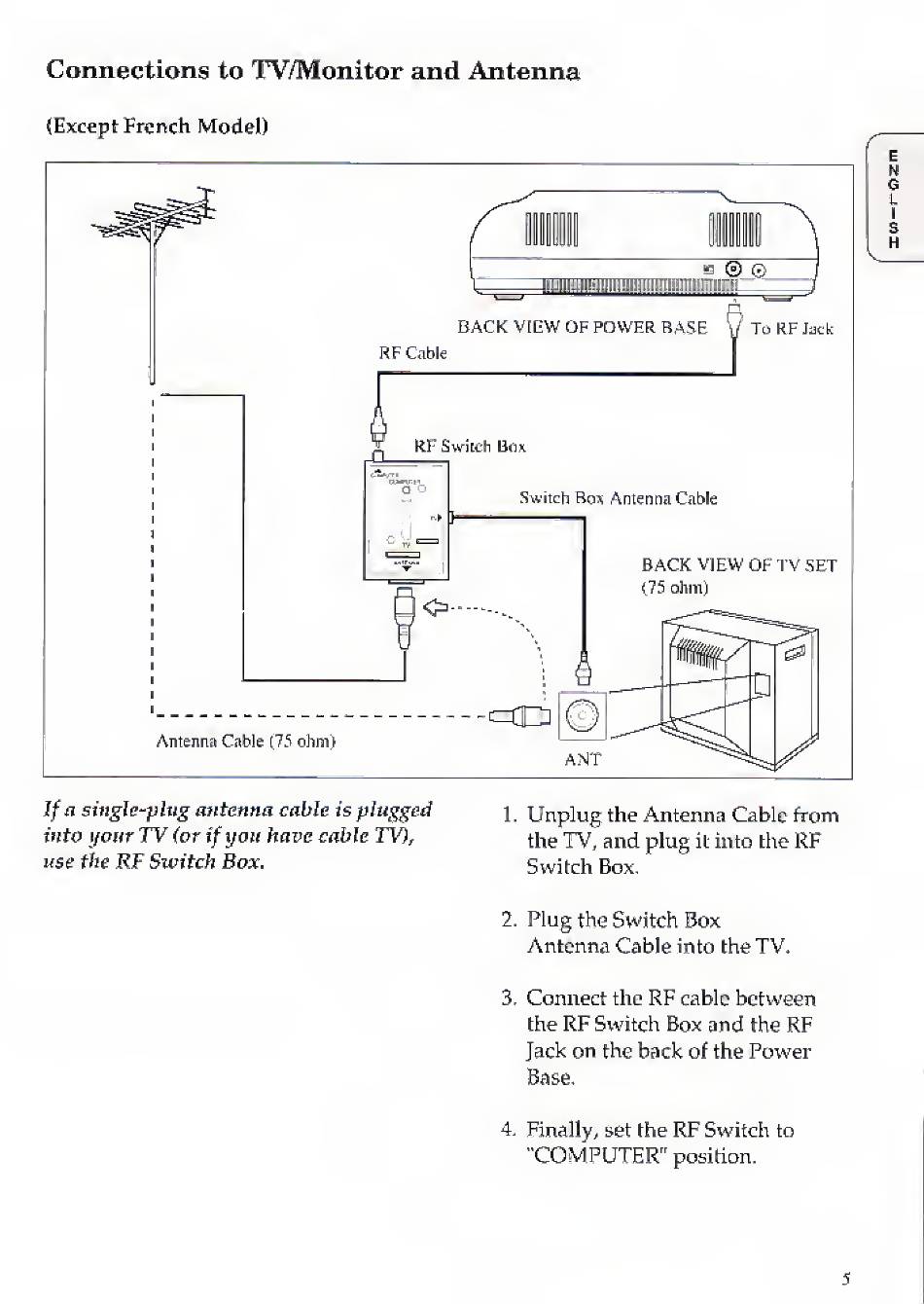

Connections
to
TV/Monitor and Antenna
(Except
French Model)
"\_
B ®
©
BACK
VIEW OF
POWER
BASE
V
To
RF
Jack
RF
Cable
RF
Switch
Box
>
}
Switch
Bos
Antenna Cable
<P
.
BACK
VIEW OF TV
SET
(75
ohm)
'--
c(D
Antenna Cable
(75
ohm)
AN
'I
If
a single-plug antenna
cable
is
plugged
into
your
TV
(or
if
you have
cable TV),
use
the
RF
Switch Box.
1.
Unplug
the
Antenna Cable from
the
TV, and
plug
it
into the
RF
Switch
Box,
2.
Plug
the Switch
Box
Antenna Cable
into the
TV,
3,
Connect
the
RF
cable
between
the
RF
Switch
Box and
the
RF
Jack
on
the back
of the
Power
Base,
4.
Finally, set the
RF
Switch
to
"COMPUTER"
position.
