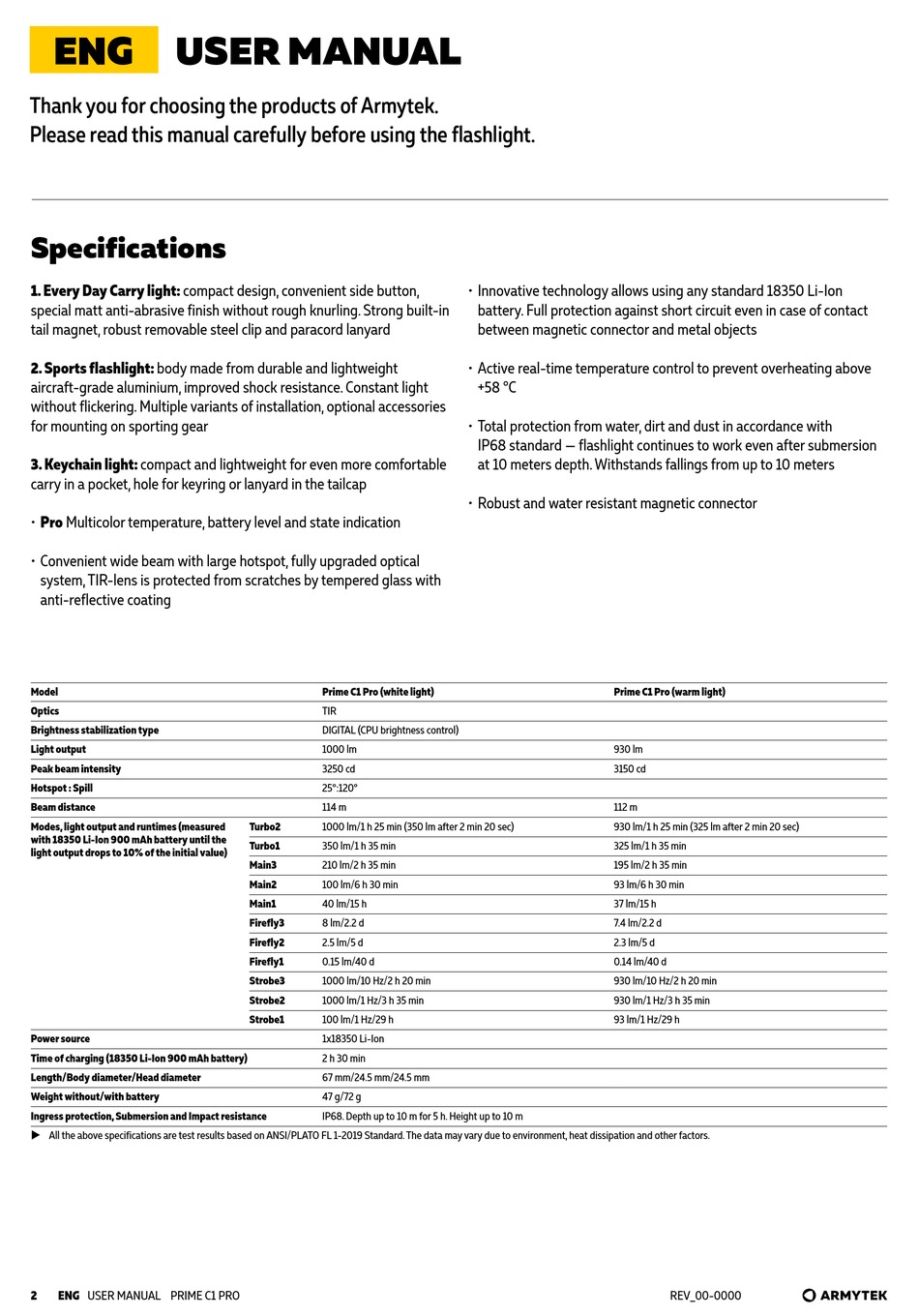

ENG USER MANUAL
Thank you for choosing the products of Armytek.
Please read this manual carefully before using the flashlight.
Specifications
1. Every Day Carry light: compact design, convenient side button,
special matt anti-abrasive finish without rough knurling. Strong built-in
tail magnet, robust removable steel clip and paracord lanyard
2. Sports flashlight: body made from durable and lightweight
aircraft-grade aluminium, improved shock resistance. Constant light
without flickering. Multiple variants of installation, optional accessories
for mounting on sporting gear
3. Keychain light: compact and lightweight for even more comfortable
carry in a pocket, hole for keyring or lanyard in the tailcap
• Pro Multicolor temperature, battery level and state indication
• Convenient wide beam with large hotspot, fully upgraded optical
system, TIR-lens is protected from scratches by tempered glass with
anti-reflective coating
Model
Optics
Brightness stabilization type
Light output
Peak beam intensity
Hotspot : Spill
Beam distance
Modes, light output and runtimes (measured
with 18350 Li-Ion 900 mAh battery until the
light output drops to 10% of the initial value)
Power source
Time of charging (18350 Li-Ion 900 mAh battery)
Length/Body diameter/Head diameter
Weight without/with battery
Ingress protection, Submersion and Impact resistance
X All the above specifications are test results based on ANSI/PLATO FL 1-2019 Standard. The data may vary due to environment, heat dissipation and other factors.
2 ENG USER MANUAL PRIME C1 PRO
Prime C1 Pro (white light)
TIR
DIGITAL (CPU brightness control)
1000 lm
3250 cd
25°:120°
114 m
Turbo2 1000 lm/1 h 25 min (350 lm after 2 min 20 sec)
Turbo1 350 lm/1 h 35 min
Main3
210 lm/2 h 35 min
Main2
100 lm/6 h 30 min
Main1
40 lm/15 h
Firefly3
8 lm/2.2 d
Firefly2
2.5 lm/5 d
Firefly1 0.15 lm/40 d
Strobe3 1000 lm/10 Hz/2 h 20 min
Strobe2 1000 lm/1 Hz/3 h 35 min
Strobe1 100 lm/1 Hz/29 h
1x18350 Li-Ion
2 h 30 min
67 mm/24.5 mm/24.5 mm
47 g/72 g
IP68. Depth up to 10 m for 5 h. Height up to 10 m
• Innovative technology allows using any standard 18350 Li-Ion
battery. Full protection against short circuit even in case of contact
between magnetic connector and metal objects
• Active real-time temperature control to prevent overheating above
+58 °C
• Total protection from water, dirt and dust in accordance with
IP68 standard — flashlight continues to work even after submersion
at 10 meters depth. Withstands fallings from up to 10 meters
• Robust and water resistant magnetic connector
Prime C1 Pro (warm light)
930 lm
3150 cd
112 m
930 lm/1 h 25 min (325 lm after 2 min 20 sec)
325 lm/1 h 35 min
195 lm/2 h 35 min
93 lm/6 h 30 min
37 lm/15 h
7.4 lm/2.2 d
2.3 lm/5 d
0.14 lm/40 d
930 lm/10 Hz/2 h 20 min
930 lm/1 Hz/3 h 35 min
93 lm/1 Hz/29 h
REV_00-0000
