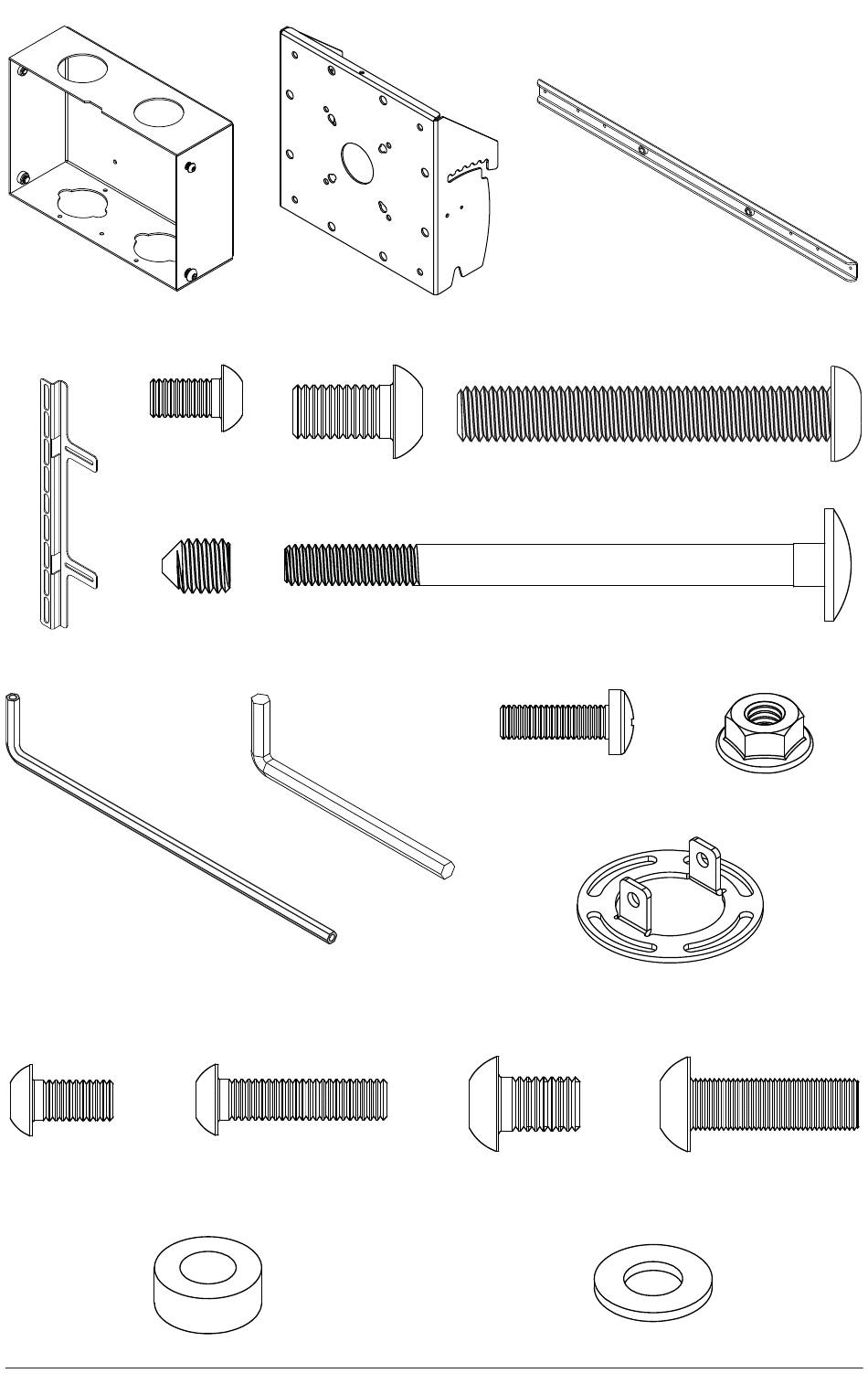

F ( 1 ) G ( 1 )
tilt box tilt plate
H ( 2 )
horizontal rail
I ( 2 ) J ( 8 ) K ( 8 ) L ( 4 )
M5 x 10mm M8 x 15mm M8 x 55mm
vertical rail
M ( 4 ) P ( 2 )
set screw M6 x 80mm
Q ( 2 ) R ( 2 )
M5 x 16mm M6 nut
N ( 2 )
O (2)
4mm allen wrench
5mm allen wrench
S ( 2 )
support collar
AA ( 4 ) BB ( 4 ) CC ( 4 ) DD ( 4 )
M6 x 12mm M6 x 25mm M8 x 12mm M8 x 25mm
EE ( 8 ) FF ( 8 )
spacer M6/M8 washer
5
2014-01-31 #:203-9370-1
