G e n e r a l i n f o r ma t i o n :

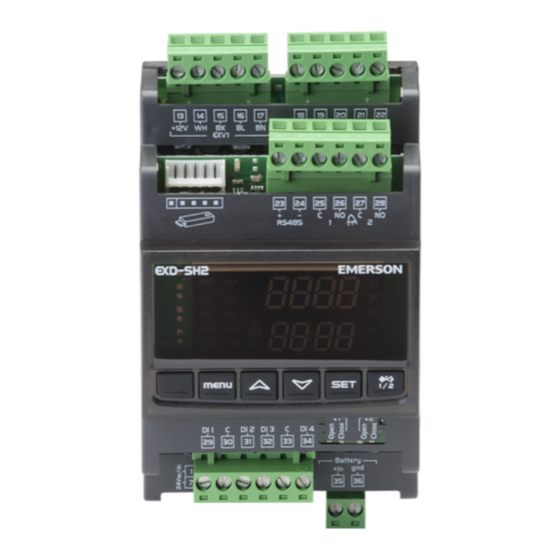

EXD-SH1/2 are stand alone superheat and or temperature controllers. EXD-SH1 is
intended for operation of one bipolar valve CX/EX/FX valve whereas EXD-SH2 is
designed for operation of two independent bipolar CX/EX/FX valves.
A table of the available application possibilities is listed below:
Controller Circuit 1: Main function
EXD-SH1 Superheat or temperature control
EXD-SH2 Superheat or temperature control
Notes:
It is possible to use only circuit 1 from EXD-SH2. In this case, the circuit 2
must be disabled (C2 parameter) and the sensors and the valve for the second
circuit are not needed.
ModBus communication is described in a Technical Bulletin and it is not
covered by this document.
T e c h n i c a l d a t a :
Power supply 24VAC/DC +10%/-10% 50/60HZ,
Power consumption EXD-SH1: 25VA
Plug-in connector Removable screw terminals wire size 0.14 ... 1.5 mm
Protection class IP00
ECN-N... (temperature range down to -45°C)
Temperature sensors ECN-Z... (temperature range down to -80°C ultra
low temperature)
Allowable
operating/surrounding 0 to +55°C
temperature
Maximum cable distance
50 cm
between EXD-SH and
AWG 18 wire size (≥ 1mm
EXD-PM
Pressure sensors PT5/PT6 or ratiometric probes
Output alarm relay current Resistive Load 24 V AC/DC, 1 A
rating Inductive Load 24 V AC/DC, 0.5 A
Contact is closed: During alarm condition
Contact is open: During normal operation and supply power OFF
Stepper motor output Valves: EX4...8, CX4...7 and FX5...9
Mounting For standard DIN rail
Marking
D i me n s i o n s [ m m ] :
S a f e t y i n s t r u c t i o n s :
• Read operating instructions thoroughly. Failure to comply can result in
device failure, system damage or personal injury.
• It is intended for use by persons having the appropriate knowledge and skill.
• Before installation or service disconnect all voltages from system and device.
• Do not operate system before all cable connections are completed.
• Do not apply voltage to the controller before completion of wiring.
• Entire electrical connections have to comply with local regulations.
• Inputs are not isolated, potential free contacts needed to be used.
Emerson Climate Technologies GmbH
Am Borsigturm 31 I 13507 Berlin I Germany
EXD-SH1/2 Controller for EX/CX/FX with
ModBus communication capability
Circuit 2: Main function
Superheat Control
EXD-SH2: 50VA
2
)
,
pending
www.emersonclimate.eu
Operating Instructions
Valve opening
100%
0%
2
Valve opening
100%
0%
E l e c t r i c a l c o n n e c t i o n a n d w i r i n g :
• Refer to the electrical wiring diagram for electrical connections.
• Note: Keep controller and sensor wiring well separated from supply power
cables. Minimum recommended distance 30mm.
• When connecting the wires of the EXV-M... (electrical plug of valves)
consider the color coding as follows:
EXV-M...: WH: White;
• The digital input DI1 (EXD-SH1/SH2) and DI2 (EXD-SH2) are the interfaces
between EXD-SH1/2 and upper level system controller if the Modbus
communication has not been used. The external digital inputs must be free of
potential (dry contact) and shall be operated in function system's
compressor/demand.
Operating condition
Compressor starts/run
Compressor stops
Note: Connecting any EXD-SH1/2 inputs to the supply voltage will
permanently damage the EXD-SH1/2.
Date: 14.12.2015
T e mp e r a t u r e s e t t i n g i n n o r m a l s e n s e
(Controller function as temperature controller)
%
1tbd
1tAL
T e mp e r a t u r e s e t t i n g i n r e v e r s e s e n s e
(Controller function as temperature controller)
%
1tbd
1tAL
BK: Black; BN: Brown; BL: Blue
Digital input status
External contact to be closed (Start)
External contact to be open (Stop)
EXD-SH12_OI_ML_R02_865917.docx
Temperature
1tst 1tAH
Temperature
1tst/ 1tAH
