2. General information
Tecto MD5 / MD5 eco / MD7 is a vertical, refrigerated display cabinet for remote installations.
The equipment feeding the refrigerant is housed in a separate, remote room.
Tecto MD5 / MD5 eco / MD7 cabinets can be installed individually or in parallel. Each cabinet is individually
temperature controlled and comes pre-set to the correct temperature, as determined during product order.
Heat loss is minimised by a steady vertical airflow in front of the shelves. Maintaining an unobstructed and
steady airflow is crucial for the proper operation of the cabinet.

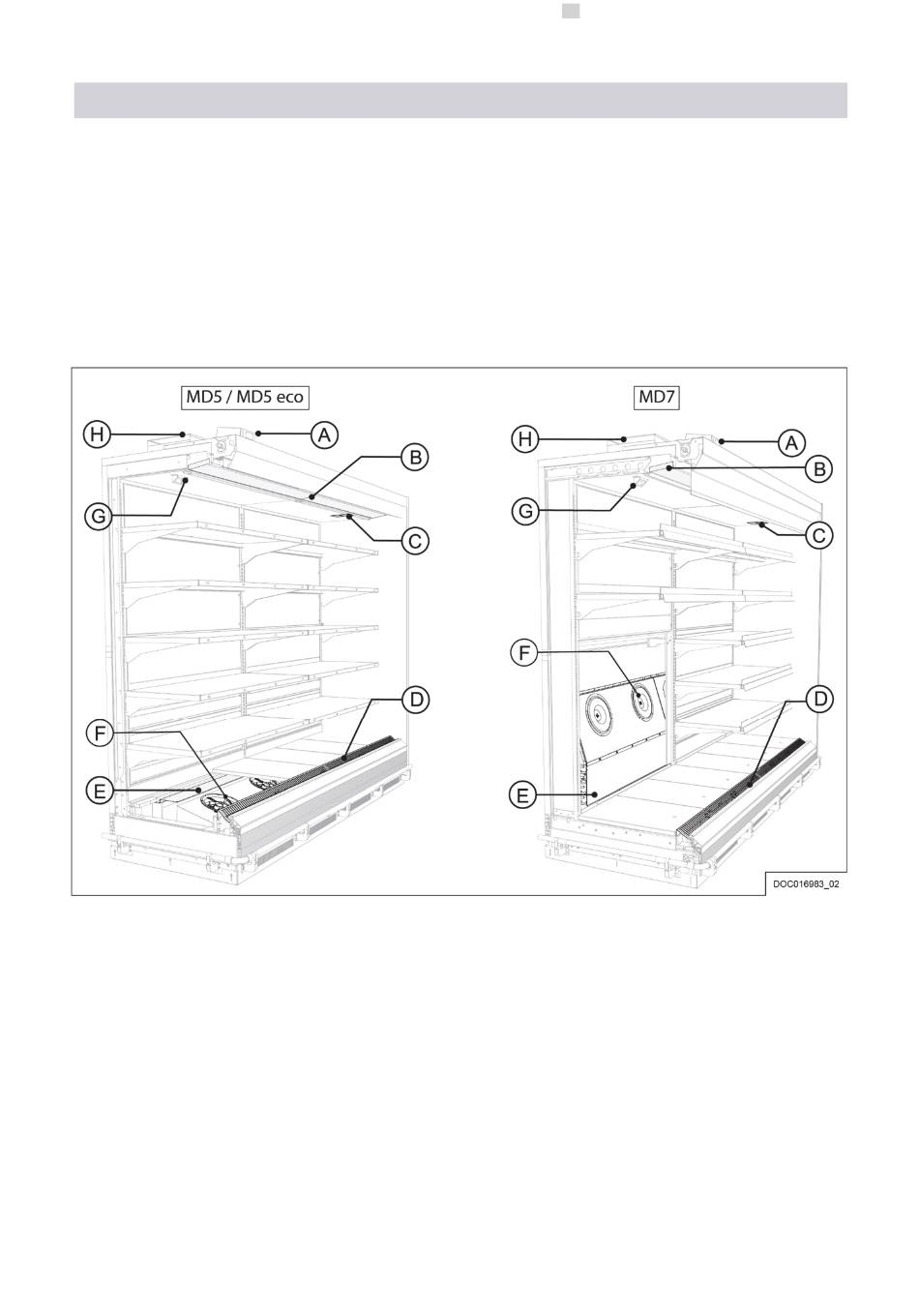

2.1. Main components
A Control unit with light switch (optional)
B Honeycomb
C Equipment nameplate and loading instructions
D Suction grid
E Evaporator
- MD5 / MD5 eco: underneath bottom plates, behind fans
- MD7: behind wall panels, below fans
F Evaporator fans
- MD5 / MD5 eco: underneath bottom plates
- MD7: behind wall panels
G Temperature display (optional)
H Electrical connection box
