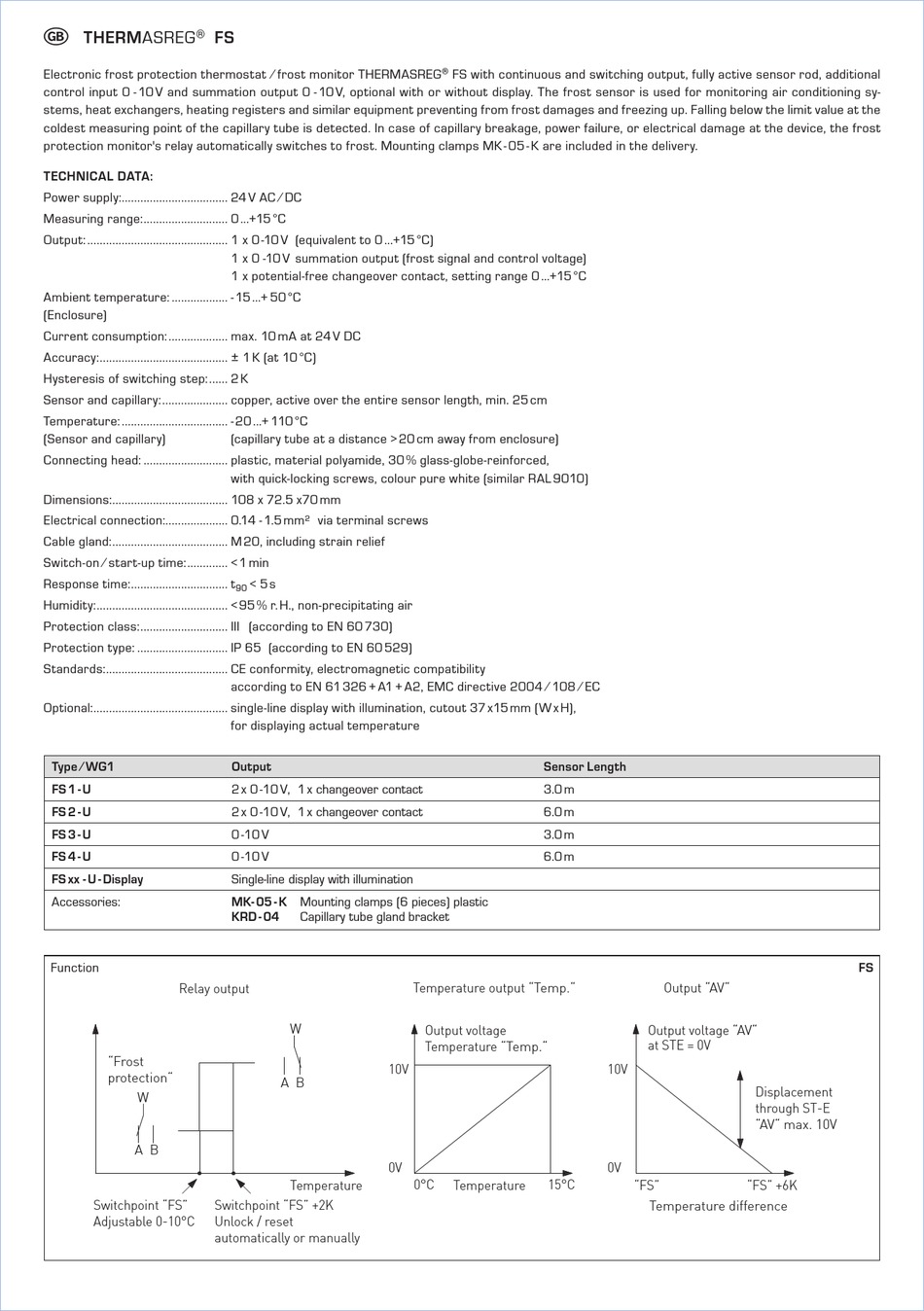

THERMASREG ® FS
Electronic frost protection thermostat ⁄ frost monitor THERMASREG
control input 0 - 10 V and summation output 0 - 10 V, optional with or without display. The frost sensor is used for monitoring air conditioning sy-
stems, heat exchangers, heating registers and similar equipment preventing from frost damages and freezing up. Falling below the limit value at the
coldest measuring point of the capillary tube is detected. In case of capillary breakage, power failure, or electrical damage at the device, the frost
protection monitor's relay automatically switches to frost. Mounting clamps MK - 05 - K are included in the delivery.

TECHNICAL DATA:

Power supply: .................................. 24 V AC ⁄ DC
Measuring range: ........................... 0 ...+15 °C
Output: ............................................. 1 x 0 -10 V (equivalent to 0 ...+15 °C)
Ambient temperature: .................. - 15 ...+ 50 °C
(Enclosure)
Current consumption: ................... max. 10 mA at 24 V DC
Accuracy: ......................................... ± 1 K (at 10 °C)
Hysteresis of switching step: ...... 2 K
Sensor and capillary: ..................... copper, active over the entire sensor length, min. 25 cm
Temperature: .................................. - 20 ...+ 110 °C
(Sensor and capillary)
Connecting head: ........................... plastic, material polyamide, 30 % glass-globe-reinforced,
Dimensions: ..................................... 108 x 72.5 x70 mm
Electrical connection: .................... 0.14 - 1.5 mm² via terminal screws
Cable gland: ..................................... M 20, including strain relief
Switch-on ⁄ start-up time: ............. < 1 min
Response time: ............................... t
Humidity: .......................................... < 95 % r. H., non-precipitating air
Protection class: ............................ III (according to EN 60 730)
Protection type: ............................. IP 65 (according to EN 60 529)
Standards: ....................................... CE conformity, electromagnetic compatibility
Optional: ........................................... single-line display with illumination, cutout 37 x15 mm (W x H),
Type ⁄ WG1
FS 1 - U
FS 2 - U
FS 3 - U
FS 4 - U
FS xx - U - Display
Accessories:
Function
Relay output
"Frost
protection"
W
A B
Switchpoint "FS" Switchpoint "FS" +2K
Adjustable 0-10°C Unlock / reset
automatically or manually
1 x 0 -10 V summation output (frost signal and control voltage)
1 x potential-free changeover contact, setting range 0 ...+15 °C
(capillary tube at a distance > 20 cm away from enclosure)
with quick-locking screws, colour pure white (similar RAL 9010)
< 5 s
90
according to EN 61 326 + A1 + A2, EMC directive 2004 ⁄ 108 ⁄ EC
for displaying actual temperature
Output
2 x 0 -10 V, 1 x changeover contact
2 x 0 -10 V, 1 x changeover contact
0 -10 V
0 -10 V
Single-line display with illumination
MK- 05 - K Mounting clamps (6 pieces) plastic
KRD - 04 Capillary tube gland bracket
W
10V
A B
0V
Temperature
® FS with continuous and switching output, fully active sensor rod, additional
Sensor Length
3.0 m
6.0 m
3.0 m
6.0 m
Temperature output "Temp."
Output voltage
Temperature "Temp."
0°C 15°C
Temperature
Output "AV"
Output voltage "AV"
at STE = 0V
10V
Displacement
through ST-E
"AV" max. 10V
0V
"FS" "FS" +6K
Temperature difference
FS
