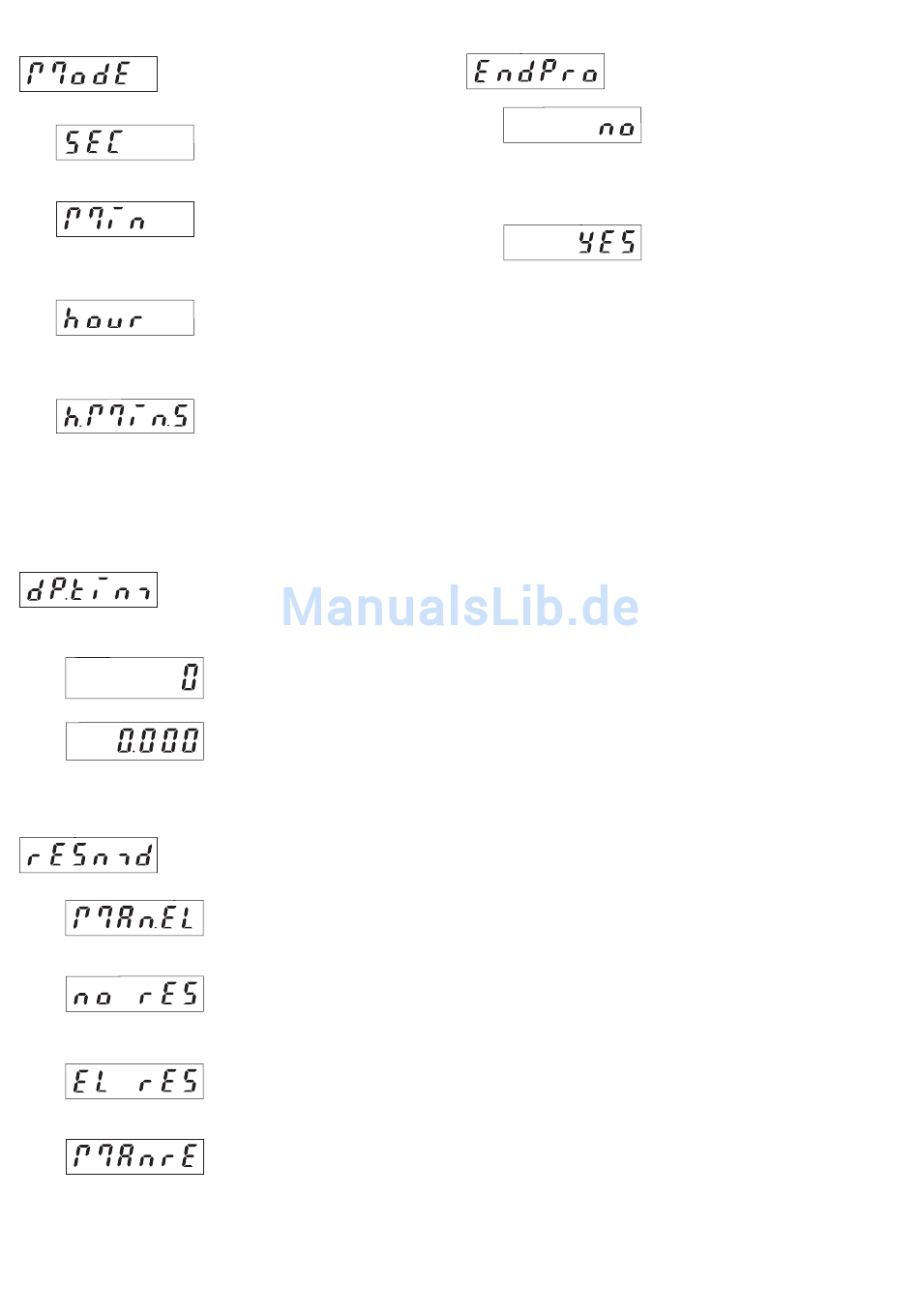

4.4 Operating mode
*0, 0.1, 0.01, 0.001 means: Counting in 0, 0.1,
0.01, 0.001 units of time
4.5 Decimal point
4.6 Reset mode
20
Timing in s (accuracy
depending on position of
the decimal point*)
Timing in min. (accuracy
depending on position of
the decimal point*)
Timing in h (accuracy
depending on position of
the decimal point*)
Timing in h:min:s (decimal
point will be ignored)
The decimal point defines
the resolution of the
displayed value.
0 1
0.0 1/10 (0.1)
0.00 1/100 (0.01)
0.000 1/1000 (0.001)
manual reset (red key)
and electrical reset
no reset
(red key and reset input
locked)
electrical reset only
manual reset only
4.7 End of programming
Programming routine will
be passed through once
again. All parameters can
be checked.
Programming routine will
be left and the new
parameters will be stored.
Afterwards the device is
ready to use.
