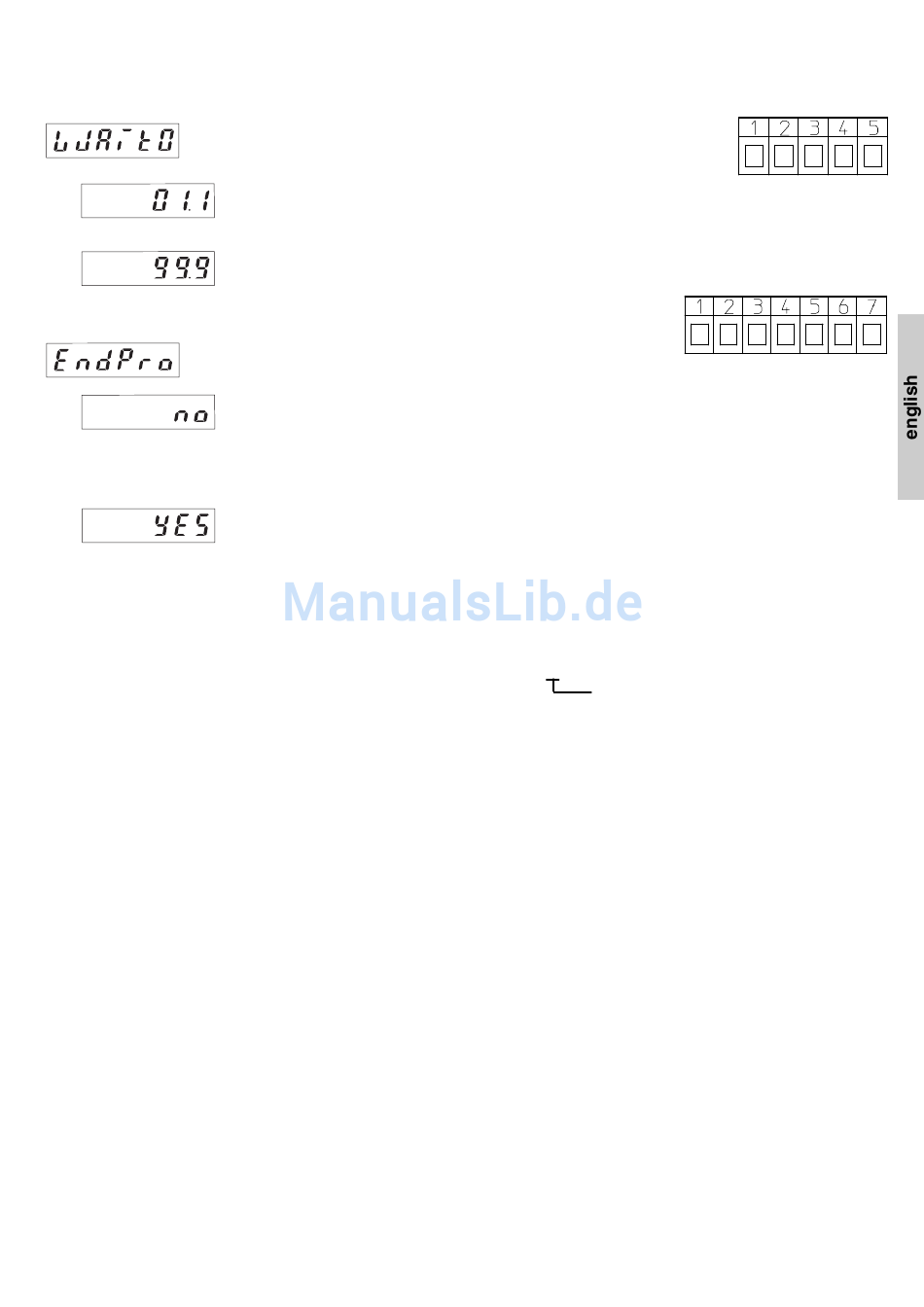

4.6 Max. time to wait until „0" is displayed
This parameter indicates, how long it takes at
active measuring, until „0" is displayed
4.7 End of programming
max. time to wait 01.1 s
(min. value)
max. time to wait 99.9 s
Programming routine will
be passed through once
again. All parameters can
be checked.
Programming routine will
be left and the new
parameters will be stored.
Afterwards the device is
ready to use.
5. Terminal assignment
5.1 Without optocoupler output
1 10-30 VDC
2 0 V (GND)
3 INP
4 ---
5 ---
5.2 With optocoupler output (npn)
1 10-30 VDC
2 0 V (GND)
3 INP
4 ---
5 ---
6 Emitter
7 Collector
6. Delivery includes:
- CODIX 522
- Panel mounting clip
- Bezel for screw mount, panel cut-out 50x25 mm
- Bezel for clip mount, panel cut-out 50x25 mm
- Sealing
7. Ordering code:
6.522.01X.300
Output
1 = Opto coupler
2 = no output
