EP40-D Installation Guide
pro.Bose.com
H C
ardware OnneCtiOns
The EP40-D accepts either unbalanced or balanced audio devices.
Refer to the following diagrams and instructions for connecting different
types of audio devices. Professional grade audio cabling is recom-
mended to achieve the best audio performance throughout the system.

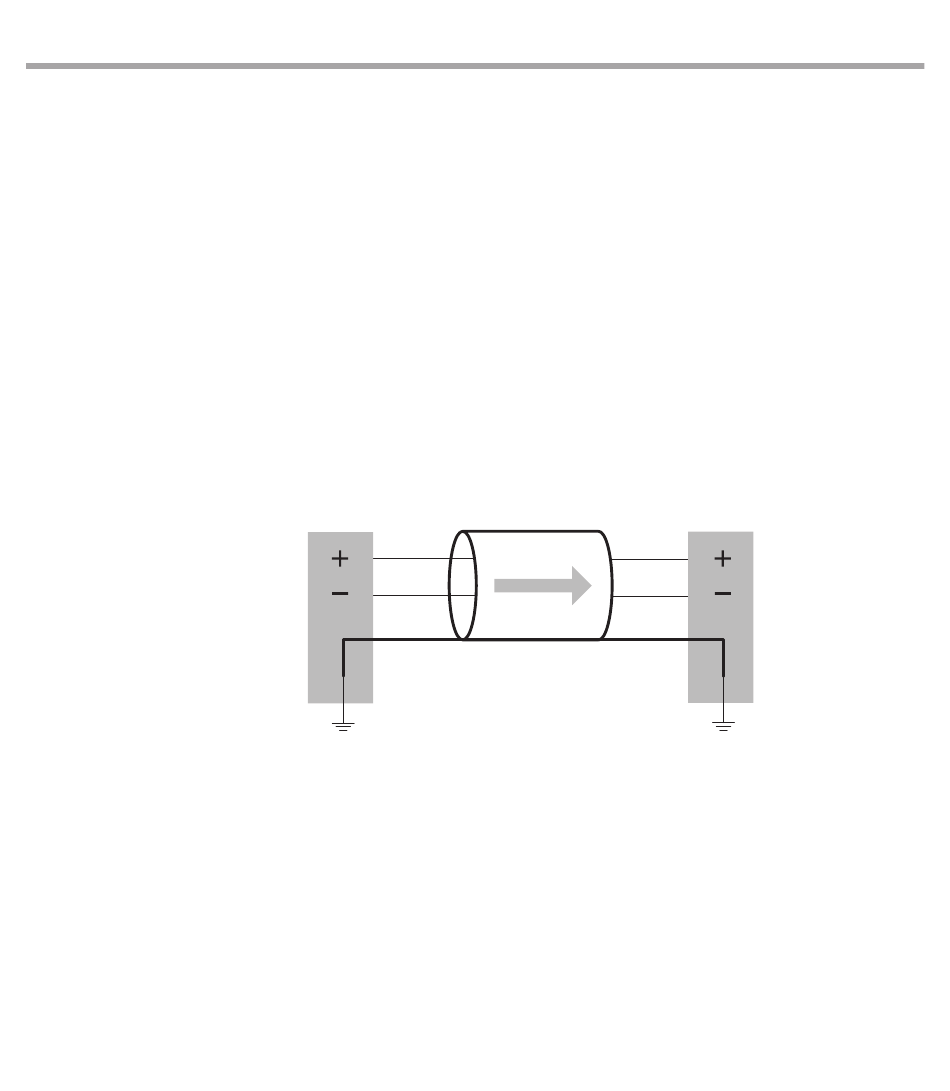

Input from a Balanced Source
To connect balanced sources to the EP40-D, connect positive output
to positive input, negative output to negative input, and connect the
grounds together through the cable shield.
Figure 3.
EP40-D
Input
Source
Balanced source
connection
Shield
