PRODUCT INSTALLATION

Installation Procedures

NOTE
Before installation, first remove 7-shape screws from the pole, remove the Spinner and
Plastic nut from the motor shaft, and then install.

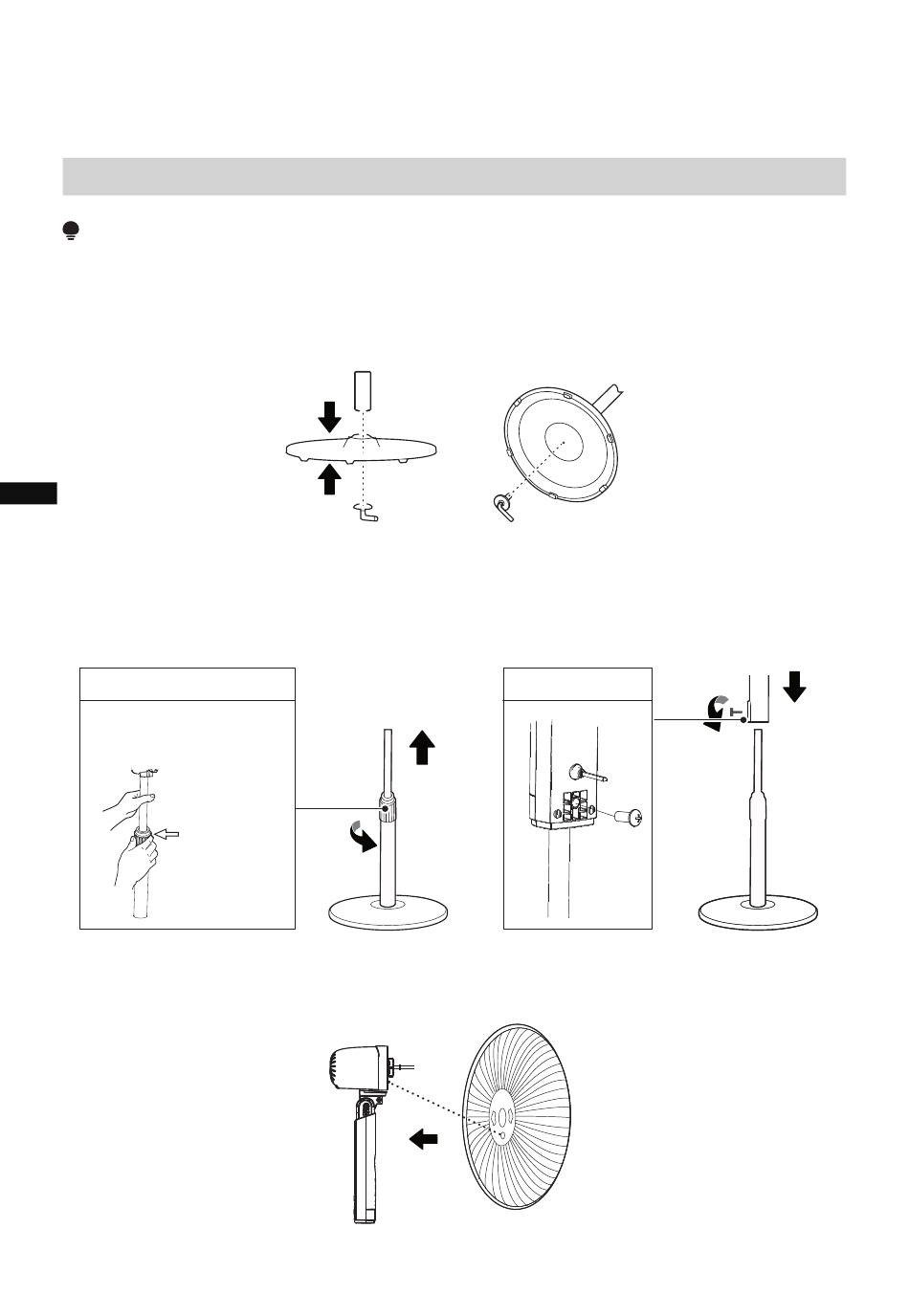

1 Chassis installation
Align the lower pole and the chassis, and then fasten securely with chassis screws.
EN
2 Pole installation
2.1 Pull out and fix the internal pole (column) after adjusting the height by way of
tightening or loosening the knob.
2.2 Install and fix the machine body by way of tightening or loosening tighten knob.
Height Adjustment
Turn counterclockwise
and loosen for performing
height adjustment.
Height
Adjustment
Key
3 Installation of Rear Grill
Align the holes of rear grill with the protruded points on the motor housing.
Clockwise
Install Knob
