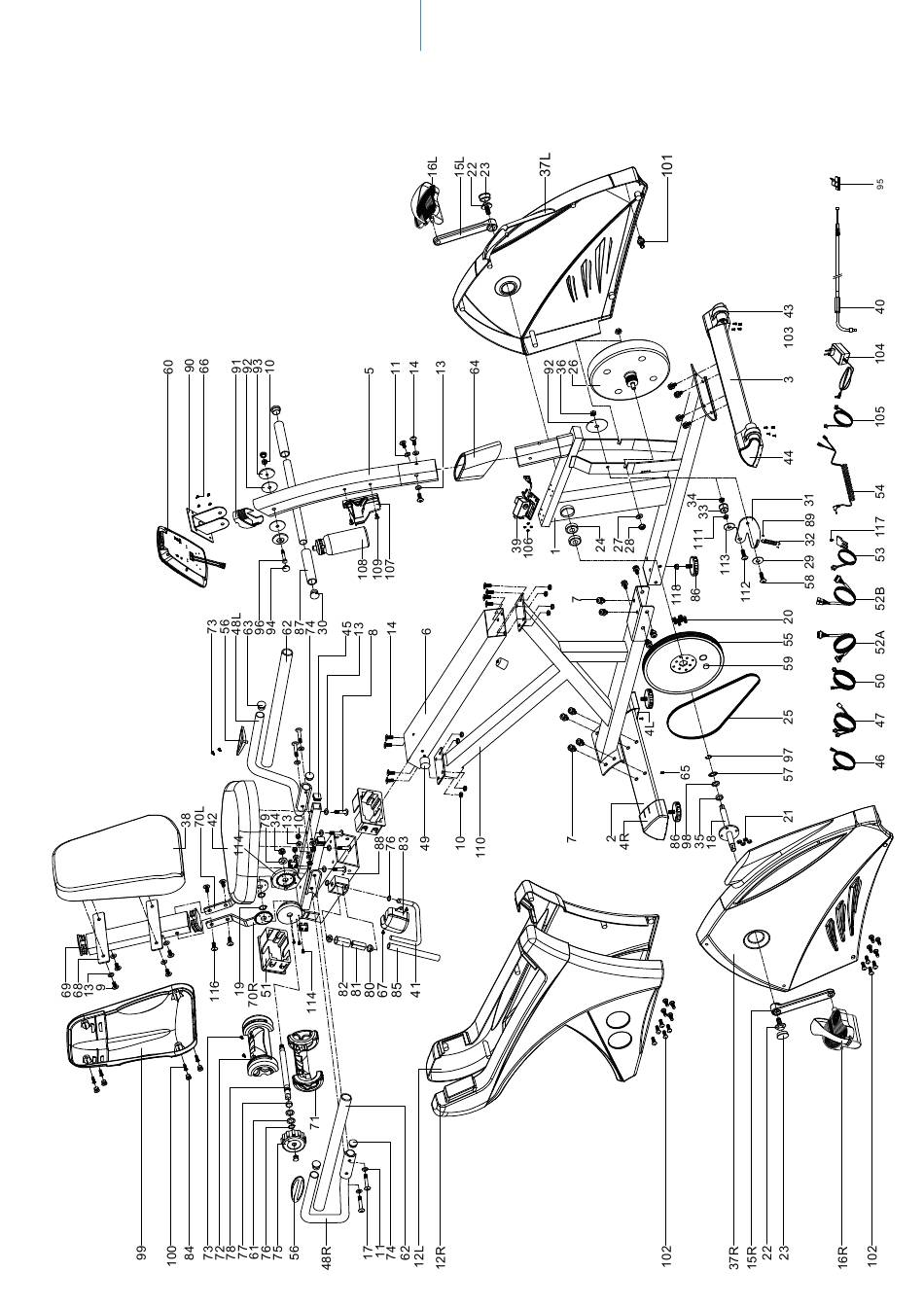

EXPLOSION DRAWING

In case of mechanical problems use this explosion
drawing. All parts are marked with a specific part number
in it. Tell us this number in order to replace the respec-
tive part (within warrany time this service may be free of
charge).
If necessary, you may additionally use the free user
manual in pdf-format, available on www.skandika.com.
You may enlarge the explosion drawing there with a factor
up to 500 %.
