ENG

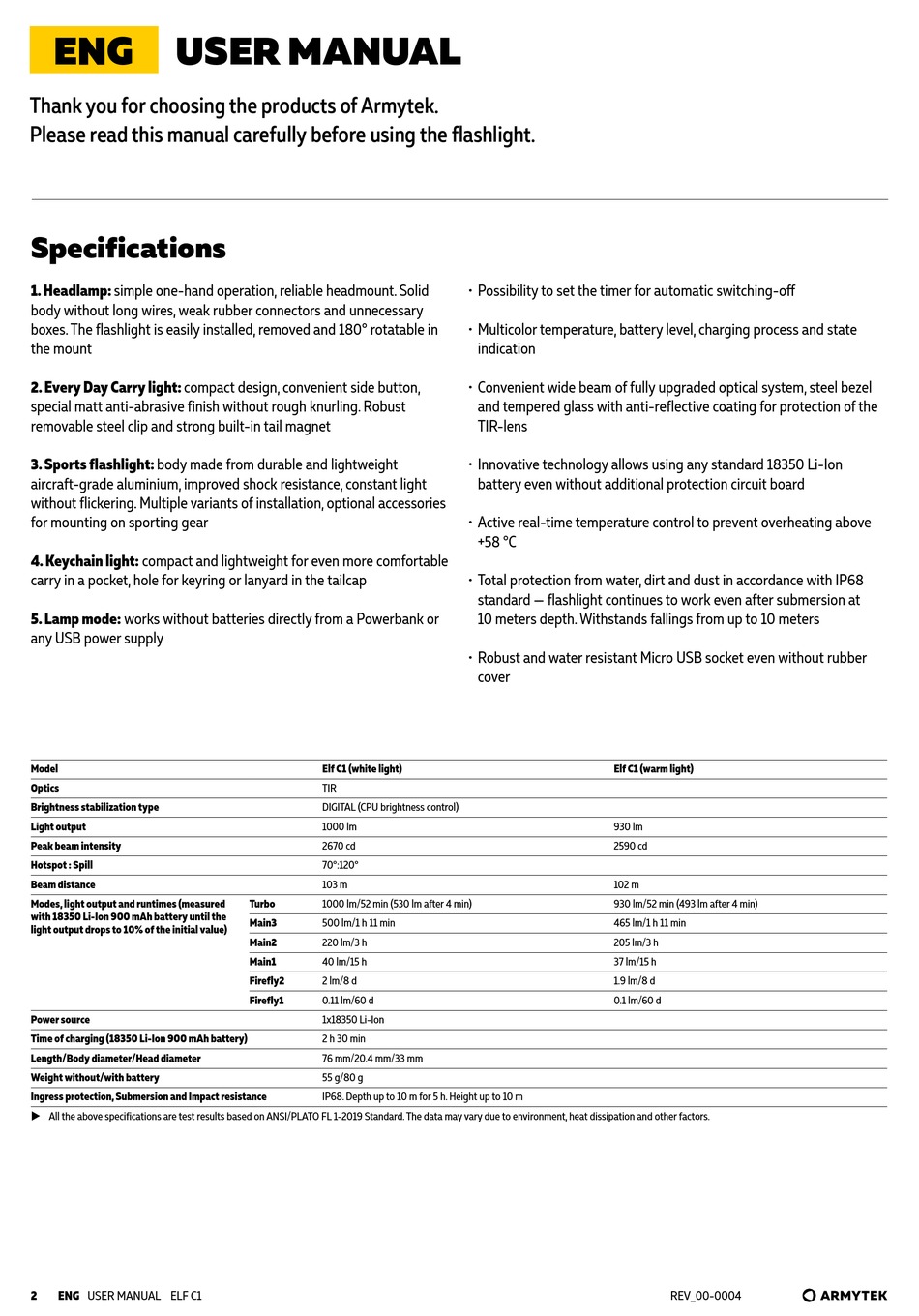

USER MANUAL
Thank you for choosing the products of Armytek.
Please read this manual carefully before using the flashlight.
Specifications
1. Headlamp: simple one-hand operation, reliable headmount. Solid
body without long wires, weak rubber connectors and unnecessary
boxes. The flashlight is easily installed, removed and 180° rotatable in
the mount
2. Every Day Carry light: compact design, convenient side button,
special matt anti-abrasive finish without rough knurling. Robust
removable steel clip and strong built-in tail magnet
3. Sports flashlight: body made from durable and lightweight
aircraft-grade aluminium, improved shock resistance, constant light
without flickering. Multiple variants of installation, optional accessories
for mounting on sporting gear
4. Keychain light: compact and lightweight for even more comfortable
carry in a pocket, hole for keyring or lanyard in the tailcap
5. Lamp mode: works without batteries directly from a Powerbank or
any USB power supply
Model
Optics
Brightness stabilization type
Light output
Peak beam intensity
Hotspot : Spill
Beam distance
Modes, light output and runtimes (measured
with 18350 Li-Ion 900 mAh battery until the
light output drops to 10% of the initial value)
Power source
Time of charging (18350 Li-Ion 900 mAh battery)
Length/Body diameter/Head diameter
Weight without/with battery
Ingress protection, Submersion and Impact resistance
X All the above specifications are test results based on ANSI/PLATO FL 1-2019 Standard. The data may vary due to environment, heat dissipation and other factors.
2
ENG USER MANUAL ELF C1
Elf C1 (white light)
TIR
DIGITAL (CPU brightness control)
1000 lm
2670 cd
70°:120°
103 m
Turbo
1000 lm/52 min (530 lm after 4 min)
Main3
500 lm/1 h 11 min
Main2
220 lm/3 h
Main1
40 lm/15 h
Firefly2
2 lm/8 d
Firefly1
0.11 lm/60 d
1x18350 Li-Ion
2 h 30 min
76 mm/20.4 mm/33 mm
55 g/80 g
IP68. Depth up to 10 m for 5 h. Height up to 10 m
• Possibility to set the timer for automatic switching-off
• Multicolor temperature, battery level, charging process and state
indication
• Convenient wide beam of fully upgraded optical system, steel bezel
and tempered glass with anti-reflective coating for protection of the
TIR-lens
• Innovative technology allows using any standard 18350 Li-Ion
battery even without additional protection circuit board
• Active real-time temperature control to prevent overheating above
+58 °C
• Total protection from water, dirt and dust in accordance with IP68
standard — flashlight continues to work even after submersion at
10 meters depth. Withstands fallings from up to 10 meters
• Robust and water resistant Micro USB socket even without rubber
cover
Elf C1 (warm light)
930 lm
2590 cd
102 m
930 lm/52 min (493 lm after 4 min)
465 lm/1 h 11 min
205 lm/3 h
37 lm/15 h
1.9 lm/8 d
0.1 lm/60 d
REV_00-0004
