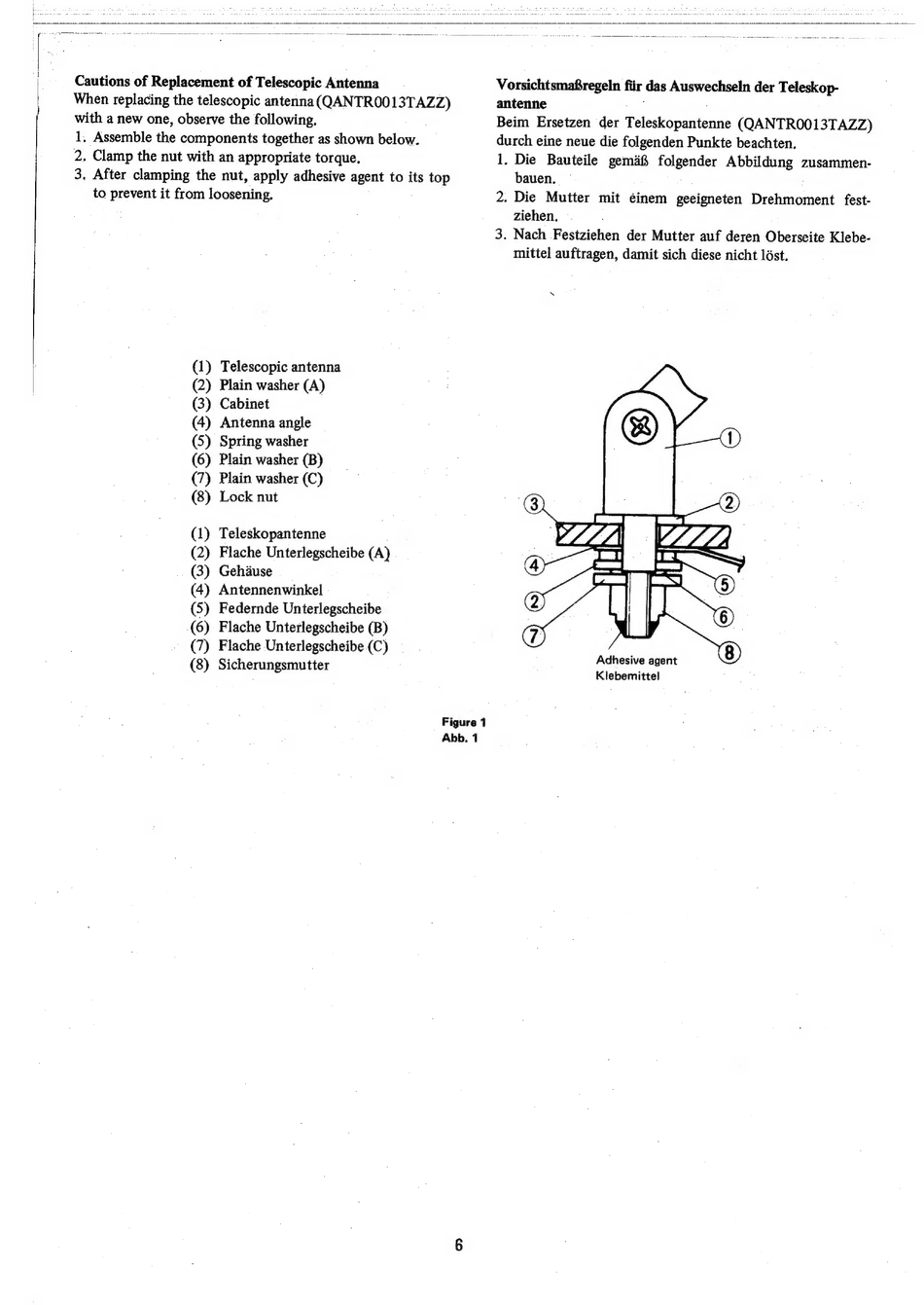

Cautions of Replacement of Telescopic Antenna
with a new one, observe the following.
1, Assemble the components together as shown below.
2. Clamp the nut with an appropriate torque.
to prevent it from loosening.
(1) Telescopic antenna
(2) Plain washer (A)
(3) Cabinet
(4) Antenna angle
(5) Spring washer
(6) Plain washer (B)
(7) Plain washer (C)
(8) Lock nut
(1) Teleskopantenne
(2) Flache Unterlegscheibe (A)
(3) Gehduse
(4) Antennenwinkel
(5) Federnde Unterlegscheibe
(6) Flache Unterlegscheibe (B)
(7) Flache Unterlegscheibe (C)
(8) Sicherungsmutter
Figure 1
Abb. 1
antenne
Adhesive agent
Klebemittel
