OPERATING INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
Before you start assembling the unit, please check that all the specified parts are present. Some of the assembly steps
person assist you in .
require heavy lifting. It is recommended that you have another setting up this product

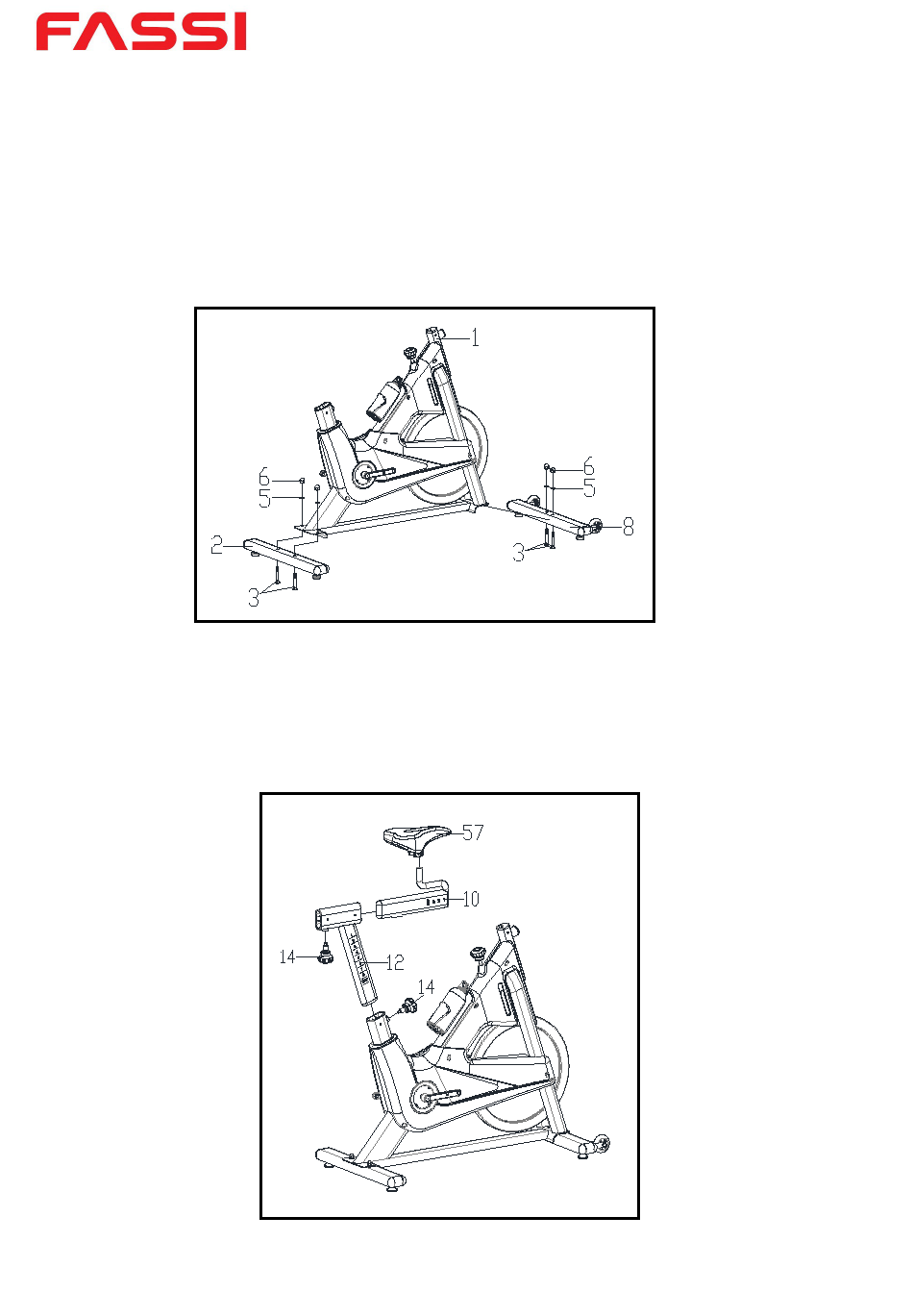

STEP 1
:
Attach the front cross support ( 8) to the main frame ( 1) using two sets of Ø8 washers ( 5), M8 cap nuts ( 6) and
M8*52 carriage bolts ( 3).
Fasten the rear cross support ( 2) to the main frame ( 1) with two sets of Ø8 washers
STEP 2
Insert the vertical seat post ( 12) into the seat post tube of the main frame. Loosen the adjustment knob (14) and pull it
forward. Then select the desired height. Release the knob and tighten it again. Insert the seat post ( 10) into the vertical seat
post ( 12) and lock it with the knob ( 14).The saddle ( 57) is attached to the seat post ( 10) with the nuts of the seat.
