ENGLISH
The device is controlled by means of a special control panel. Its functions are described below. It is possible to pair use
with a VORTICE pre-heater and post-heater. These devices shall be installed by an installer. The minimum distance of the
heaters from the device is 500 mm.

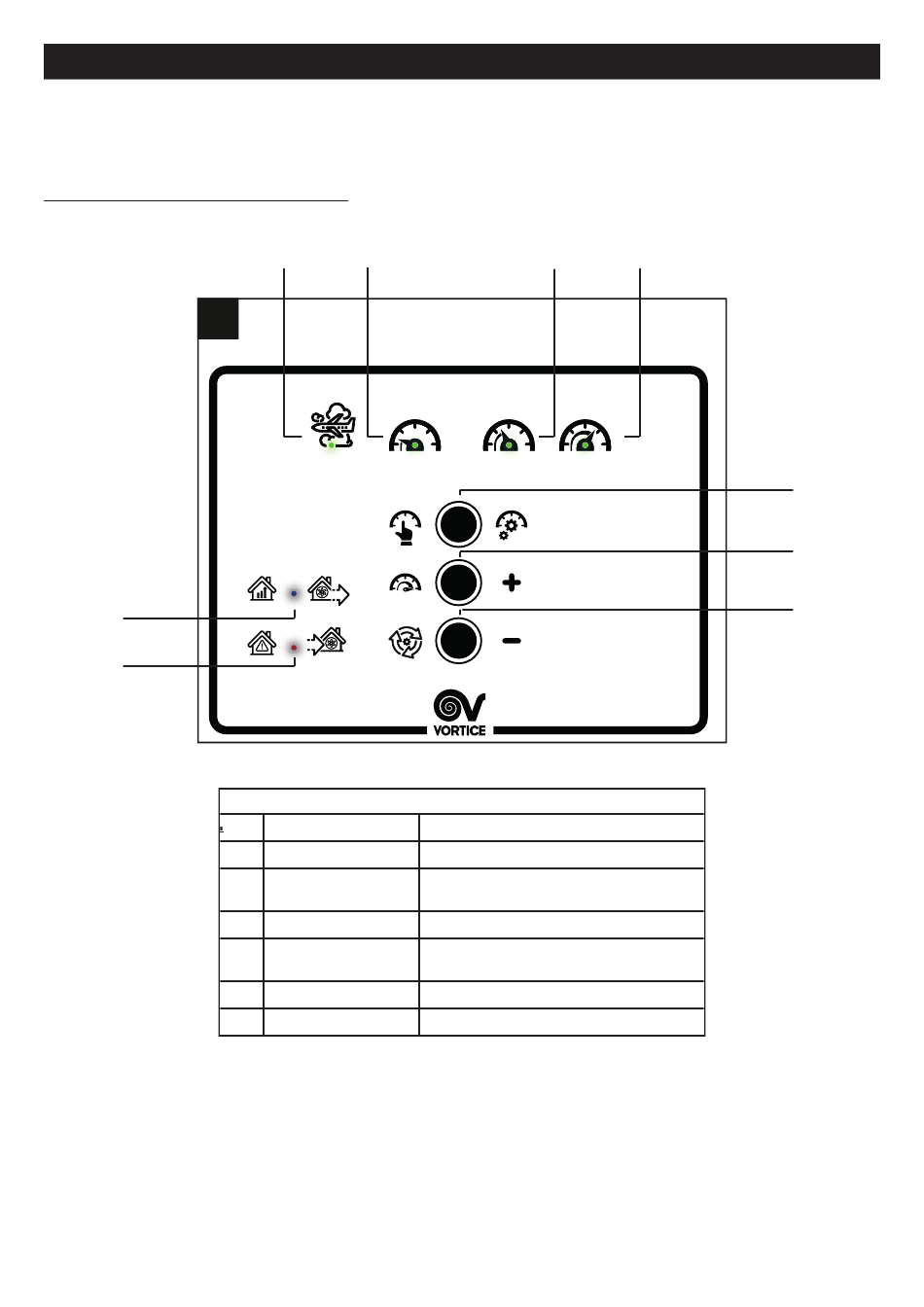

User/installer panel functions

13 13
5
6
The panel allows the appliance to operate in the user mode and in the installer mode (see below)
1 2
User
1 Holiday mode
2 Minimum speed
3
Medium speed
4
Maximum speed
5
Bypass LED
6
Alarm LED
3
LED
Installer
Not used
- If on with 6 LED Vmin supply mode
- If on with 5 LED Vmin exhaust
Not used
- If on with 6 LED Vmax supply mode
- If on with 5 LED Vmax exhaust mode
see LED 2 and 4
see LED 2 and 4
4
A
B
C
39
