Montage | Montage | Instructions BS Plus 160 / 200
3.

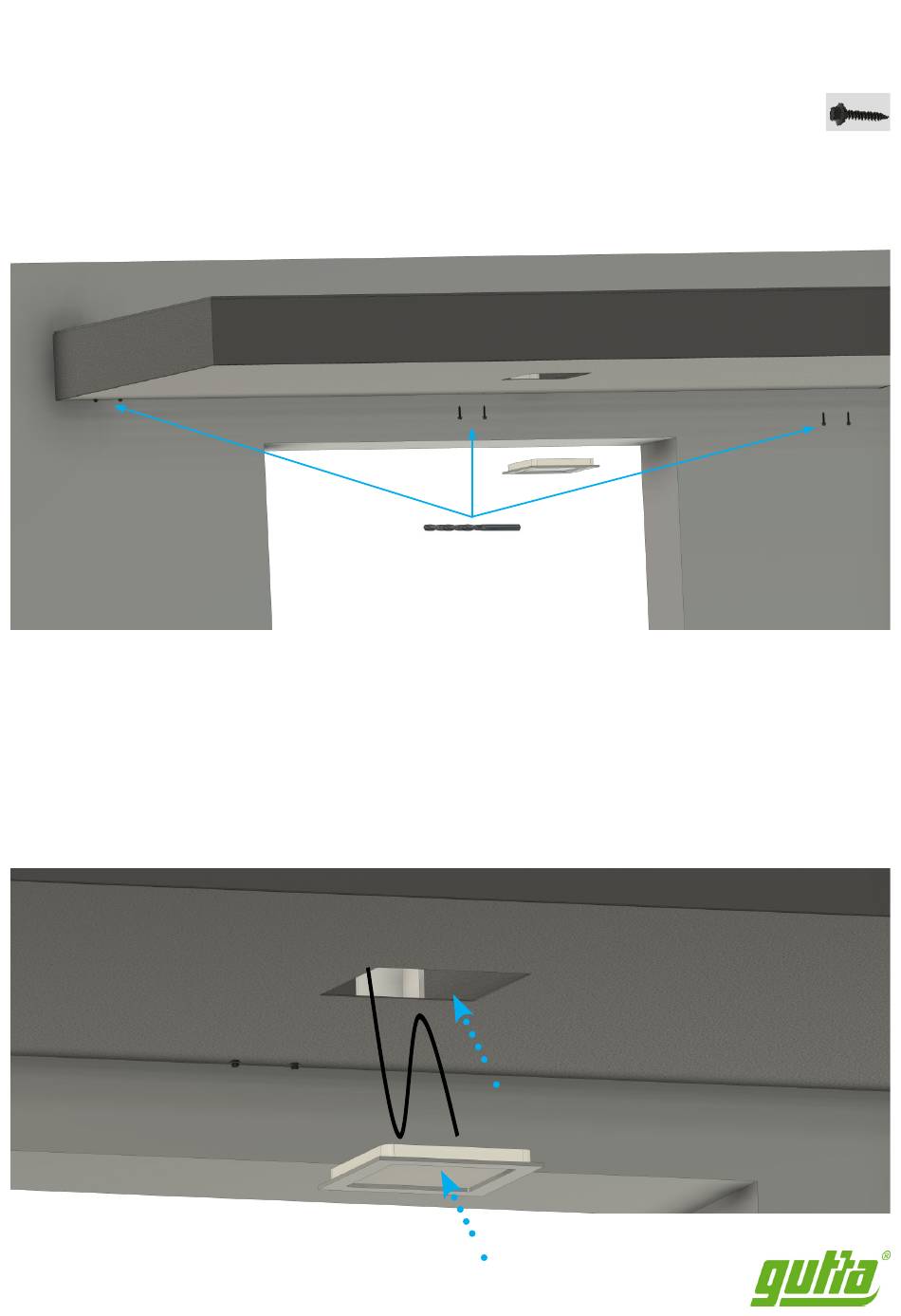

Befestigung von unten / Fastening from below / Fixation par le bas
1. Bohren Sie die Löcher mit einen Bohrer 3,5mm vor. /
Pre-drill the holes with a 3.5 mm drill bit / Pré-percer les trous avec une mèche de 3,5 mm
2. Setzen Sie die Schrauben wie angezeigt /
Insert the screws as indicated / Insert rer les vis comme indiqué
4.
Anschluss LED Panel / Power connection for LED /
Connexion d'alimentation pour LED Panel
Klemmen Sie das LED Panel an das Stromkabel und befestigen Sie dieses wieder am Vordach.
Connect the LED panel to the power cable and reattach it to the canopy.
Connectez le panneau DEL au câble d'alimentation et rebranchez-le à la verrière.
BS 160 - 4 x
BS 200 - 6 x
