Wireless Pairing
Reference Subwoofer Series
LEFT
1938 N. Batavia St. Suite K
Orange, CA 92865
LINE IN
Fraunhoferstraße 16
24118 Kiel
Deutschland
www.elac.com RIGHT
WIRELESS
LFE PAIR/RESET VOLUME

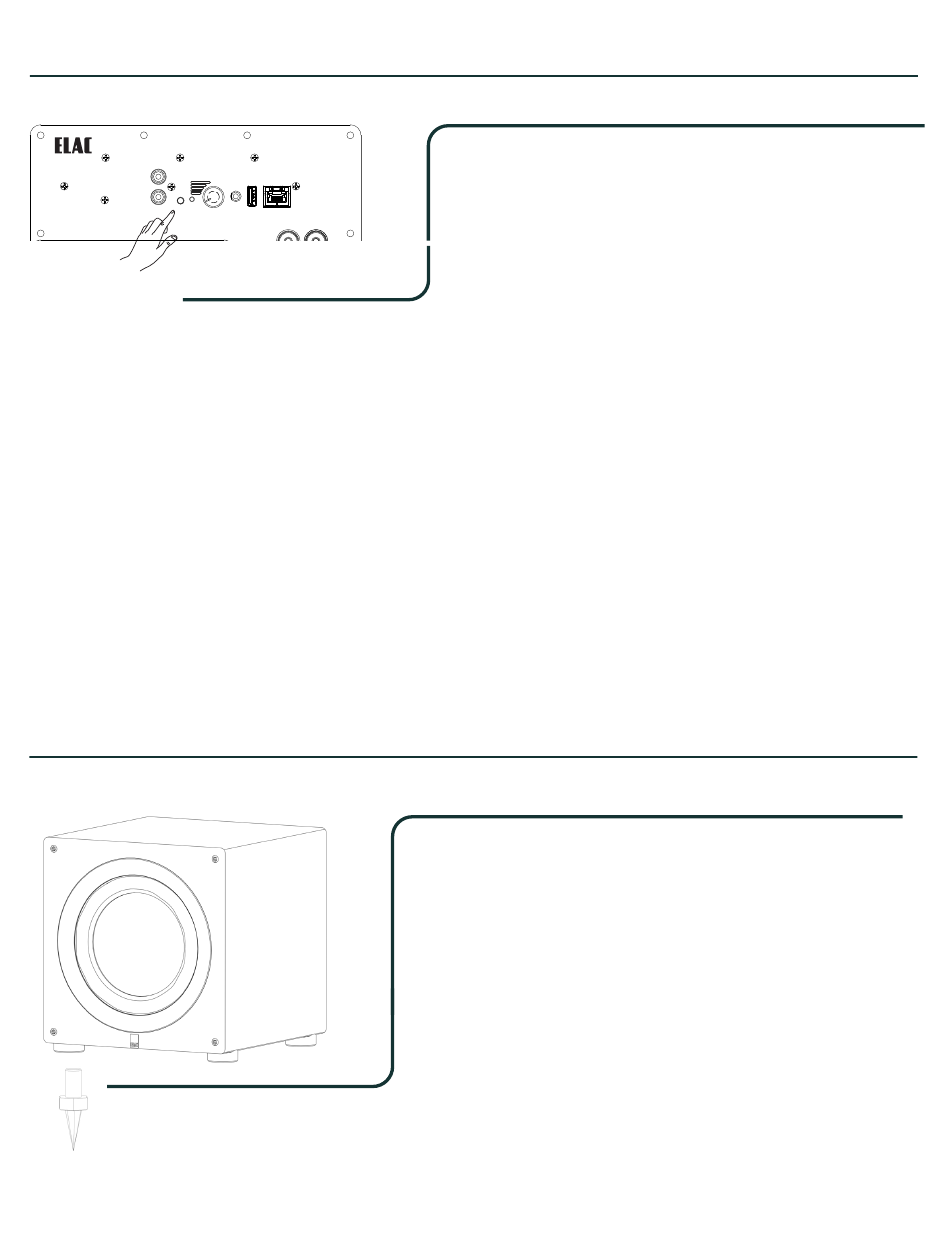

Pairing the wireless transmitter with other AirX2 products is very simple. Please follow the below steps
to complete the process.
1. Press and hold the Wireless Pair button on the subwoofer until the LED begins to flash rapidly
(Around 2 times per second).
2. Press and hold the Wireless Pair button on the bottom of the AirX2 transmitter until the wireless pair
LED on the subwoofer stops flashing and stays solid blue. A solid blue LED means the subwoofer
paired properly. The LED being off means the subwoofer did not pair and please try again.
3. Repeat with additional subwoofers (Up to 3 units)
Optional Spike Installation
1. Attach the spikes by screwing them into the threaded inserts on each of the four cor-
ners on the bottom of the subwoofer.
2. The nut on the spike is used to the lock the spike at the desired height.
Reference Subwoofer RS500 RS700 | www.elac.com
Model : RS700-SB
SERVICE ETHERNET
12V
TRIGGER
LEFT
SPEAKER LEVEL
INPUTS
RIGHT
THIS DEVICES COMPLIES WITH PART 15 OF THE FCC RULES
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
1 THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE
2 THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATIONS
CONTAINS FCC ID: A8TBM70ABCDEFGH
CONTAINS IC ID: 12246A-BM70BLES1F2
CONTAINS FCC ID: NKR-SWA12
CANTAINS IC: 4441A-SWA12
CAN ICES-3(B)/NMB-3(B)
SERIAL NUMBER
POWER
ON
Desinged by Elac
Made in China
OFF
T6.3A L 250V
100-120
220-240 VAC
50/60Hz 6.3A
Note:
This subwoofer has a built in wireless receiver intented
to work with ELAC AirX2 transmitter.
Included with your subwoofer are four optional spikes that
can be used` when the subwoofer is used on carpet.
If you are installing the subwoofer onto hardwood, tile or
other non-carpeted surfaces please use spike discs (Not
included), or do not install the spikes to prevent any dam-
age to your floor.
