SFA Sanicom Bedienungs- Und Installationsanleitung Seite 7

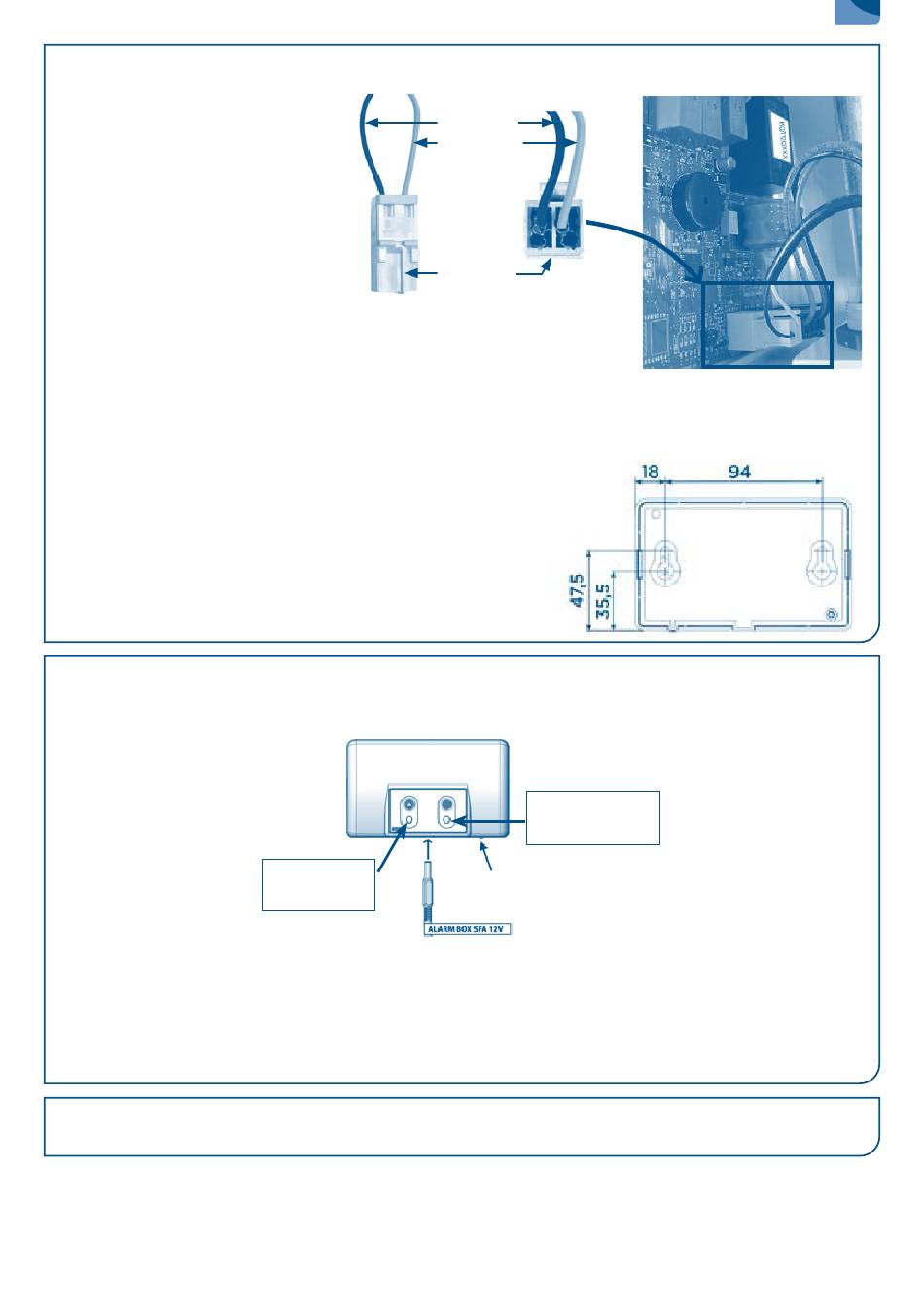

Open the drawer of the male plus housing and push the terminals into it until they click into place, always respecting the
position of the wires according to their colour: plug housing drawer downwards, the black wire terminal is on the left, the
white wire terminal is on the right.
Close the plug housing drawer.
Push the male plug housing into the
female plug housing of the board. Pull the
card slightly out of its slot if necessary.
Replace the control box cover and replace the screw.
Connect the other end (jack plug) to the wired alarm box.
Switch the Sanicom® device back on.
FIXING TO THE WALL
For wall mounting of the unit, use the following image as a guide (in mm):
3. OPERATION
The Sanicom® alarm unit does not require a separate power supply. The power is supplied through the Sanicom®. In case of
power failure, the alarm unit's battery takes over.
1/ The red general alarm LED reproduces the operation of the corresponding LED on the SANICUBIC® control panel. The
alarm unit sounds as long as the fault is present. To stop the alarm, press the reset (*) button on the device's keypad or the
button under the alarm unit.
2/ The yellow «mains» LED indicates the power supply status of the alarm unit :
- steadily glowing light = live Sanicom® connected to the mains supply
- flashing = power failure on the Sanicom®.
3/ The alarm box can be completely switched off by a long press on the reset button (*).
4. GUARANTEE
2 years guarantee as from its date of purchase subject to correct installation and correct use.
Black wire
White wire
Red LED :
alarme
Closed
drawer
Yellow LED :
mains supply
(*) Reset
7
EN
