CAISSON VI-D4 Bedienungsanleitung Seite 6

How to use guide:

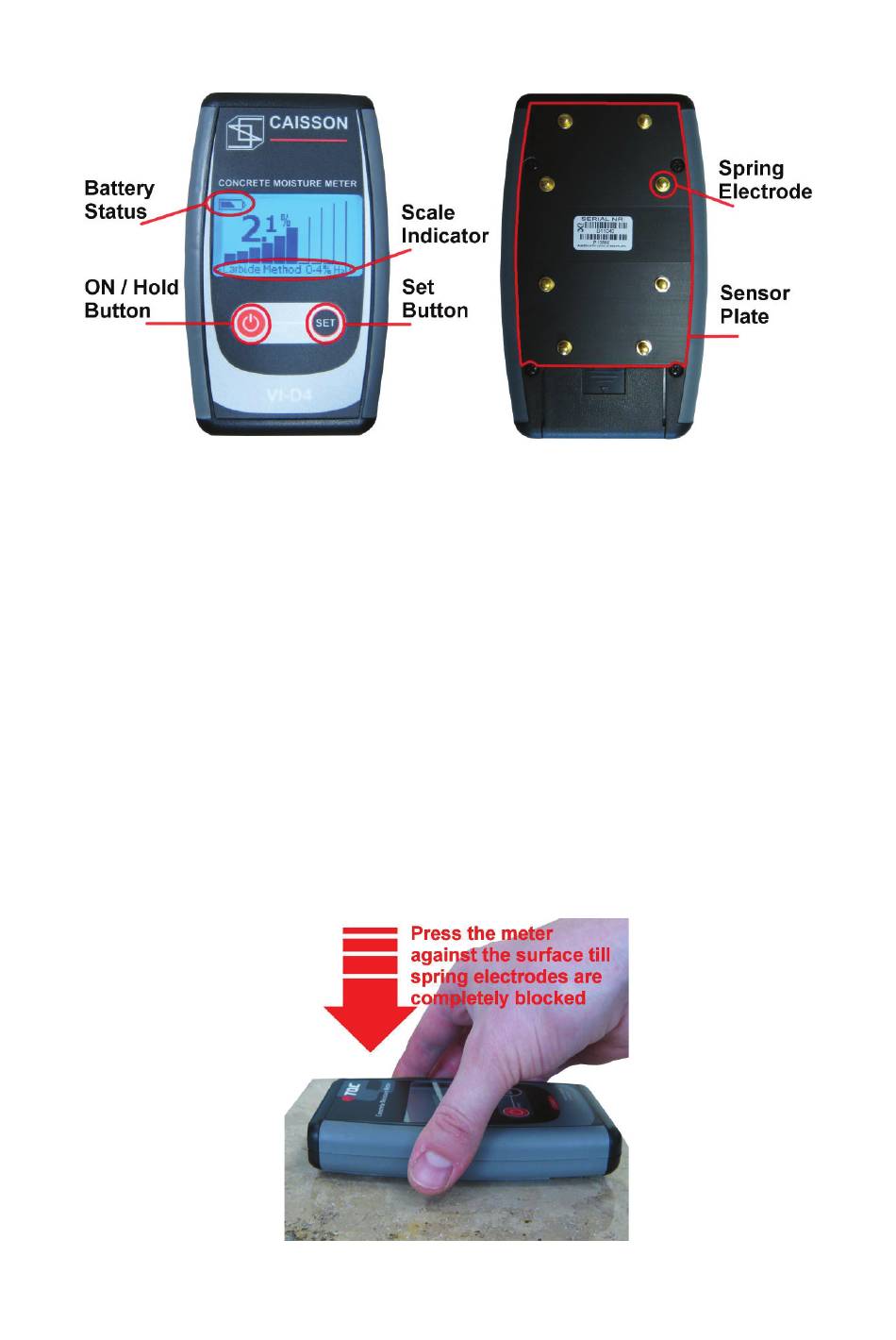

Picture below illustrates meter's front and back panel with most important elements marked:
• To turn on the meter press ON/HOLD button.
• To set the scale press SET button. There are 4 available scales:
1. Concrete
2. ~ Carbide Method 0-6% H
3.
Relative Scale
4. Caisson Scale
Name of chosen scale will appear in the scale indicator field.
To see detailed description of each scale go to Available scales section.
• To set the mode of measurement press ON/HOLD button. There are 2 available modes:
1. Normal
2. Max. Hold
The display color will change depending on which mode was chosen.
To see detailed description of each mode go to Modes & functions section.
• To make a measurement press the meter against the tested surface until all spring electrodes are completely
blocked.
!
Caution: Do not press the device too intensely as this may harm the electrodes.
!
Caution: Fingers SHOULD NOT touch the sensor plate and electrodes while measuring.
The meter should be held in the middle while measuring ( see picture below ).
It is recommended to repeat the measurement in a few points situated next to each other as humidity has a
tendency of uneven distribution. If the measurements vary, only the highest outcomes should be used.
• To switch off the meter press ON/HOLD button for around 2 seconds.
0-6% H O
2
O
2
0-100%
m
0.3-15.3
