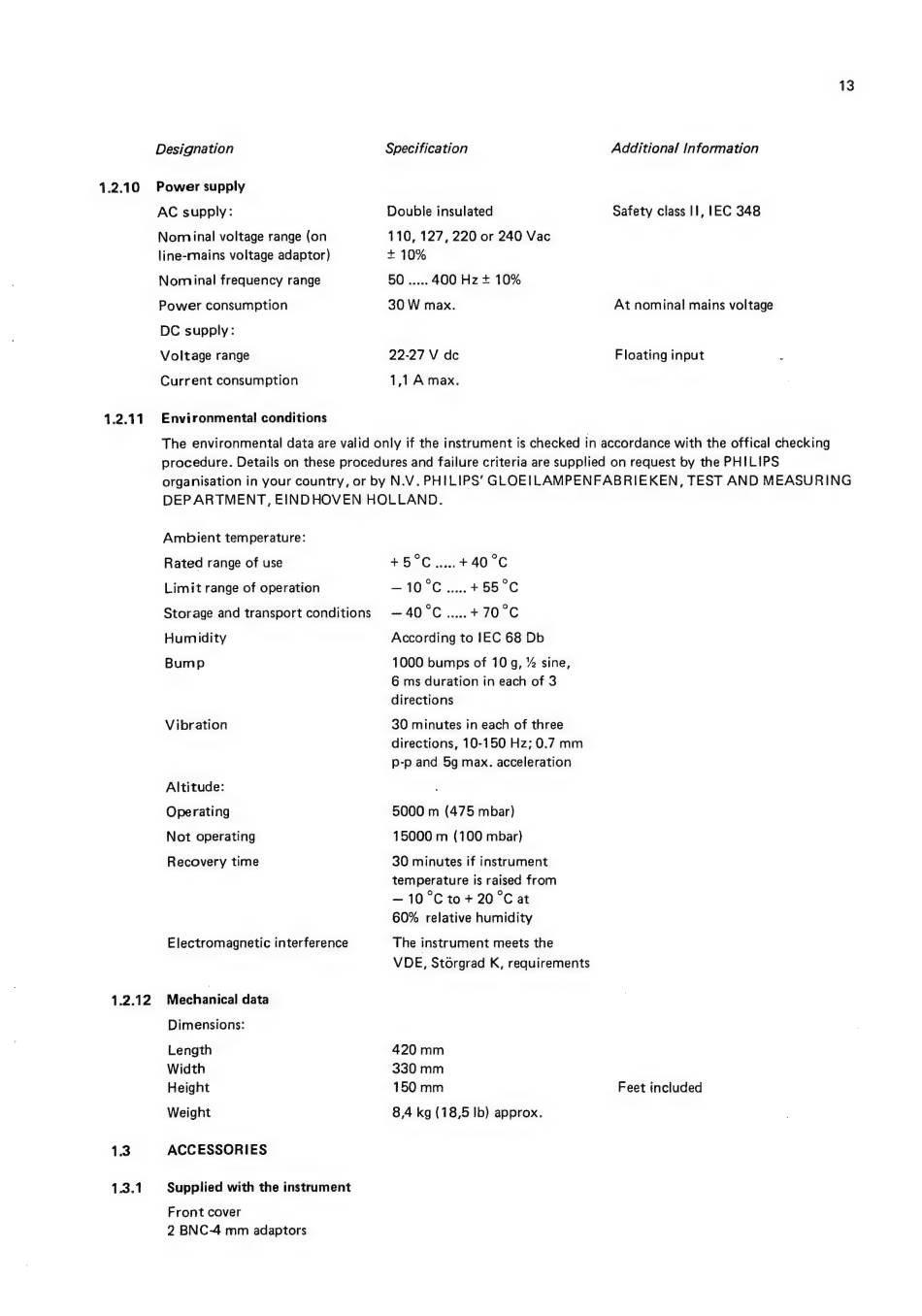

Power Supply; Environmental Conditions; Mechanical Data; Accessories - Philips PM 3214 Anleitung

1.2.10
1.2.11
1.2.12
1.3
1.3.1
Designation
Power supply
AC supply:
Nominal voltage range (on
line-rmains voltage adaptor)
Nominal frequency range
Power consumption
DC supply:
Voltage range
Current consumption
Environmental conditions
13
Specification Additional Information
Double insulated
110, 127, 220 or 240 Vac
Safety class Il, IEC 348
+ 10%
5O ..... 400 Hz+ 10%
30 W max. At nominal mains voltage
22-27 V dc Floating input
1,1 A max.
The environmental data are valid only if the instrument is checked in accordance with the offical checking
procedure. Details on these procedures and failure criteria are supplied on request by the PHILIPS
organisation in your country, or by N.V. PHILIPS' GLOEILAMPENFABRIEKEN, TEST AND MEASURING
DEPARTMENT, EINDHOVEN HOLLAND.
Ambient temperature:
Rated range of use
Limit range of operation
Storage and transport conditions
Humidity
Bump
Vibration
Altitude:
Operating
Not operating
Recovery time
Electromagnetic interference
Mechanical data
Dimensions:
Length
Width
Height
Weight
ACCESSORIES
Supplied with the instrument
Front cover
2 BNC-4 mm adaptors
+5°C.....+ 40°C
—10°C .....+ 55°C
~ 40°C .....+.70°C
According to IEC 68 Db
1000 bumps of 10g, % sine,
6 ms duration in each of 3
directions
30 minutes in each of three
directions, 10-150 Hz; 0.7 mm
p-p and 5g max. acceleration
5000 m (475 mbar)
15000 m (100 mbar)
30 minutes if instrument
temperature is raised from
— 10°C to + 20 °C at
60% relative humidity
The instrument meets the
VDE, Storgrad K, requirements
420 mm
330 mm
150 mm
8,4 kg (18,5 Ib) approx.
Feet included
