which is connected to the running rails - see Figure
You can use any piece of C Track as the feeder track.
Plug the power cord (1) for the transformer into the wall
outlet for your household current.
6. Operation
6.1 Delta Addresses
The controler can identify a total of 4 addresses.
1 = 78
2 = 72
3 = 60
4 = 24
2 Locomotive Address
The locomotive addresses are set at the factory. The
addresses are given in the instructions for each locomo-
tive. These addresses are not binding; they can be
changed by following the instructions for the locomotive.
If you want to control a locomotive with the controller
in this set, an address must be set for the locomotive,
which can be selected with the controller. These ad-
dresses are:
.
Setting on the Address Selection

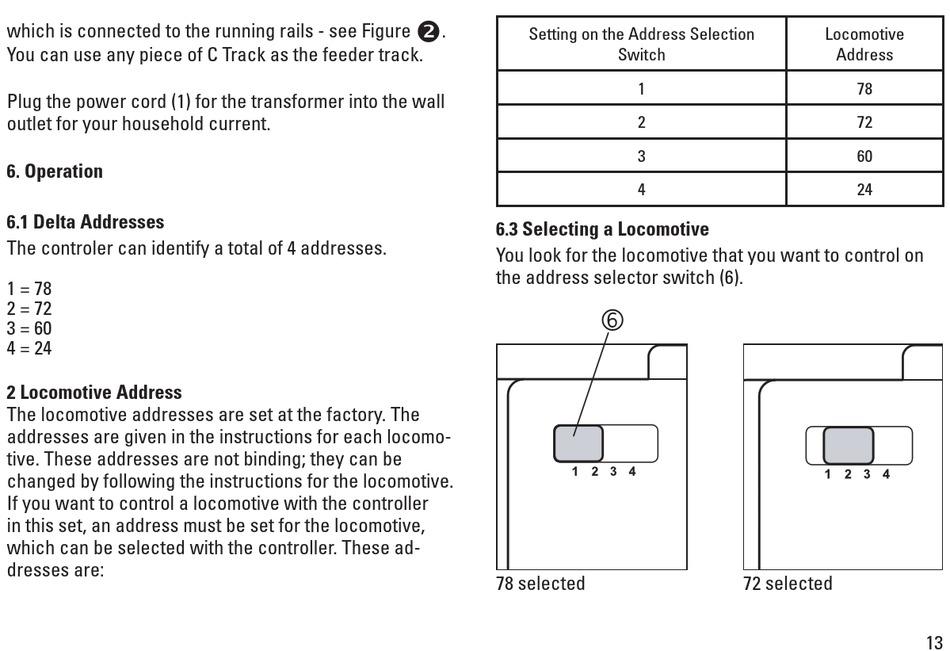

6.3 Selecting a Locomotive
You look for the locomotive that you want to control on
the address selector switch (6).
78 selected
Switch
1
2
3
4
72 selected
Locomotive
Address
78
72
60
24
13
