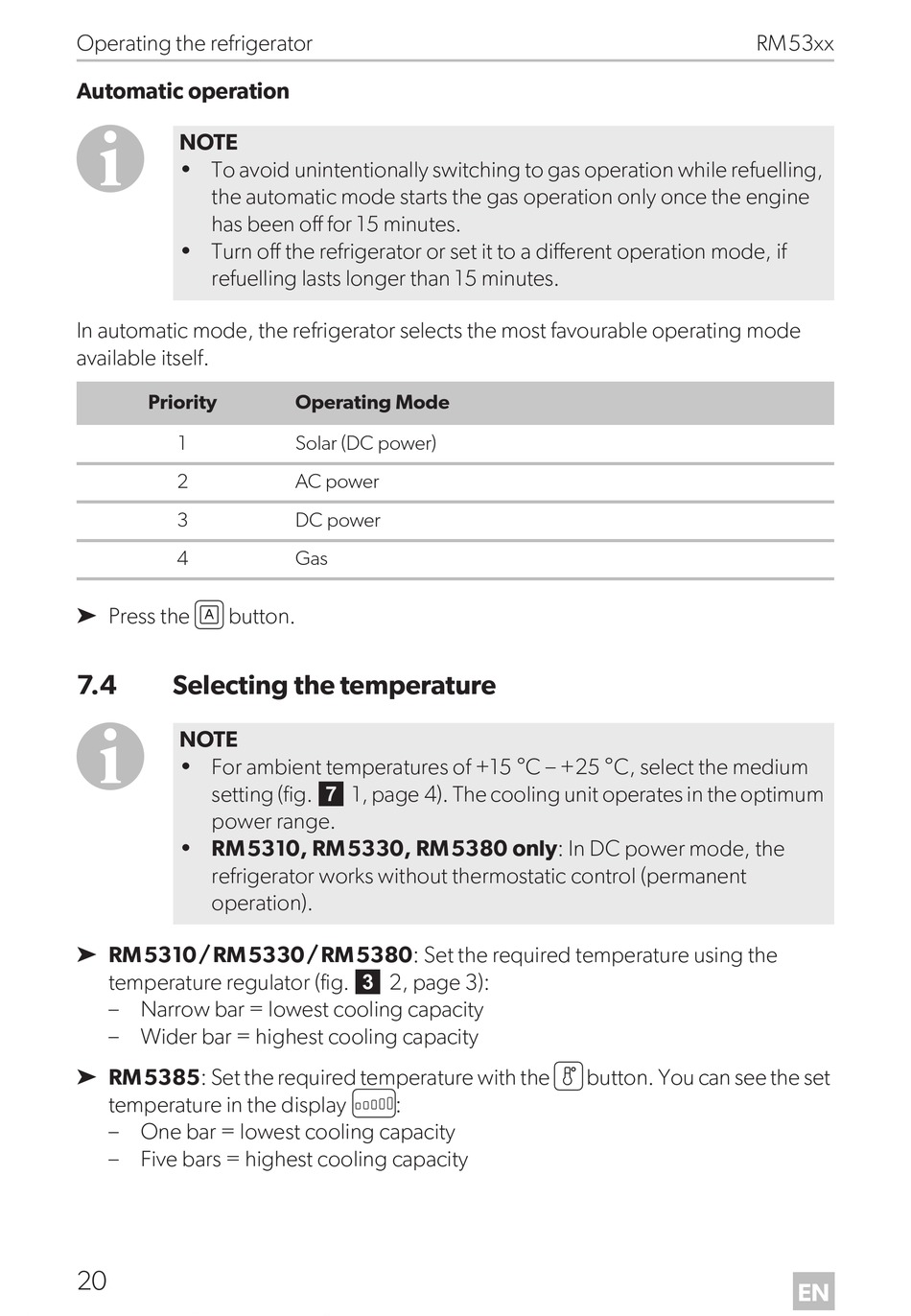

Operating the refrigerator
Automatic operation
I
NOTE
• To avoid unintentionally switching to gas operation while refuelling,
the automatic mode starts the gas operation only once the engine
has been off for 15 minutes.
• Turn off the refrigerator or set it to a different operation mode, if
refuelling lasts longer than 15 minutes.
In automatic mode, the refrigerator selects the most favourable operating mode
available itself.
Priority
1
2
3
4
➤ Press the
button.
7.4

Selecting the temperature

I
NOTE
• For ambient temperatures of +15 °C – +25 °C, select the medium
setting (fig. 7 1, page 4). The cooling unit operates in the optimum
power range.
• RM5310, RM5330, RM5380 only: In DC power mode, the
refrigerator works without thermostatic control (permanent
operation).
➤ RM5310/RM5330/RM5380: Set the required temperature using the
temperature regulator (fig. 3 2, page 3):
– Narrow bar = lowest cooling capacity
– Wider bar = highest cooling capacity
➤ RM5385: Set the required temperature with the
temperature in the display
– One bar = lowest cooling capacity
– Five bars = highest cooling capacity
20
Operating Mode
Solar (DC power)
AC power
DC power
Gas
:
RM53xx
button. You can see the set
EN
