Battery Service (continued)

Installing the Battery

1. Position the battery in the tray.
2. Using the fasteners previously removed, install the positive (red) battery cable to the
positive (+) battery terminal.
3. Using the fasteners previously removed, install the negative battery cable to the
negative (-) battery terminal.
4. Slide the red terminal boot onto the positive (red) battery post.
5. Secure the battery with the hold-down.

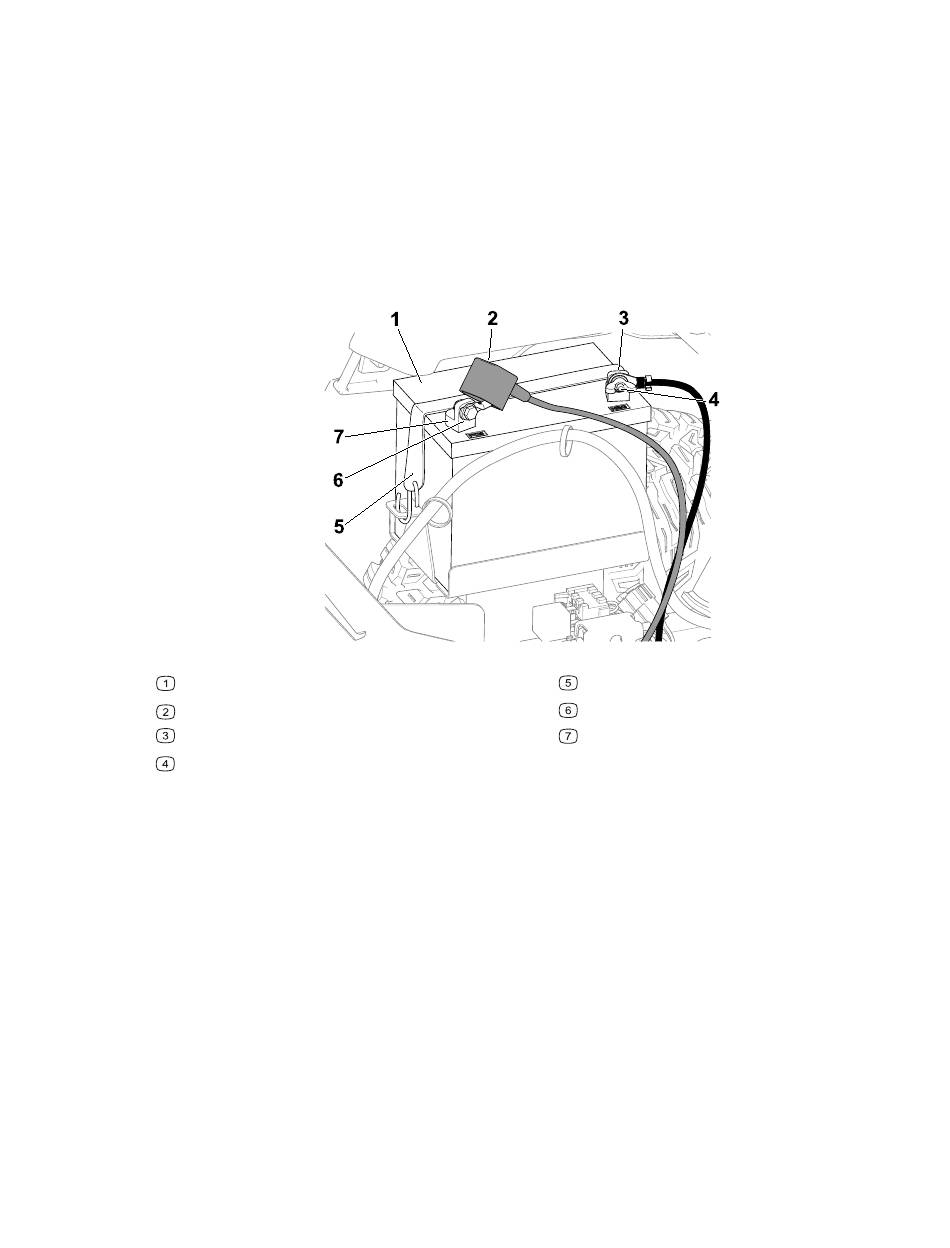

Battery
Terminal boot
Negative (–) battery post
Wing nut, washer, and bolt
Maintenance: Electrical System Maintenance
G440221
Battery hold-down
Bolt, washer, and nut
Positive (+) battery post
