Note: In circulating-air mode, the flue duct section must
be installed before the circulating-air guide is installed.
You can find information about installing the circulating-
air guide in the installation instructions for the access-
ory.

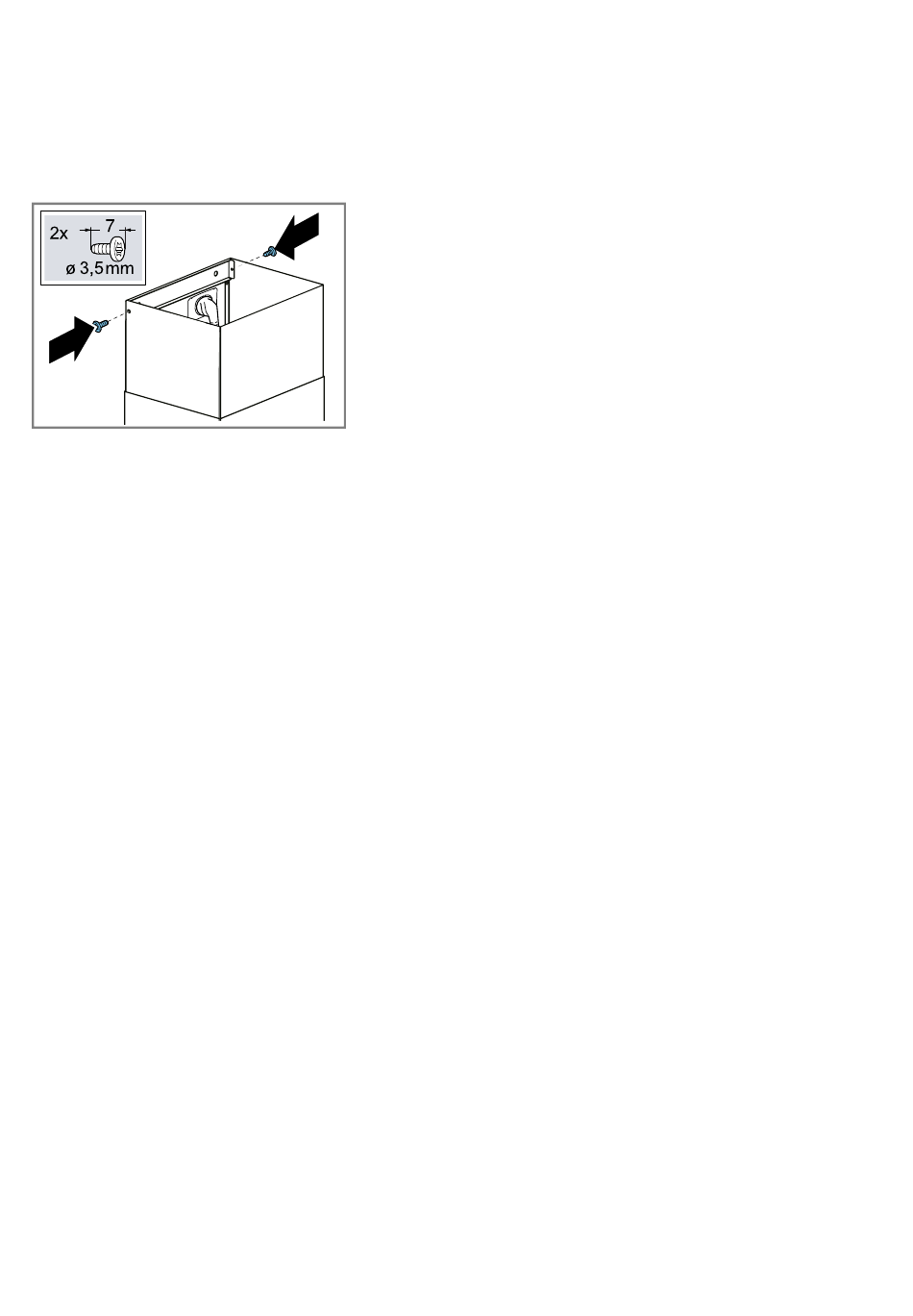

Screw the flue facing onto the angle bracket at the
side.
Removing the appliance
Remove the flue duct.
1.
Disconnect the appliance from the power supply.
2.
Loosen the exhaust pipe.
3.
Remove the filter.
4.
To avoid causing damage, do not bend the grease
filters.
Loosen the screws for the appliance bracket slightly
5.
but do not undo them fully.
Remove the appliance.
6.
Loosen the angle bracket for the flue duct.
7.
Installation instructions en
29
