English

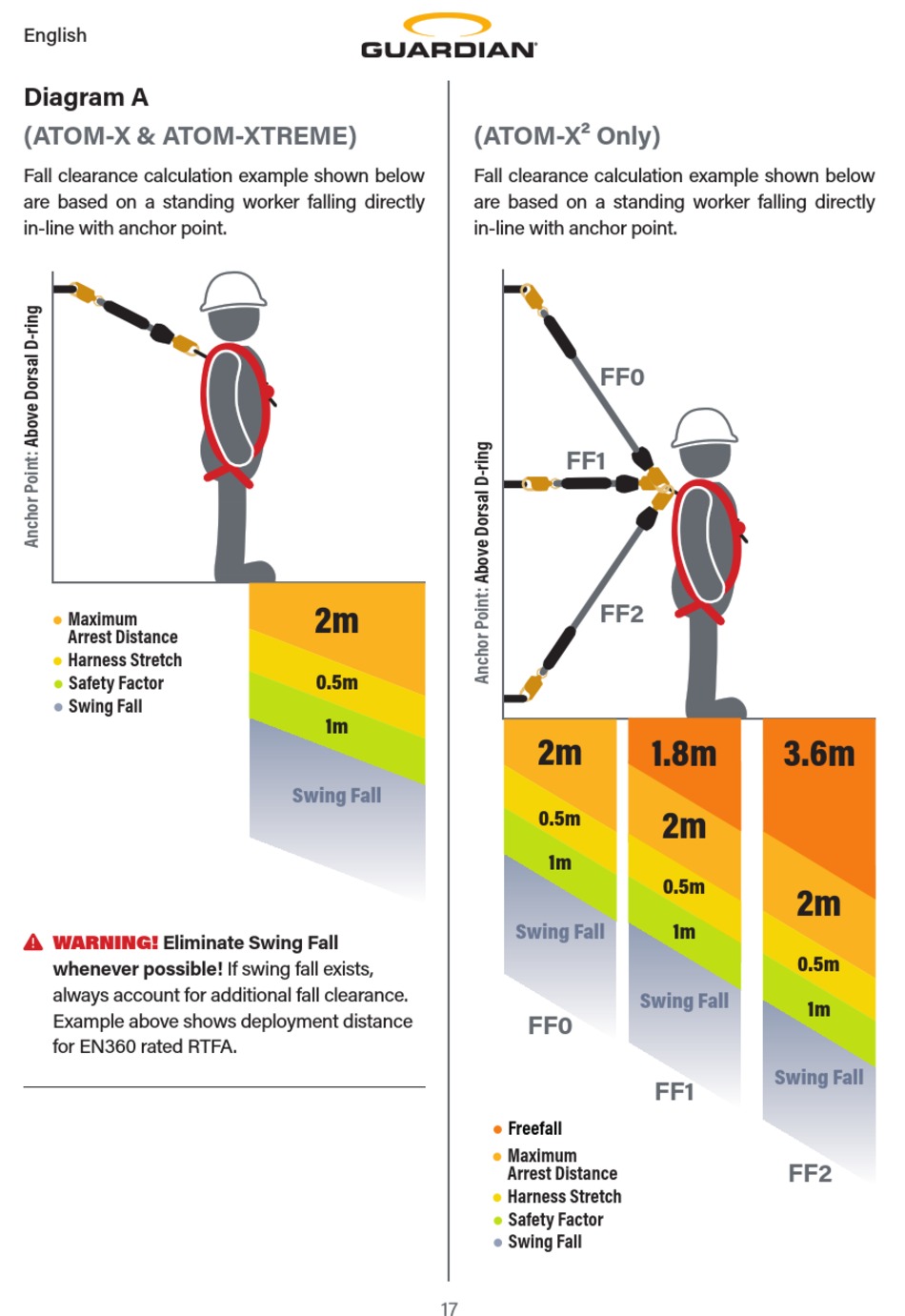

Diagram A
(ATOM-X & ATOM-XTREME)
Fall clearance calculation example shown below
are based on a standing worker falling directly
in-line with anchor point.
●
Maximum
Arrest Distance
● Harness Stretch
●
Safety Factor
●
Swing Fall
 WARNING! Eliminate Swing Fall
whenever possible! If swing fall exists,
always account for additional fall clearance.
Example above shows deployment distance
for EN360 rated RTFA.
2m
0.5m
1m
Swing Fall
17
(ATOM-X² Only)
Fall clearance calculation example shown below
are based on a standing worker falling directly
in-line with anchor point.
FF0
FF1
FF2
2m
0.5m
1m
Swing Fall
Swing Fall
FF0
●
Freefall
●
Maximum
Arrest Distance
●
Harness Stretch
●
Safety Factor
●
Swing Fall
1.8m 3.6m
2m
0.5m
2m
1m
0.5m
1m
Swing Fall
FF1
FF2
