English English

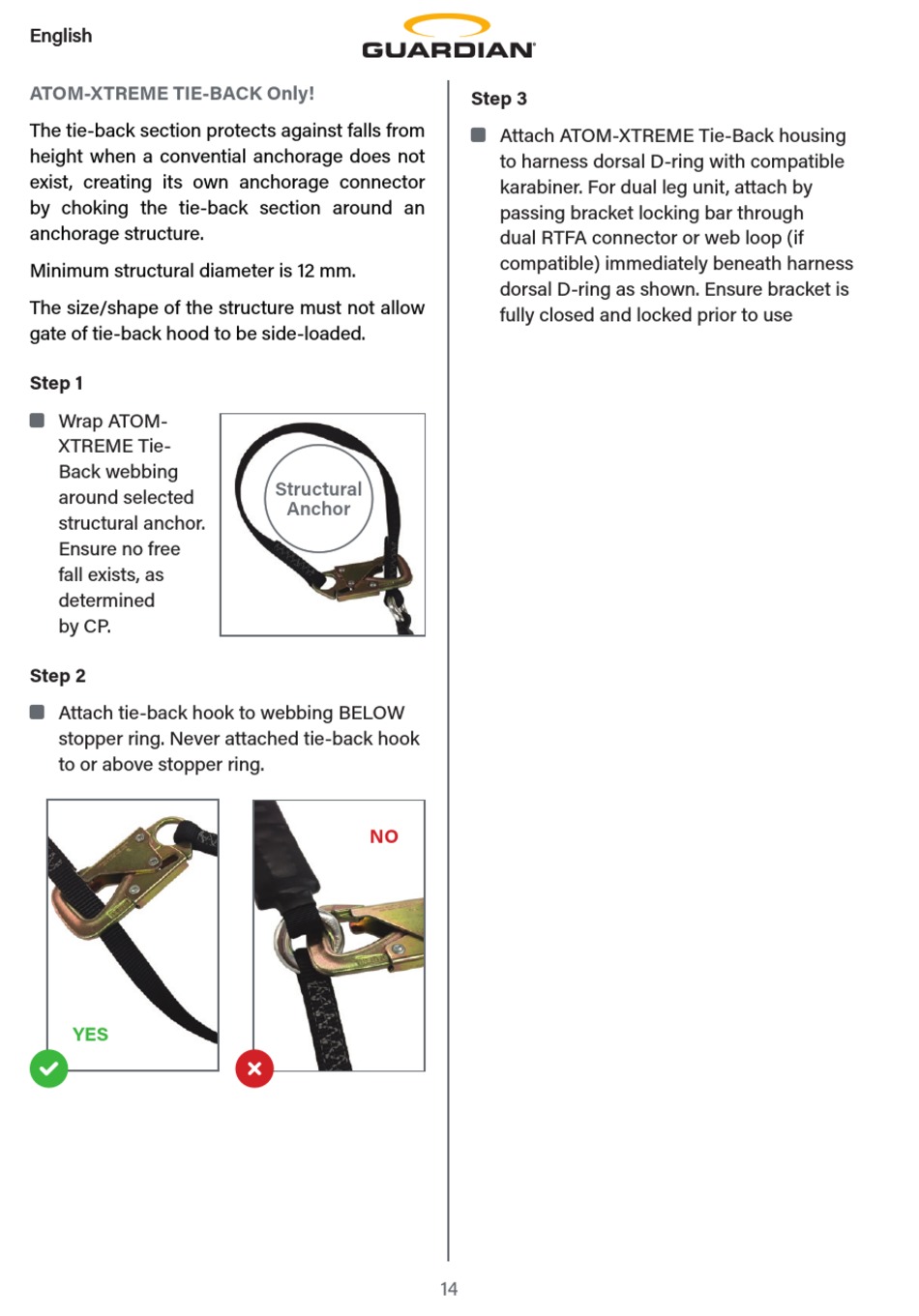

ATOM-XTREME TIE-BACK Only!
The tie-back section protects against falls from
height when a convential anchorage does not
exist, creating its own anchorage connector
by choking the tie-back section around an
anchorage structure.
Minimum structural diameter is 12 mm.
The size/shape of the structure must not allow
gate of tie-back hood to be side-loaded.
Step 1
Wrap ATOM-

XTREME Tie-
Back webbing
around selected
structural anchor.
Ensure no free
fall exists, as
determined
by CP.
Step 2
Attach tie-back hook to webbing BELOW

stopper ring. Never attached tie-back hook
to or above stopper ring.
YES

Structural
Anchor
NO

Step 3
Attach ATOM-XTREME Tie-Back housing

to harness dorsal D-ring with compatible
karabiner. For dual leg unit, attach by
passing bracket locking bar through
dual RTFA connector or web loop (if
compatible) immediately beneath harness
dorsal D-ring as shown. Ensure bracket is
fully closed and locked prior to use
14
