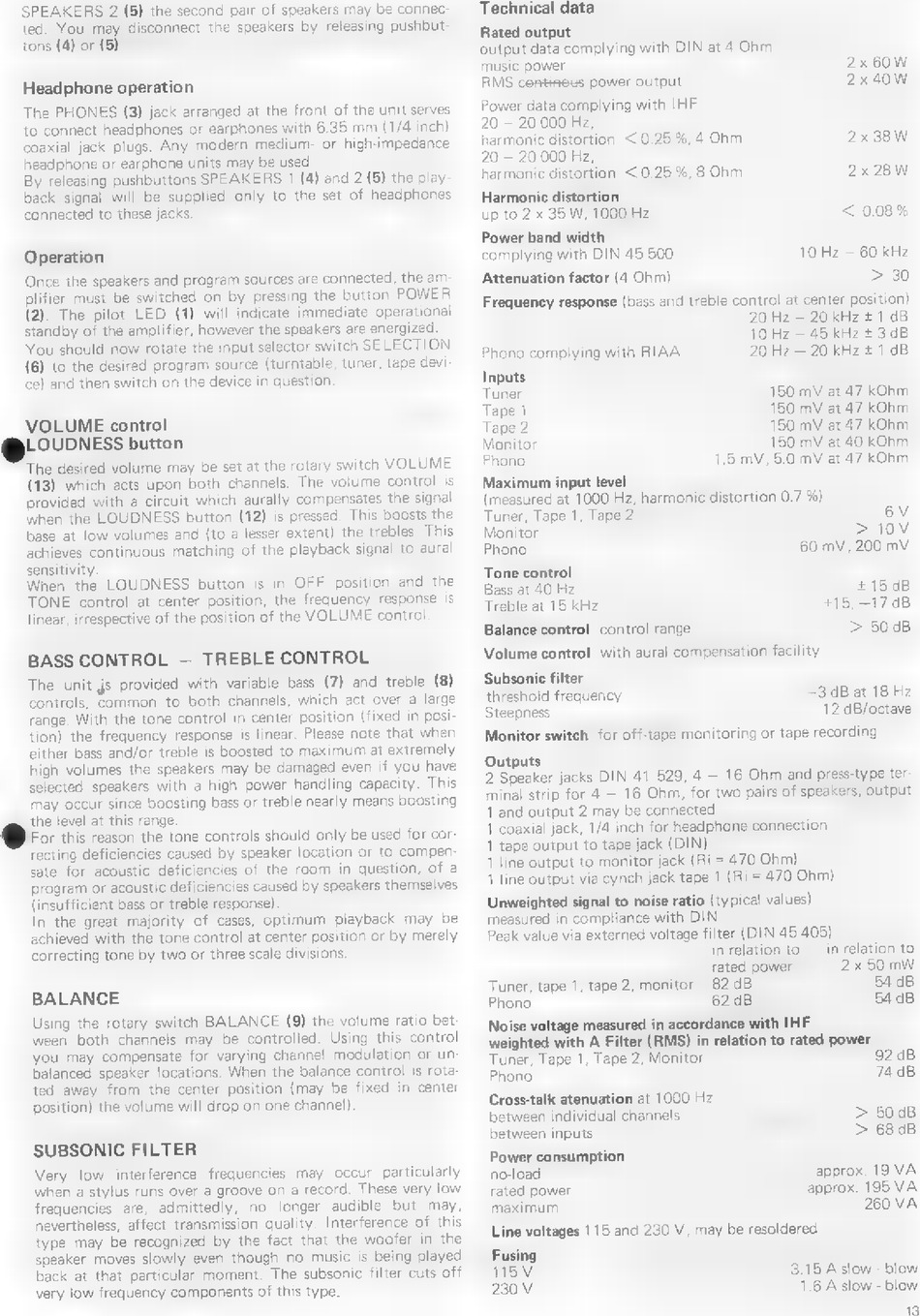

Volume Control - Dual CV 1250 Bedienungsanleitung

Headphone operation
Operation
VOLUME control
LOUDNESS button
The unit js provided with variable bass (7) and treble (8)
controls, common
to both channels, which act over a large
range.
With the tone control in center
position (fixed in posi-
tion) the frequency response is linear. Please note that when
either bass and/or treble is boosted to maximum at extremely
high volumes the speakers may be damaged even if you have
selected
speakers with a high power handling capacity. This
may occur since boosting bass or treble nearly means boosting
the level at this range.
BALANCE
Using the rotary switch BALANCE (9) the volume ratio bet-
ween both
channels may
be controlled.
Using this control
you may compensate
for varying channel
modulation or un
balanced speaker locations. When the balance control is rota-
ted away from the center position (may be fixed in center
position) the volume will drop on one channel).
SUBSONIC FILTER
Technical data
Rated output
output data complying with DIN at 4 Ohm
20 — 20 000 Hz,
harmonic distortion < 0.25 %, 4 Ohm 2x38W
20 - 20.000 Hz,
up to 2 x 35W, 1000 Hz < 0.08%
Power band width
complying with DIN 45 500 10 Hz — 60 kHz
Attenuation factor (4 Ohm) > 30
Inputs
Tuner 150 mV at 47 kOhm
Tape 1 150 mV at 47 kOhm
Tape 2 150 mV at 47 kOhm
Monitor 150 mV at 40 kOhm
Phono 1,5 mV, 5.0 mV at 47 kOhm
Maximum input level
(measured at 1000 Hz, harmonic distortion 0.7 %)
Tone control
Subsonic filter
Outputs
1 tape output to tape jack (DIN)
1 line output to monitor jack (Ri = 470 Ohm)
in relation to in relation to
rated power 2х 50 mw
Tuner, tape 1, tape 2, monitor
82 dB
54 dB
Phono
62 dB
54 dB
Power consumption
Fusing
13
