Danfoss BasicPlus2 WT-D Installationshandbuch Seite 7

Installationshandbuch

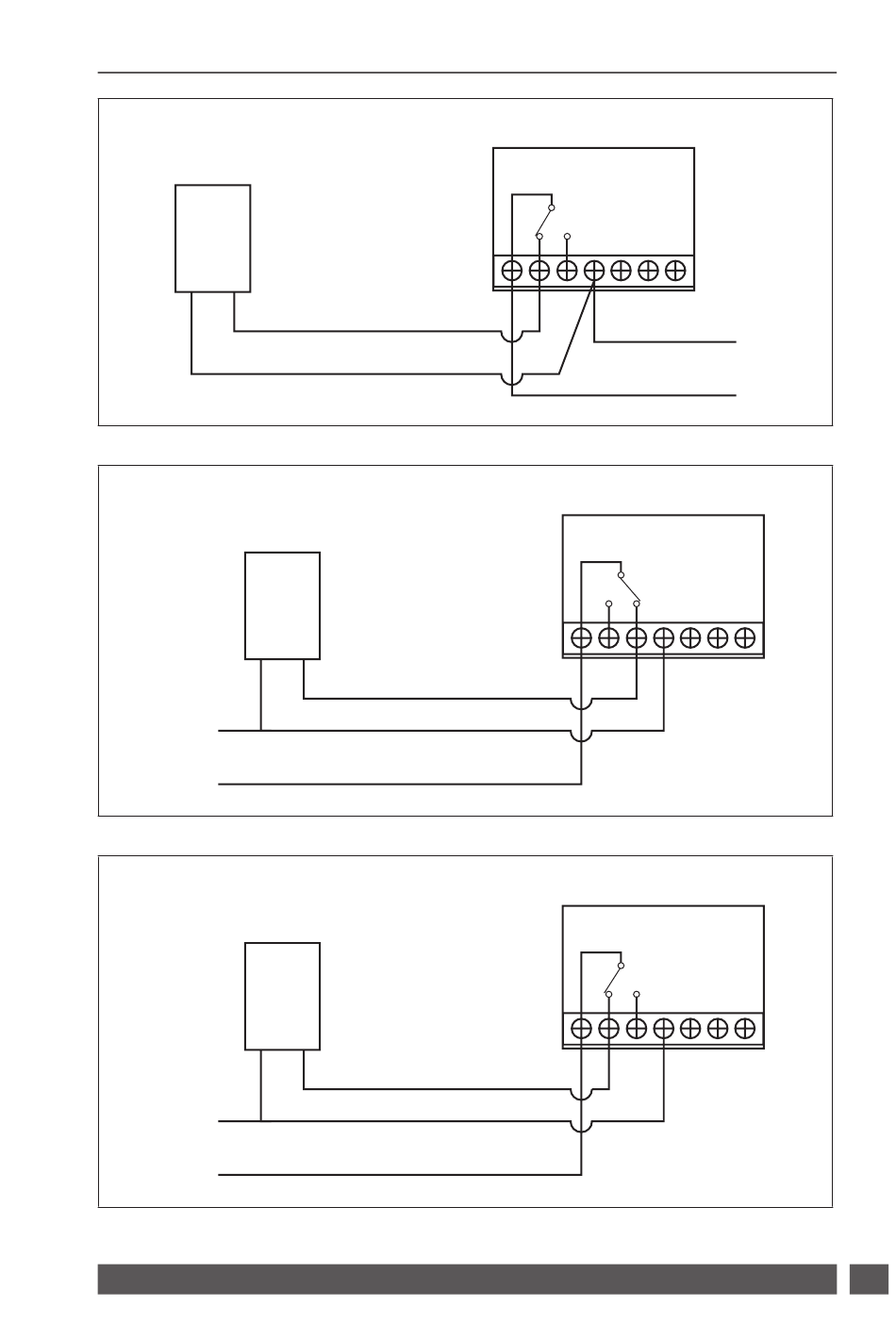

Fig. 7
TWA
230V
NO
Fig. 8
TWA
230V
N
230 V ~
L
Fig. 9
TWA
230V
N
230 V ~
L
Danfoss Heating Solutions
BasicPlus
NC
NO
WT-D & WT-P
2
WT-D/P
L NO NC N S1 S2
WT-D/P
L NO NC N
WT-D/P
L NO NC N
VICUJ223
N
230 V ~
L
S1 S2
S1 S2
7
