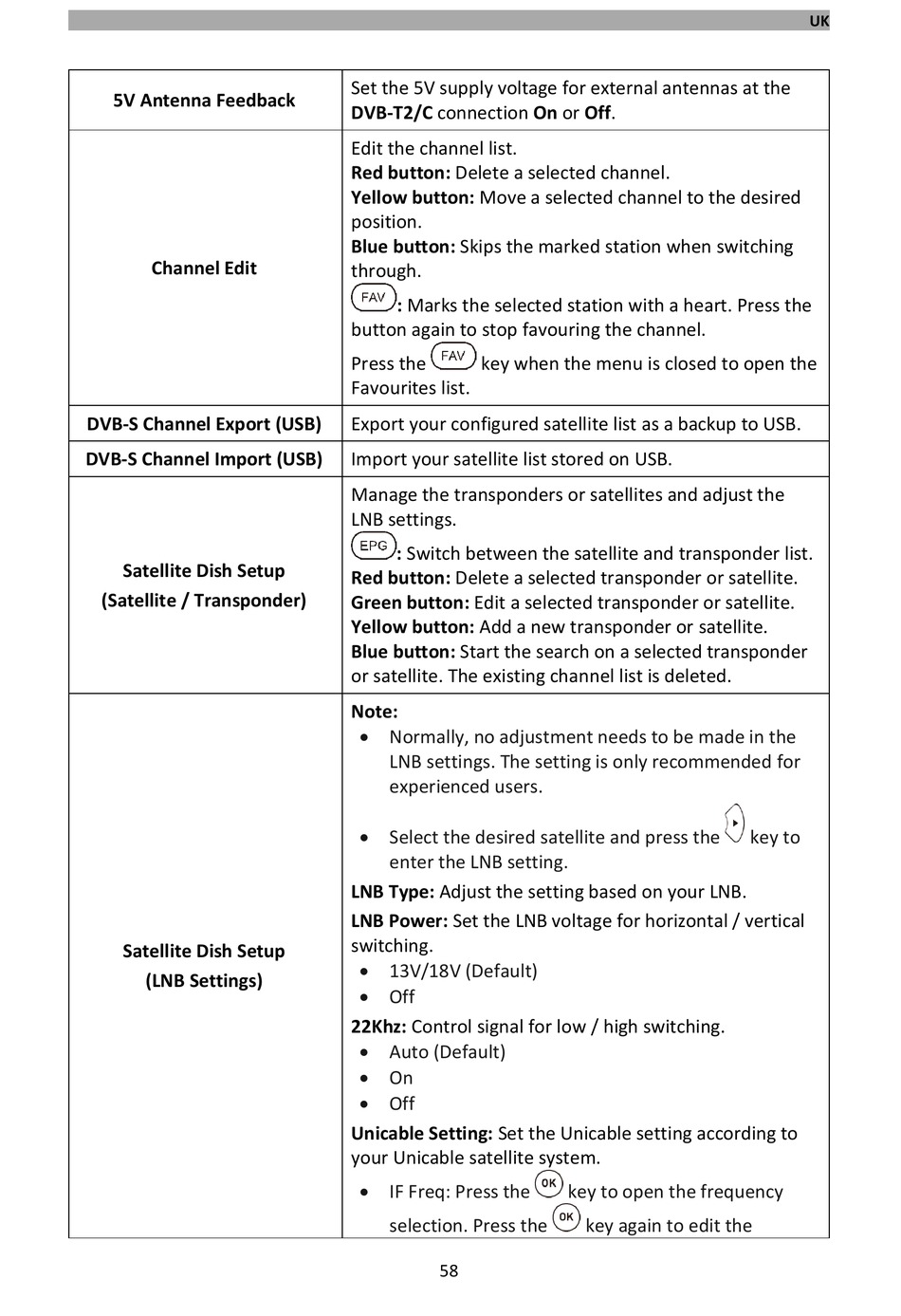

Reflexion LDDW27i+ Bedienungsanleitung Seite 58

5V Antenna Feedback
Channel Edit
DVB-S Channel Export (USB)
DVB-S Channel Import (USB)
Satellite Dish Setup
(Satellite / Transponder)
Satellite Dish Setup
(LNB Settings)
Set the 5V supply voltage for external antennas at the
DVB-T2/C connection On or Off.
Edit the channel list.
Red button: Delete a selected channel.
Yellow button: Move a selected channel to the desired
position.
Blue button: Skips the marked station when switching
through.
: Marks the selected station with a heart. Press the
button again to stop favouring the channel.
Press the key when the menu is closed to open the
Favourites list.
Export your configured satellite list as a backup to USB.
Import your satellite list stored on USB.
Manage the transponders or satellites and adjust the
LNB settings.
: Switch between the satellite and transponder list.
Red button: Delete a selected transponder or satellite.
Green button: Edit a selected transponder or satellite.
Yellow button: Add a new transponder or satellite.
Blue button: Start the search on a selected transponder
or satellite. The existing channel list is deleted.
Note:
 Normally, no adjustment needs to be made in the
LNB settings. The setting is only recommended for
experienced users.
 Select the desired satellite and press the
enter the LNB setting.
LNB Type: Adjust the setting based on your LNB.
LNB Power: Set the LNB voltage for horizontal / vertical
switching.
 13V/18V (Default)
 Off
22Khz: Control signal for low / high switching.
 Auto (Default)
 On
 Off
Unicable Setting: Set the Unicable setting according to
your Unicable satellite system.
 IF Freq: Press the
selection. Press the
58
key to open the frequency
key again to edit the
UK
key to
