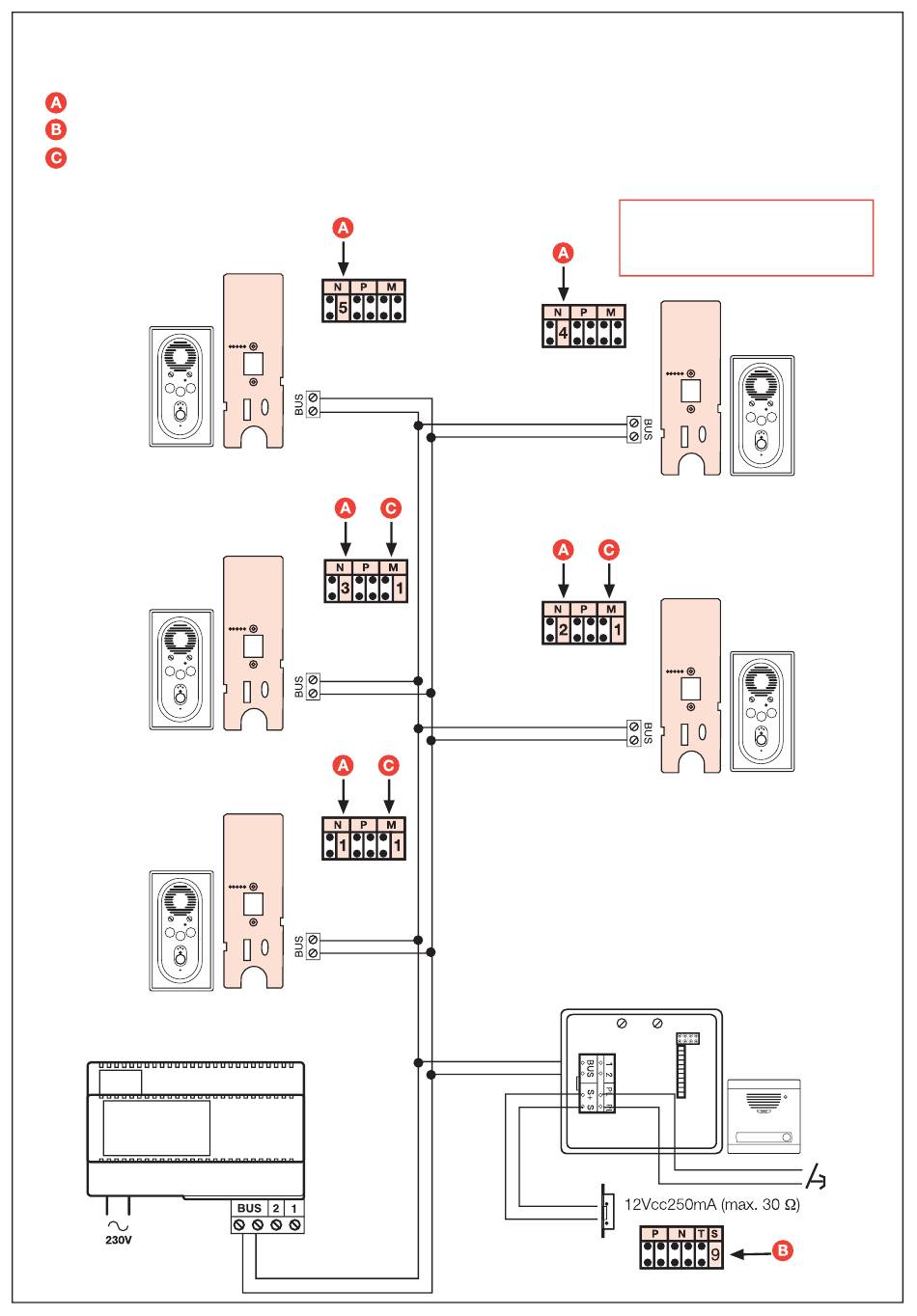

Wiring diagram with several handsets (max 5)
Confi gure handsets 1 to 5 with N=1, N=2, N=3, N=4 and N=5 respectively
For the entrance panel to call all the handsets at the same time, place confi gurator 9 in zone S.
For private intercommunication (up to 3 handsets) place confi gurator 1 in zone M of the handsets concerned.
All manuals and user guides at all-guides.com
27
Switch the power supply OF0
for 1 minute for every change of
confi guration
