Recommended distances and cross-sections up to 3 audio handsets per apartment
Recommended distances and cross-sections from 3 to 5 audio handsets per apartment

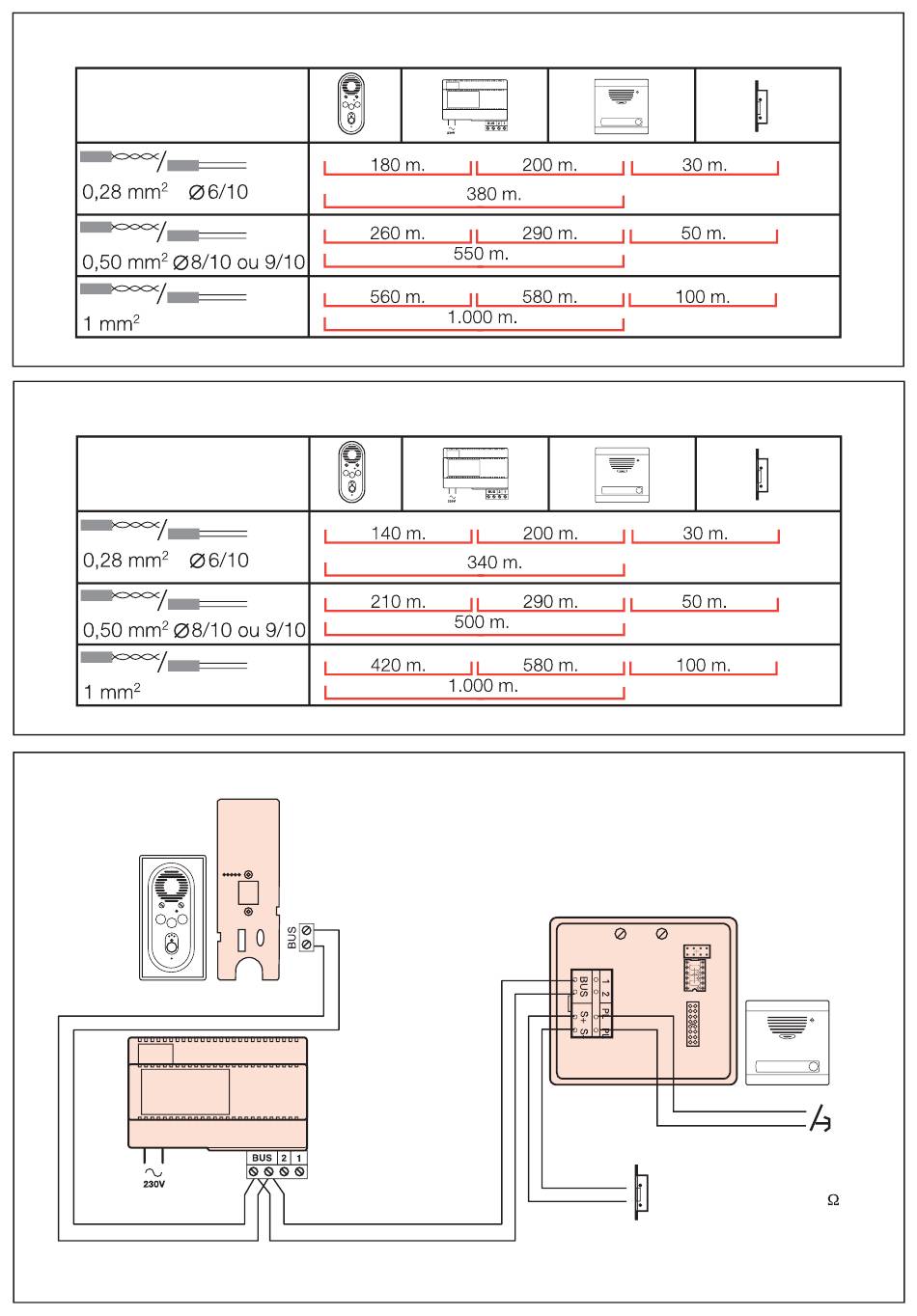

Example of a wiring diagram with 1 handset and command of the lock
The bus system allows duplicating the handset or entrance panel.
All manuals and user guides at all-guides.com
24
S- S+
12Vcc250mA (max. 30 )
