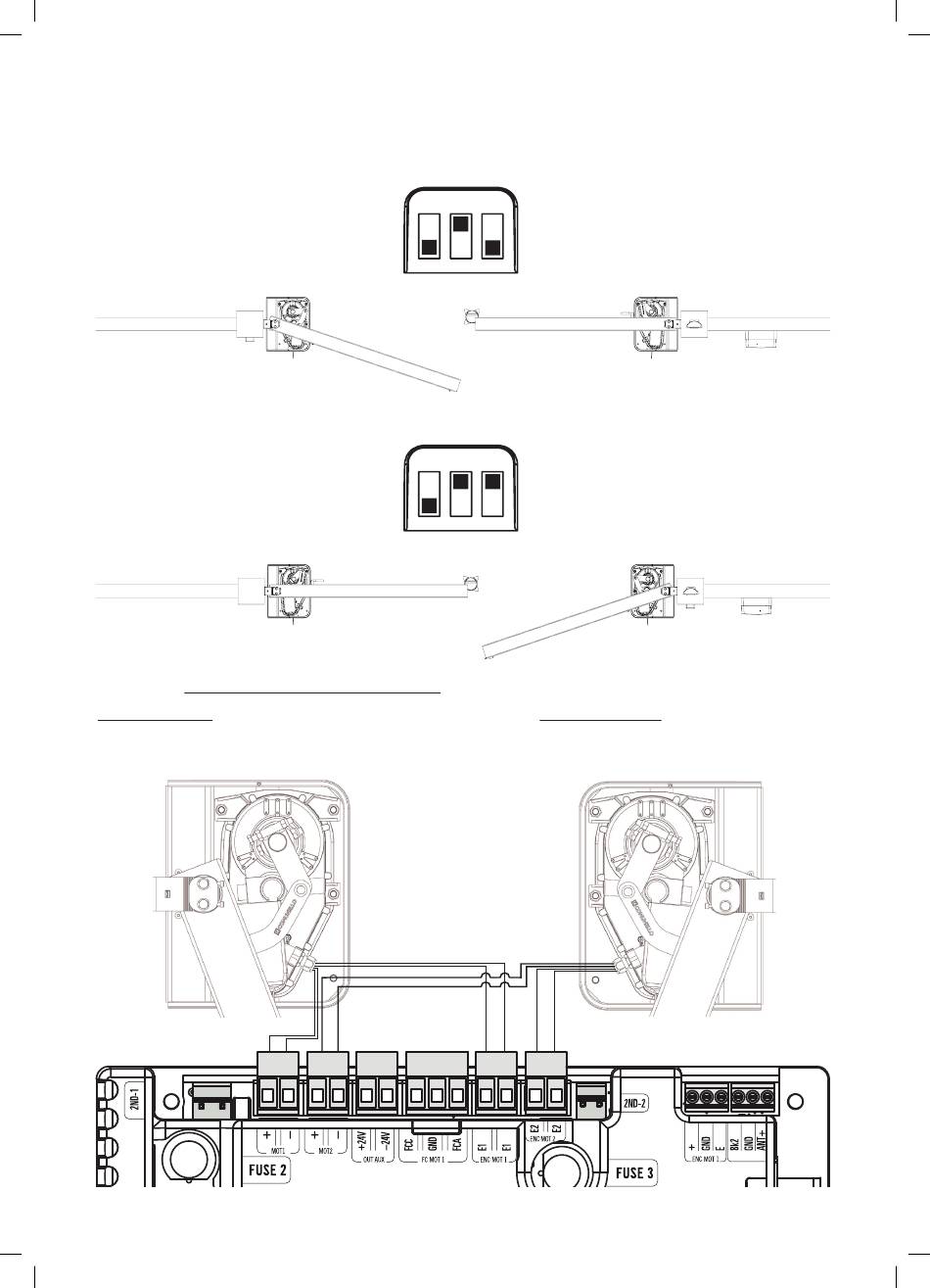

EAGLE - connection diagram of the motors
• DELAY OF THE MOTOR n.2
1
• DELAY OF THE MOTOR n.1
1
Configuration - MASTER ON THE LEFT, SLAVE ON THE RIGHT
MOTOR n.1 (on the left)
RED with MOT1+
BLACK with MOT1-
INV1 INV2 INV1-2
INV1 INV2 INV1-2
MOTOR n.2 (on the right)
RED with MOT2+
BLACK with MOT2-
2
2
