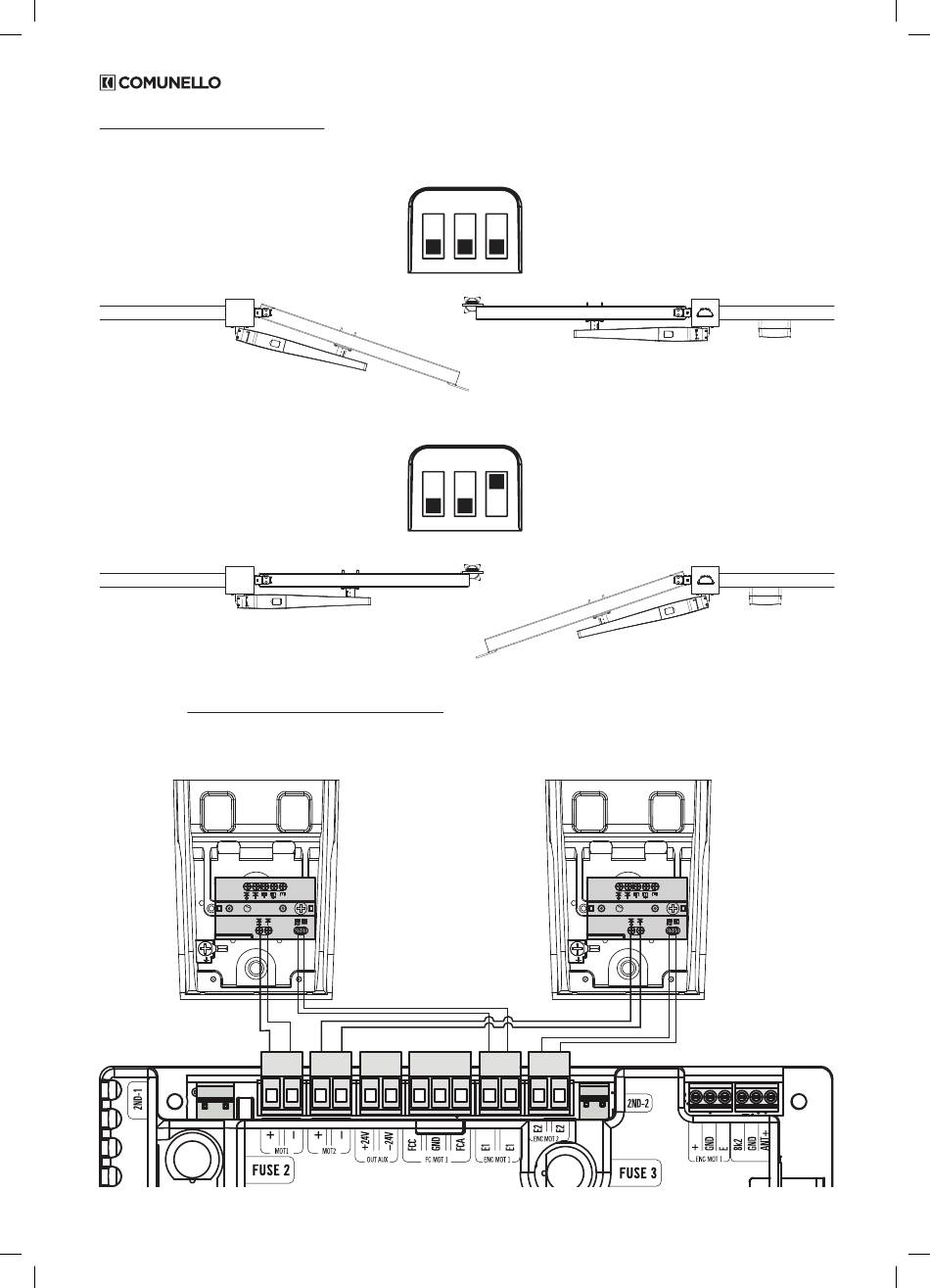

2 MOTORS CONFIGURATION
ABACUS - connection diagram of the motors
• DELAY OF THE MOTOR n.2
1
• DELAY OF THE MOTOR n.1
1
Configuration - MASTER ON THE LEFT, SLAVE ON THE RIGHT
MOT1+ with M+
MOT1- with M1-
6
COMUNELLO ®Copyright 2017 - All right reserved
INV1 INV2 INV1-2
INV1 INV2 INV1-2
MOT2+ with M2+
MOT2- with M2-
2
2
