FIG. 4

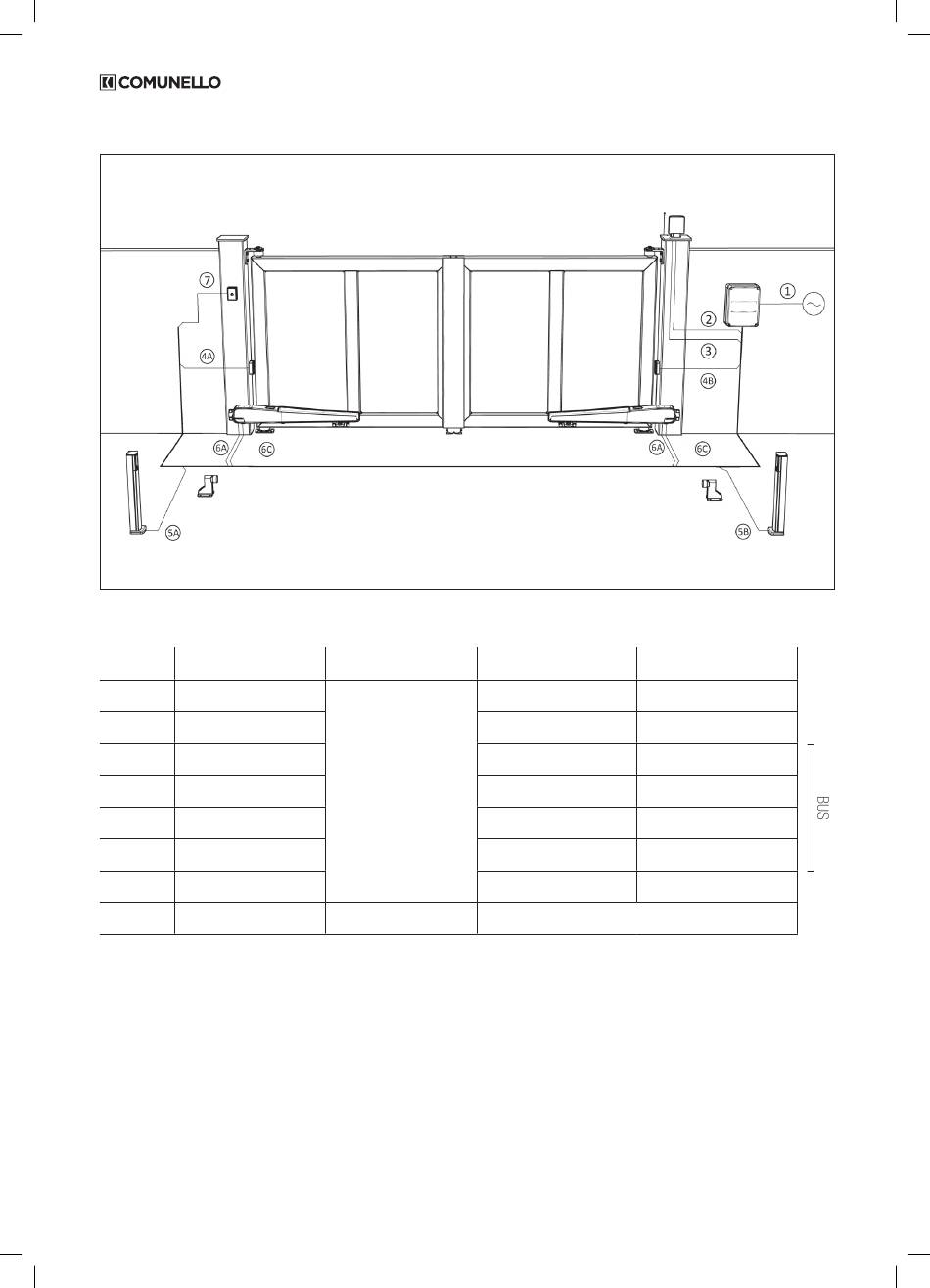

TABELLA CONNESSIONI CAVI AG01 - WIRES CONNECTION TABLE AG01
ONE 2 M – (QUAD ONE 2 M)
ID Description
1 Main power supply
6A Motor power supply
2 Flashing light
4A , 5A Photocell TX
4B , 5B Photocell RX
7 Key selector
6C Encoder
3 Antenna
2
COMUNELLO ®Copyright 2017 - All right reserved
Cable type Lenght (1m to 20m)
FROR CEI 20-22
CEI EN 50267-2-1
RG58
Lenght (20m to 50m)
2x1,5mm2 2x2,5mm2
2x2,5mm2 2x4,0mm2
2x0,5mm2 2x1,0mm2
2x0,5mm2 2x1,0mm2
2x0,5mm2 2x1,0mm2
2x0,5mm2 2x1,0mm2
2x0,5mm2 2x1,0mm2
max 20m
