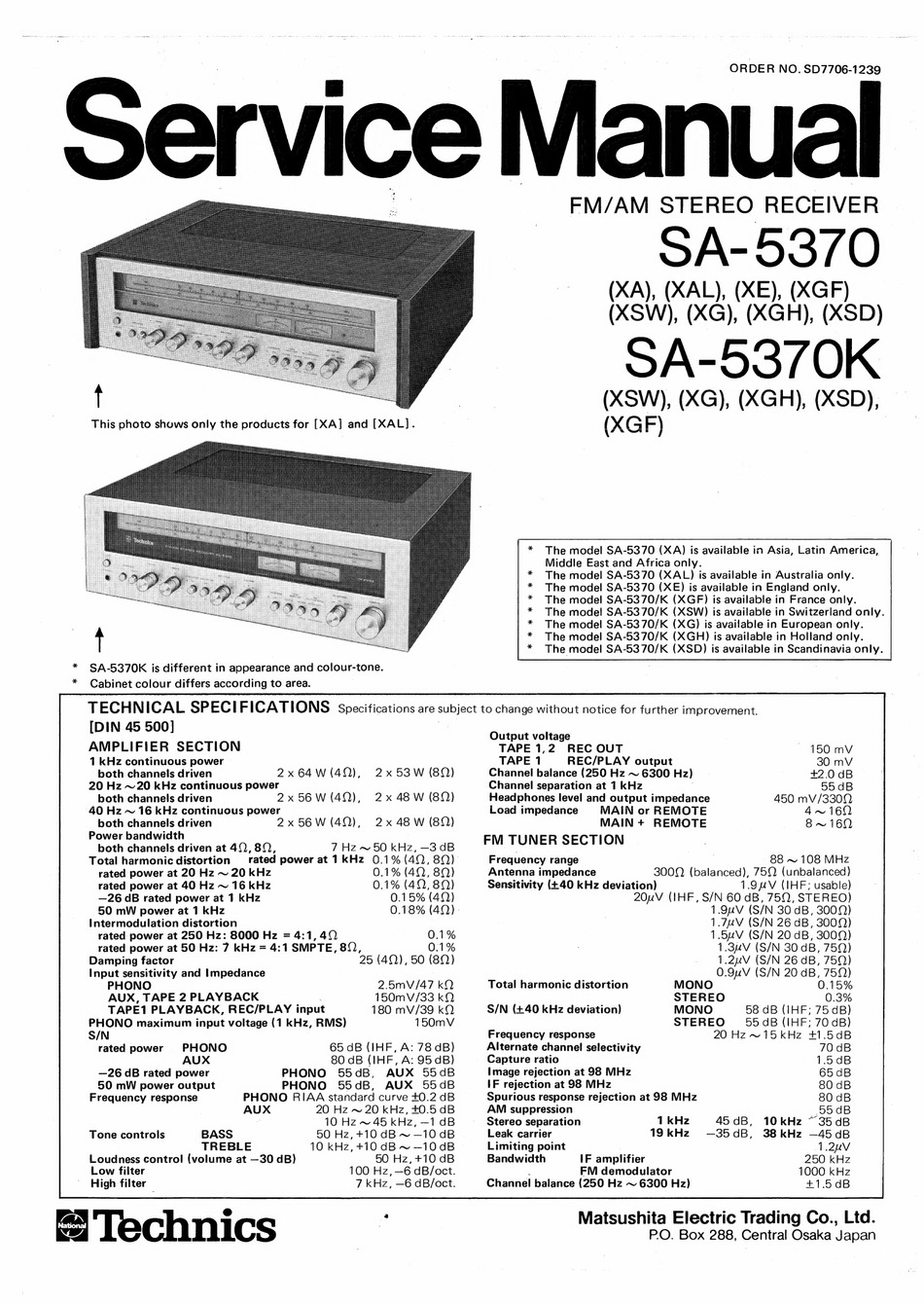

ORDER NO. SD7706-1239
ervice Manual
FM/AM
STEREO
RECEIVER
SA-5370
(XA), (XAL), (XE), (XGF)
(XSW), (XG), (XGH), (XSD)
SA-5370K
(XSW), (XG), (XGH), (XSD),
This photo shows only the products for [XA] and [XAL].
(XC
F)
(eS
The model SA-5370 (XA) is available in Asia, Latin America,
Middle East and Africa only.
The model SA-5370 (XAL) is available in Australia only.
The model SA-5370 (XE) is available in England only.
The model SA-5370/K (XGF) is available in France only.
The model SA-5370/K (XSW) is available in Switzerland only.
The model SA-5370/K (XG) is available in European only.
The model SA-5370/K (XGH) is available in Holland only.
The model SA-5370/K (XSD) is available in Scandinavia only.
f
*
SA-5370K is different in appearance and colour-tone.
*
Cabinet colour differs according to area.
TECHNICAL
SPECI
FICATIONS
Specifications are Sup Iect to change without notice for further improvement.
AMPLIFIER
SECTION
TAPE 1,2
REC OUT
— 150 mV
1 kHz continuous power
TAPE 1
REC/PLAY output
30 mV
both channels driven
2x 64W (4D),
2x 53 W (80)
Channel balance (250 Hz ~ 6300 Hz)
+2.0 dB
20 Hz
~ 20 kHz continuous power
Channel separation at 1 kHz
55dB
both channels driven
2x 56W (4),
2x 48 W (82D)
Headphones level and output impedance
450 mV/3300
40 Hz ~ 16 kHz continuous power
Load impedance
MAIN
or REMOTE
4~160
both channels driven
2x 56W (40),
2x 48 W (8Q)
MAIN +
REMOTE
Bn 160
Power bandwidth
both channels driven at 420, 80,
7 Hz ~ 50 kHz, —3 dB
FM TUNER SECTION
|
Total harmonic distortion
rated power at 1 kHz
0.1% (40, 80)
Frequency range
.
88 ~ 108 MHz
rated power at 20 Hz ~ 20 kHz
0.1% (40, 8Q)
Antenna impedance
3002 (balanced), 750 (unbalanced)
rated power at 40 Hz ~ 16 kHz
0.1% (40, 80)
Sensitivity (+40 kHz deviation)
1.9uV (IHF; usable)
—26 dB rated power at 1 kHz
0.15% (40)
20uV
(LHF, S/N 60 dB, 75, STEREO)
50 mW power at 1 kHz
0.18% (41) -
1.9uV (S/N 30 dB, 3002)
Intermodulation distortion
i
|
1.7uV (S/N 26 dB, 300)
rated power at 250 Hz: 8000 Hz = 4:1, 40
0.1%
|
1.5uV (S/N 20 dB, 300)
rated power at 50 Hz: 7 kHz = 4:1 SMPTE, 822,
0:1%
1.3uV (S/N 30 dB, 75Q)
Damping factor
25 (411), 50 (8)
-
1.2uV (S/N 26 dB, 75Q)
Input sensitivity and Impedance
0.9uV (S/N 20 dB, 75)
PHONO
2.5mV/47 kQ
Total harmonic distortion
MONO
0.15%
AUX, TAPE 2 PLAYBACK
150mV/33 kQ
STEREO
0.3%
TAPE1
PLAYBACK,
REC/PLAY
input
180 mV/39
kQ
S/N (£40 kHz deviation)
MONO
58 dB (IHF; 75 dB)
PHONO maximum input voltage (1 kHz, RMS)
150mV
STEREO
55dB (IHF; 70 dB)
S/N
Frequency response
20 Hz ~15kHz
+1.5dB
rated power
PHONO
65 dB (IHF, A: 78 dB)
Alternate channel selectivity
70 dB
AUX
80 dB (IHF, A: 95 dB)
Capture ratio
1.50B
—26 dB rated power
PHONO
55dB,
AUX
55dB
Image rejection at 98 MHz
65dB
50 mW power output
PHONO
55dB,
AUX
55dB
IF rejection at 98 MHz
80 dB
Frequency response
PHONO
RIAA standard curve +0.2 dB
Spurious response rejection at 98 MHz
80dB
AUX
20 Hz ~ 20 kHz, +0.5dB
AM suppression
55dB
;
10 Hz~45kHz,—-1dB
— _ —
Stereo separation
1 kHz
45dB,
10kHz
~ 35dB
Tone controls
BASS
50 Hz, +10 dB ~ —10 dB
Leak carrier
19kHz
-—35dB,
38kHz
—45dB
TREBLE
10 kHz, +10 dB ~—10dB
Limiting point
1.2uV
Loudness control (volume at —30 dB)
50 Hz,+10dB
Bandwidth
IF amplifier
250 kHz
Low filter
100 Hz, —6 dB/oct.
FM demodulator
1000 kHz
High filter
7 kHz, —6 dB/oct.
Channel balance (250 Hz ~ 6300 Hz)
+1.5dB
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central Osaka Japan
