EcoDim ECO-DIM.13 WiFi Handbuch Seite 3

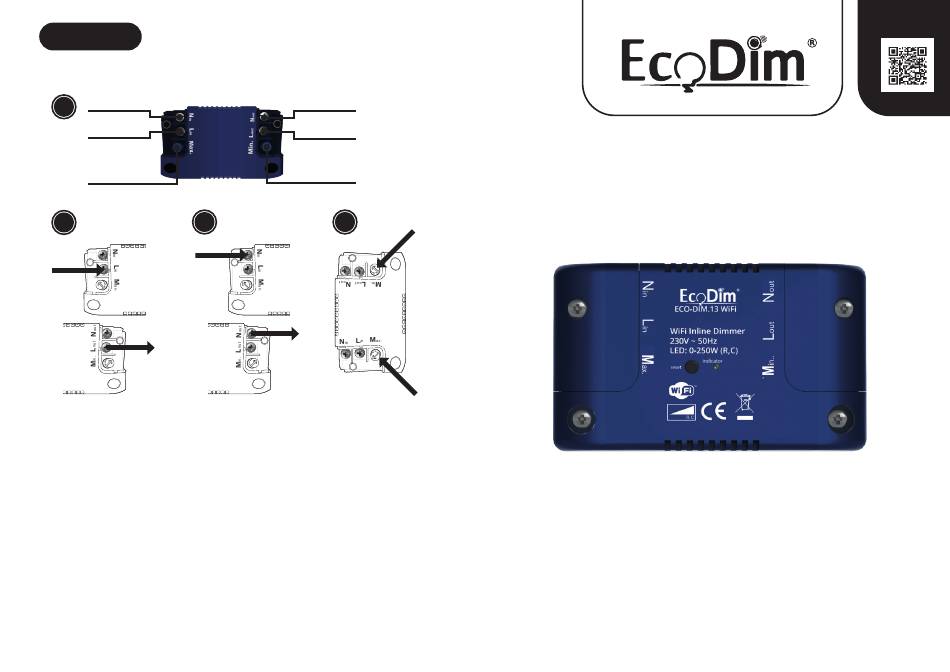

Installation
2-wire connection
1
N wire
L wire
MAX-
potentiometer
2 3
N
L
L
Step 1
Always ensure that the electricity is switched off during installation. Then connect the
power wires as shown under 'Installation' .
Step 2
Run the phase wire (L) through by connecting it to the L in and L out ports.
Step 3
Run the neutral (N) wire through by connecting it to the N in and N out ports.
Step 4
Switch the electricity back on. Turn on the connected lamps using the App. Now set the
MIN & MAX as shown under 'Min. setting the light level' and 'Max. setting the light level' .
N wire
L wire
Min-
potentiometer
4
N
Manual
ECO-DIM.13 WiFi
Led inline WiFi dimmer
(phase cut-off) (R,C)
Caution:
• This inline dimmer should be connected as shown under the heading 'Connection
diagram' .
• Installation of the dimmer on a 230V mains power supply should be carried out by
a qualified professional, taking into account national regulations. Ensure that the
electricity is switched off during all work.
• No more than one dimmer can be switched in parallel.
Simplified EU Declaration of Conformity:
We, EcoDim B.V., hereby declare that this product conforms to the directives applicable from the
European Union.
The full text of the EU declaration of conformity can be consulted at the following
internet address: https://www.ecodim.nl/en/service/ecodim-certificering
EN
WWW.ECODIM.NL
