GM1000
ZONE 4 Eliminate all sharp edges on the
guide rails
Risk of trapping
between the roller rails Eliminate any gap ≥ 8 mm
and bearings between the rails and the
bearings
ZONE 5 Obstacle detection built into
the motorisation. It must be
Risk of crushing
imperatively checked that the
between the
obstacle detection complies with
secondary edges and
annex A of the standard EN 12
adjoining fixed parts
453.

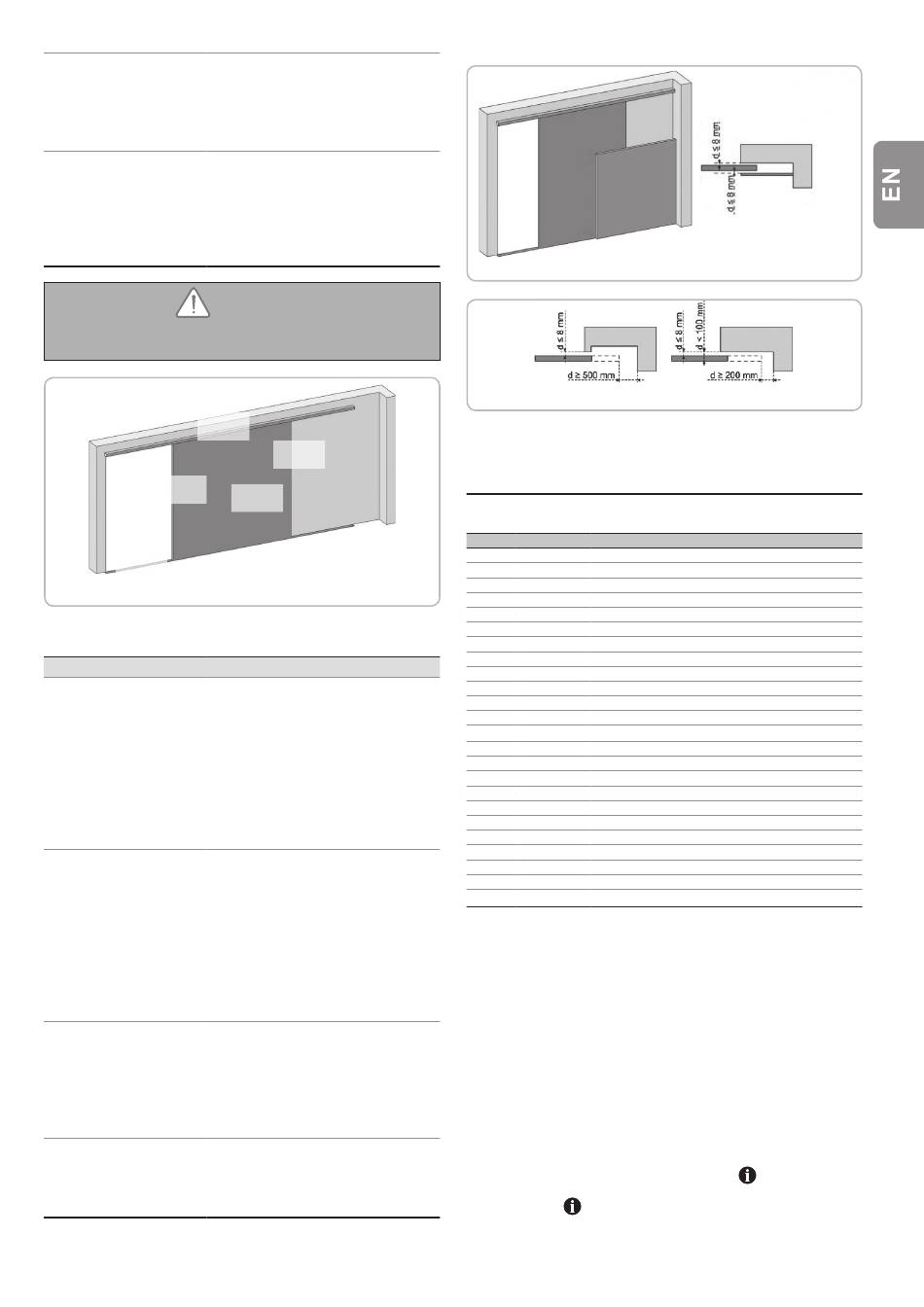

WARNING
Risk prevention - motorisation of sliding
garage door for residential usage
Zone 4
Zone 1
Zone 4
>
Risk zones: measures to be taken to
eliminate risks.
RISK SOLUTION
ZONE 1 Obstacle detection built into
the motorisation. It must be
Risk of crushing
imperatively checked that the
during closing
obstacle detection complies with
annex A of the standard EN 12
453.
For operation with automatic
closing, install photoelectric cells
(see installation manual)
ZONE 2 Obstacle detection built into
the motorisation. It must be
Risk of crushing with
imperatively checked that the
an adjoining fixed part
obstacle detection complies with
annex A of the standard EN 12
453.
Mechanical protection (see
figure 1) or via safety distances
(see figure 2)
ZONE 3 Eliminate all sticking points and
all sharp edges from the surface
Risk of cutting or
of the door
trapping between the
door panels in gaps Eliminate any gap ≥ 8 mm or
of between 8mm and ≤ 25 mm
25mm
ZONE 4 Eliminate all sharp edges on the
guide rails
Risk of trapping
between the roller rails Eliminate any gap ≥ 8 mm
and bearings between the rails and the bearings
Copyright © 2017 Simu SAS. All rights reserved
Zone 2
Zone 3
Figure 1 - Mechanical protection
Figure 2 - Safety distance

2 - PRODUCT DESCRIPTION

2.1 Product components - Fig. 1

Key Number Description
1 1 Motor head
2 1 Motor cover
3 1 Upper cover
4 1 Lintel bracket
5 1 Door bracket
6 2 Ceiling bracket
7 2 Motor head bracket
8 1 Manual release cord
9 1 Link arm
10 1 Travel stop
11 4 Chain retainer pad
12 1 Power cable
13 2 Hex. head M8x16 bolt
14 4 Hex. head M8x12 bolt & washer
15 6 HU8 nut
16 2 Axe
17 2 Circlips
18 4 Self-shaping Ø 4x8 screw
19 2 Special screw for plastic Ø 3.5x12
20 1 Rail
21a+22a 1 + 2 Spacer + Square brackets
21b 1 Spacer
23 2 2 H M8 brake nuts
24 2 TSA+ 4 channels remote controls

2.2 Scope of application - Fig. 2

This motorisation is exclusively intended for the equipement of a garage door
for residential use.
Types of doors (Fig.2)
The GM1000 motorisation is designed to motorise:
A: Projecting up and over door.
B: Sectional door:
- if the door's upper profile is a specific one, use the "sectional door
mounting bracket".
C: Sideways opening sliding door:
- For side wall mounting, use the belt transmission rail.
Door dimensions (Fig. 2)
For maximum door heights, the motor travel can be optimised:
- By installing the motor head at a 90° angle (Fig. 6 -
- By fixing the lintel bracket to the ceiling, behind the lintel itself by up to
200 mm (Fig. 4 -
)
- By cutting the link arm to size.
).
4
