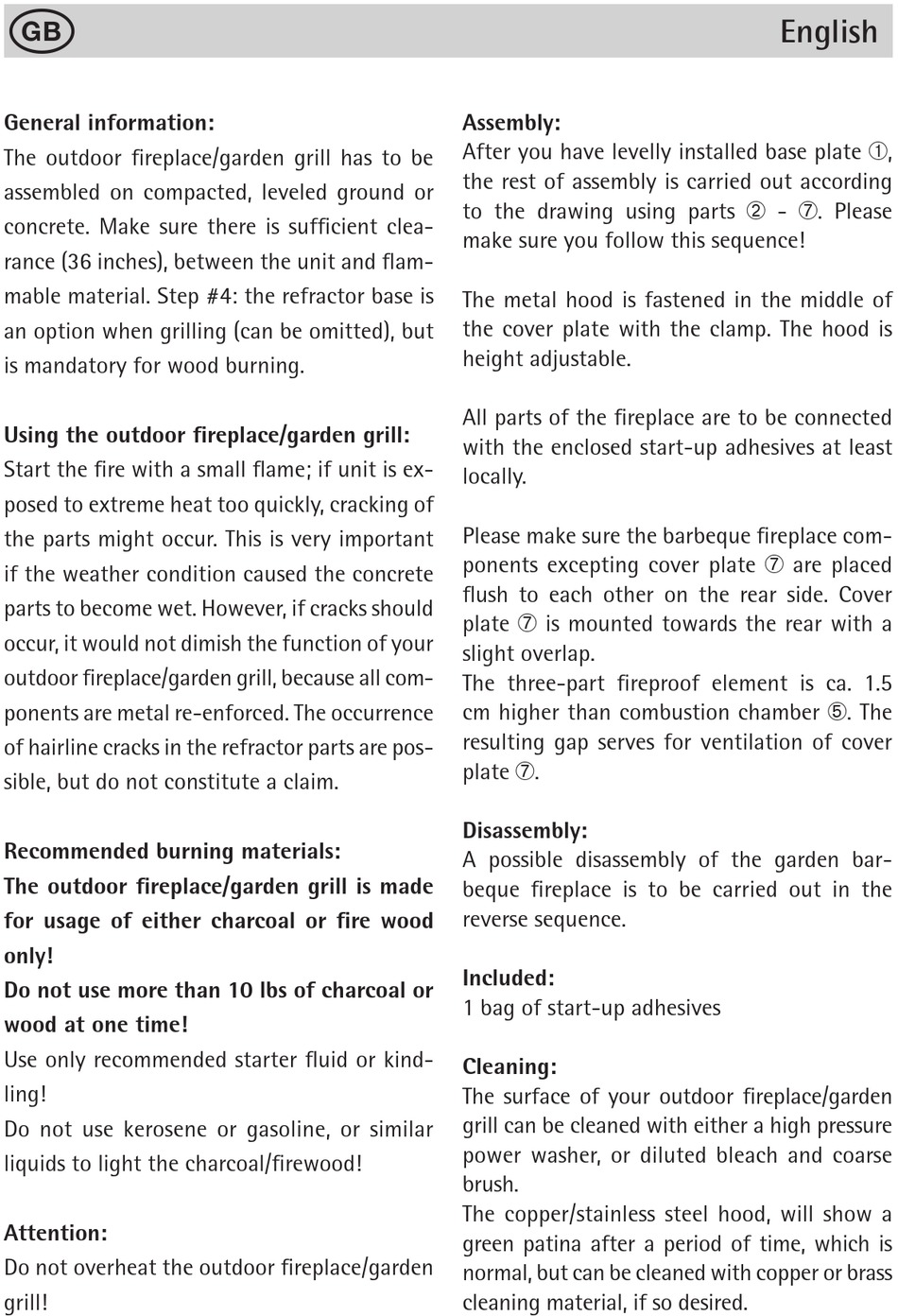

General information:
The outdoor fireplace/garden grill has to be
assembled on compacted, leveled ground or
concrete. Make sure there is sufficient clea-
rance (36 inches), between the unit and flam-
mable material. Step #4: the refractor base is
an option when grilling (can be omitted), but
is mandatory for wood burning.
Using the outdoor fireplace/garden grill:
Start the fire with a small flame; if unit is ex-
posed to extreme heat too quickly, cracking of
the parts might occur. This is very important
if the weather condition caused the concrete
parts to become wet. However, if cracks should
occur, it would not dimish the function of your
outdoor fireplace/garden grill, because all com-
ponents are metal re-enforced. The occurrence
of hairline cracks in the refractor parts are pos-
sible, but do not constitute a claim.
Recommended burning materials:
The outdoor fireplace/garden grill is made
for usage of either charcoal or fire wood
only!
Do not use more than 10 lbs of charcoal or
wood at one time!
Use only recommended starter fluid or kind-
ling!
Do not use kerosene or gasoline, or similar
liquids to light the charcoal/firewood!
Attention:
Do not overheat the outdoor fireplace/garden
grill!
Assembly:
After you have levelly installed base plate �,
the rest of assembly is carried out according
to the drawing using parts � - �. Please
make sure you follow this sequence!
The metal hood is fastened in the middle of
the cover plate with the clamp. The hood is
height adjustable.
All parts of the fireplace are to be connected
with the enclosed start-up adhesives at least
locally.
Please make sure the barbeque fireplace com-
ponents excepting cover plate � are placed
flush to each other on the rear side. Cover
plate � is mounted towards the rear with a
slight overlap.
The three-part fireproof element is ca. 1.5
cm higher than combustion chamber �. The
resulting gap serves for ventilation of cover
plate �.
Disassembly:
A possible disassembly of the garden bar-
beque fireplace is to be carried out in the
reverse sequence.
Included:
1 bag of start-up adhesives
Cleaning:
The surface of your outdoor fireplace/garden
grill can be cleaned with either a high pressure
power washer, or diluted bleach and coarse
brush.
The copper/stainless steel hood, will show a
green patina after a period of time, which is
normal, but can be cleaned with copper or brass
cleaning material, if so desired.
