Exsys EX-1311-2 Anleitung

CONNECTORS & STATUS LED'S
USB 2.0 A-Connector:
USB 2.0 A-Plug
Pin Signal Pin
1 VCC 3 DATA+
2 DATA- 4
Status LED's:
RXD
HARDWARE INSTALLATION
Because there are large differences between PC's, we can give you only a general installation
guide for the EX-1311-2. Please refer your computers reference manual whenever in doubt.
1. Connect the EX-1311-2 USB to the USB A-Port at the your PC.
2. If you would like to screw the serial cable to the 9 Pin connector of the EX-1311-2, then
unscrew the screws (see Picture 1) and screw the supplied hexagon nuts into the holes on
the EX-1311-2 (see Picture 2). Now you can attach the serial cable to the EX-1311-2.
Remove the Screws Insert the Hexagon Nuts
Picture 1
3. When you are ready you can start your PC and continue with the point „Driver Installation".
5
DRIVER INSTALLATION
Windows
After the hardware installation Windows will recognize the device automatically and install the
drivers. If the driver shoul not be installed automatically, please insert the Driver CD into your
Signal
CD-Rom drive (e.g. Drive D:) and open the folder „USB_to_IO/FTDI". Please select the folder
with your operating system and install the driver (see Picture). Follow the hardware assistant
and finish the installation. Important! Restart your PC in any case after installing the drivers.
GND
CHECK INSTALLED DRIVER
TXD
Open the >Device manager<. Now you should see at „Ports (COM & LPT)" and „USB-
Controller" the following new entry:
If you see this or a similar information the device is installed correctly.
CLEANING
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In
the area of the connectors please make sure that no fibres from the cloth remain in the connect-
ors. Attention! Never use a moist or wet cloth for cleaning!
Picture 2
AUFBAU
USB 2.0 A-Stecker
zum Anschluss an PC
BESCHREIBUNG & TECHNISCHE DATEN

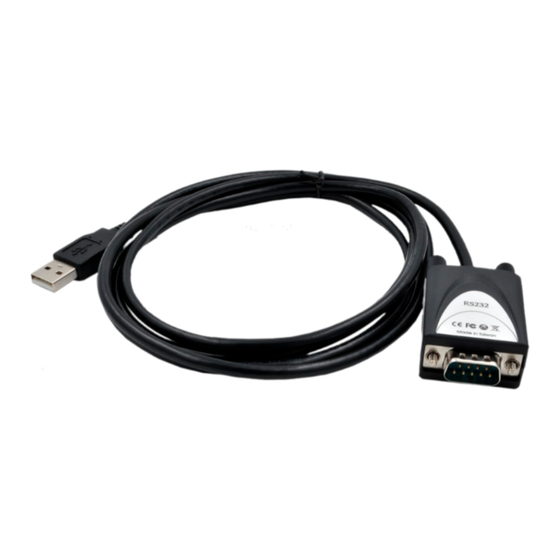

Der EX-1311-2 ist ein Konverter zur Umsetzung von USB 2.0 auf eine RS-232 Schnittstelle mit
FIFO 16C550 Port für den Anschluss von High Speed Seriellen RS-232 Peripherie Geräten
(z.B. Modem, Plotter usw.). Der EX-1311-2 ist mit eine USB 2.0 A-Stecker zum Anschluss an
den PC und einer RS-232 seriellen 9 Pin Stecker ausgestattet. Der USB Konverter ist Hot Plug
& Play fähig. Für die Einstellungen der I/O Adressen und Interrupts sind keine Jumper und
Einstellungen notwendig, da die Einstellungen automatisch vom System BIOS und bei der
Installation des Betriebssystems vorgenommen werden.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
ANSCHLÜSSE & STATUS LED'S
RS-232 Anschlussbelegung:
DB 9M
6
Anleitung
Vers. 1.1 / 12.10.23
2x Sechskantmuttern
USB 1.1 & 2.0
Windows 9.x / ME / 2000 / XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx /
Linux / MAC
1x USB 2.0 A-Stecker, 1x 9 Pin Stecker Seriell RS-232
EX-1311-2, 2x Sechskantmuttern, Treiber CD, Anleitung
Verdrahtung RS-232
DB9 (EX-1311-2)
9 Pin Stecker Seriell RS-232
1 DCD
Pin Signal Pin Signal 2 RXD
3 TXD
1 DCD 6 DSR
2 RXD 7 RTS 4 DTR
5 GND
3 TXD 8 CTS
6 DSR
4 DTR 9 RI
7 RTS
5 GND
8 CTS
1
EX-1311-2
S1: 9 Pin Stecker Seriell RS-232
RS-232 (Endgerät)
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
