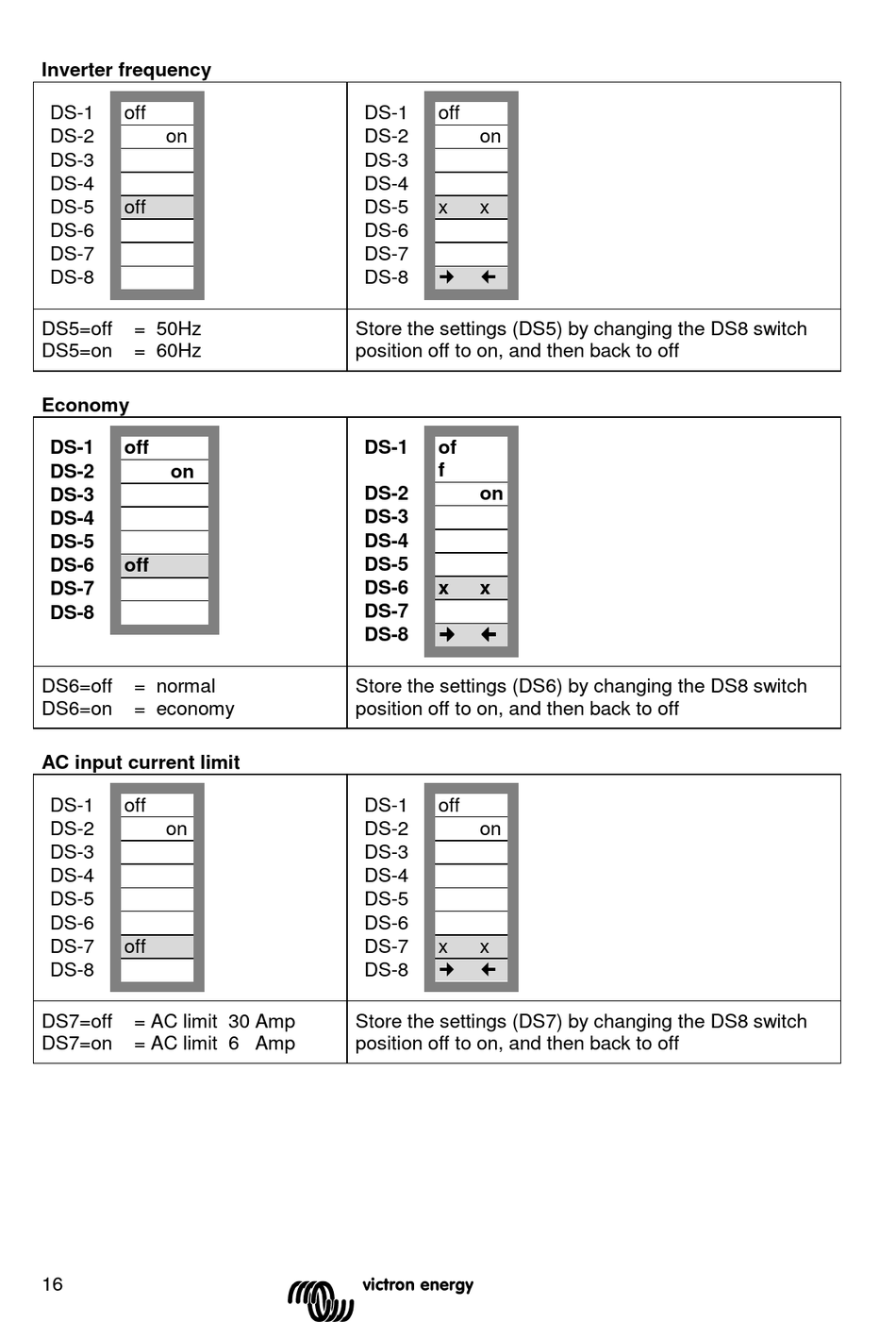

Inverter frequency
DS-1 off
DS-2 on
DS-3
DS-4
DS-5 off
DS-6
DS-7
DS-8
DS5=off = 50Hz
DS5=on = 60Hz
Economy
DS-1 off
DS-2 on
DS-3
DS-4
DS-5
DS-6 off
DS-7
DS-8
DS6=off = normal
DS6=on = economy
AC input current limit
DS-1 off
DS-2 on
DS-3
DS-4
DS-5
DS-6
DS-7 off
DS-8
DS7=off = AC limit 30 Amp
DS7=on = AC limit 6 Amp
16
DS-1 off
DS-2 on
DS-3
DS-4
DS-5 x x
DS-6
DS-7
DS-8

Store the settings (DS5) by changing the DS8 switch
position off to on, and then back to off
DS-1 of
f
DS-2 on
DS-3
DS-4
DS-5
DS-6 x x
DS-7
DS-8
   
Store the settings (DS6) by changing the DS8 switch
position off to on, and then back to off
DS-1 off
DS-2 on
DS-3
DS-4
DS-5
DS-6
DS-7 x x
DS-8

Store the settings (DS7) by changing the DS8 switch
position off to on, and then back to off
