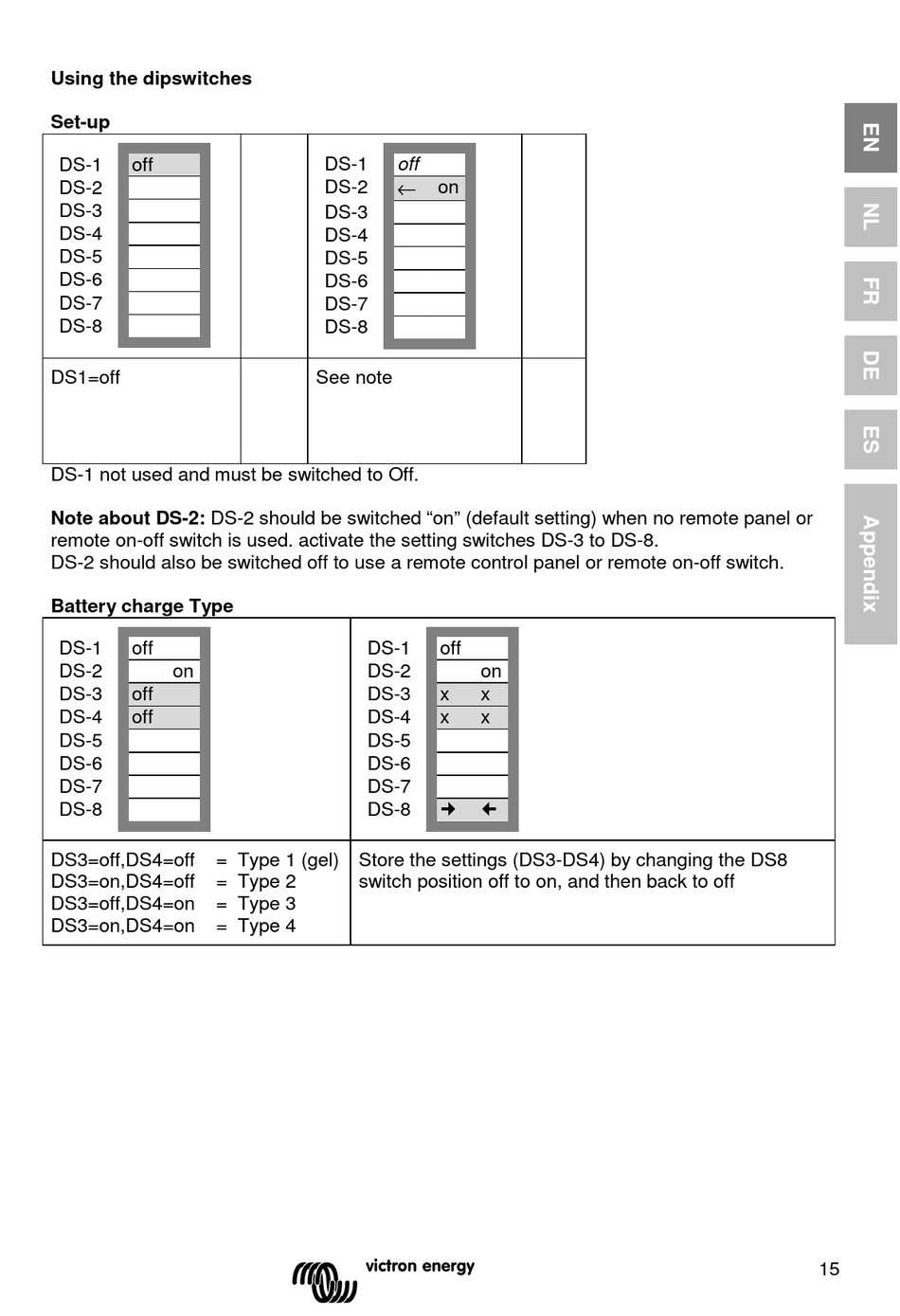

Using the dipswitches
Set-up
DS-1 off
DS-2
DS-3
DS-4
DS-5
DS-6
DS-7
DS-8
DS1=off
DS-1 not used and must be switched to Off.
Note about DS-2: DS-2 should be switched "on" (default setting) when no remote panel or
remote on-off switch is used. activate the setting switches DS-3 to DS-8.
DS-2 should also be switched off to use a remote control panel or remote on-off switch.
Battery charge Type
DS-1 off
DS-2 on
DS-3 off
DS-4 off
DS-5
DS-6
DS-7
DS-8
DS3=off,DS4=off = Type 1 (gel)
DS3=on,DS4=off = Type 2
DS3=off,DS4=on = Type 3
DS3=on,DS4=on = Type 4
DS-1
off
DS-2 on
←
DS-3
DS-4
DS-5
DS-6
DS-7
DS-8
See note
DS-1 off
DS-2 on
DS-3 x x
DS-4 x x
DS-5
DS-6
DS-7
DS-8

Store the settings (DS3-DS4) by changing the DS8
switch position off to on, and then back to off
