Things to know before installation

Instructions for use

The instructions are in the interest of the customer. If you keep the
regulations in the guidance, it will provide safe and proper use.

Environmental problems

If you do not need the device any more and cast it off, please deposit it at
your local collecting place, where the disused consumer articles are
collected so that the cast off articles cannot contaminate our
environment.

Placement and assembling

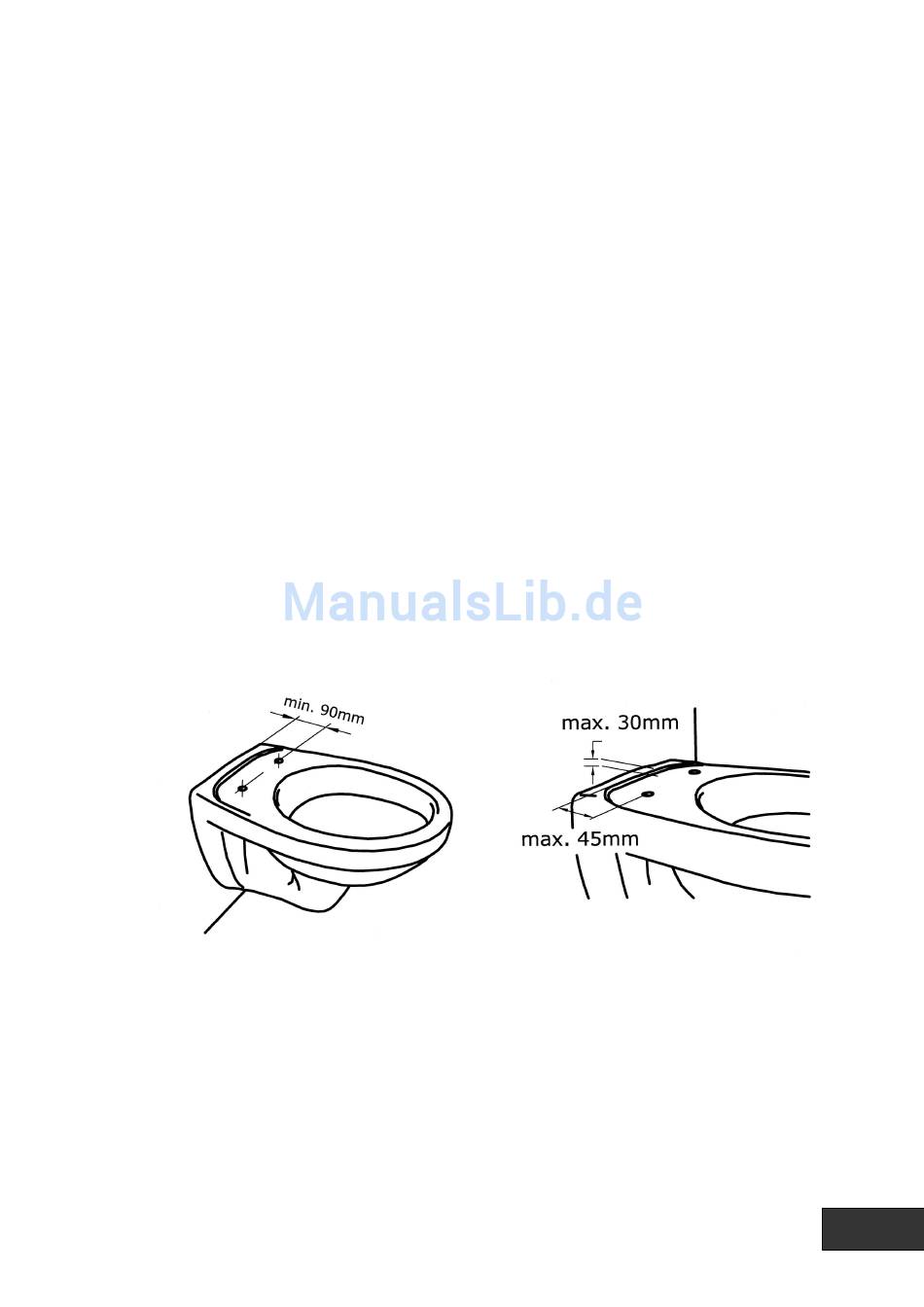

The device can be installed on water-closet pans, on which the distance
between the wall and the two boreholes needed for fixing, is not shorter
than 90 mm (figure 1.) and there is no lifting higher than 30 mm on the
back part of the water-closet pan, which would hinder the horizontal
fixing of the device. The distance between the lifting and the two
boreholes cannot be longer than 45 mm. (figure 2.)
1. figure 2. figure
If the water-closet pan suits these parameters, fix the device on the pan
according to Figure 3, with the two enclosed accessory screw-bolts.
(Important: the plastic basin-cone should be directly contacted with the
pan from beneath). Try to fix the device on the pan so that it should
follow the shape of the seat in the most optimal way, as well as, try to
decrease the distance between the wall and the device to the least
possible.
