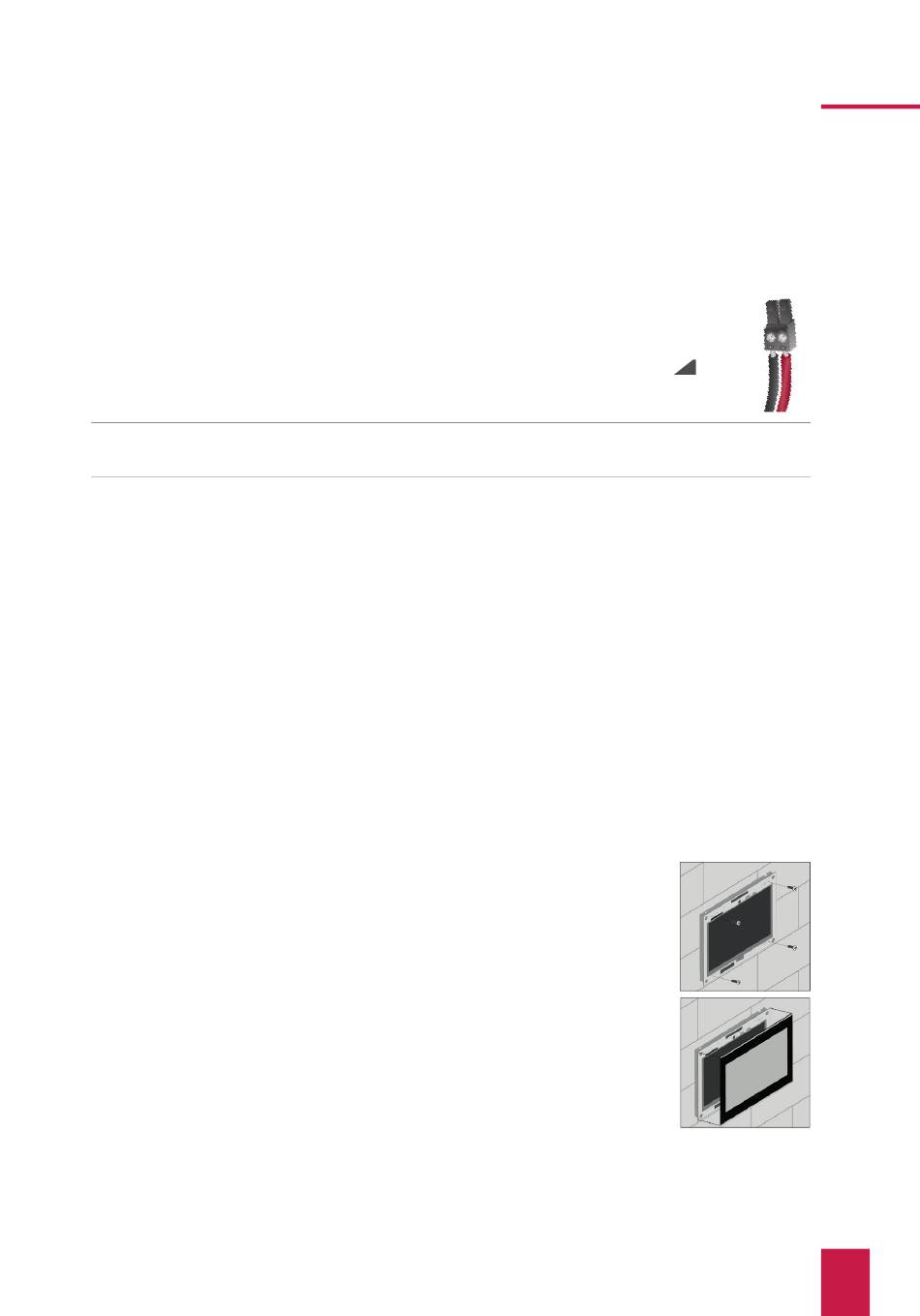

Preparing the voltage source for the DIN rail (recommended)
▪
Use a power source of the following specifi cation:
−
24 V DC, 2,5 A for the control cabinet, item number: PNX12-10010
▪
Connect the cable wires of the power supply unit with the pluggable screw terminal included
in the scope of delivery. Please pay attention to the polarity.
1.
Place the power supply unit (PNX12-10011) in the fl ush-mounted box.
2.
Connect the 24 V side of the power supply unit with the plug-in screw
terminal included in the scope of delivery. Please pay attention to the polarity.
terminal included in the scope of delivery. Please pay attention to the polarity.
3.
Connect the mains cable to the 230 V side of the power supply unit.
Note:
When using a third-party fl ush-mounted box or using a power supply unit in the fl ush-
mounted box, please refer to the manual for further instructions on earthing.
Connecting and mounting the panel
Preparation
1.
Place the screws (M3x12) included in the scope of delivery within reach for fi xing the panel
within the fl ush-mounted box.
Connecting the panel
2.
Connect the Ethernet cable to the panel.
3.
Plug the KNX cable with the colours red (+) and black (-) into the KNX-terminal,
as indicated on the panel.
4.
Push the prepared 24 V connector terminals into the appropriate connectors in the panel.
Pay attention to the polarity.
Fastening the panel
5.
Install the panel in the fl ush-mounted box. For doing so, use the four
countersunk screws (M3x12) for fi xing it in the slotted holes.
6.
Place the glass cover with the magnetic holders into the four intakes
provided and continue until the glass rests against all four corners
of the touch screen.
7.
Ensure that the opening for the camera is positioned on the upper
screen.
Connecting and mounting the panel
21
