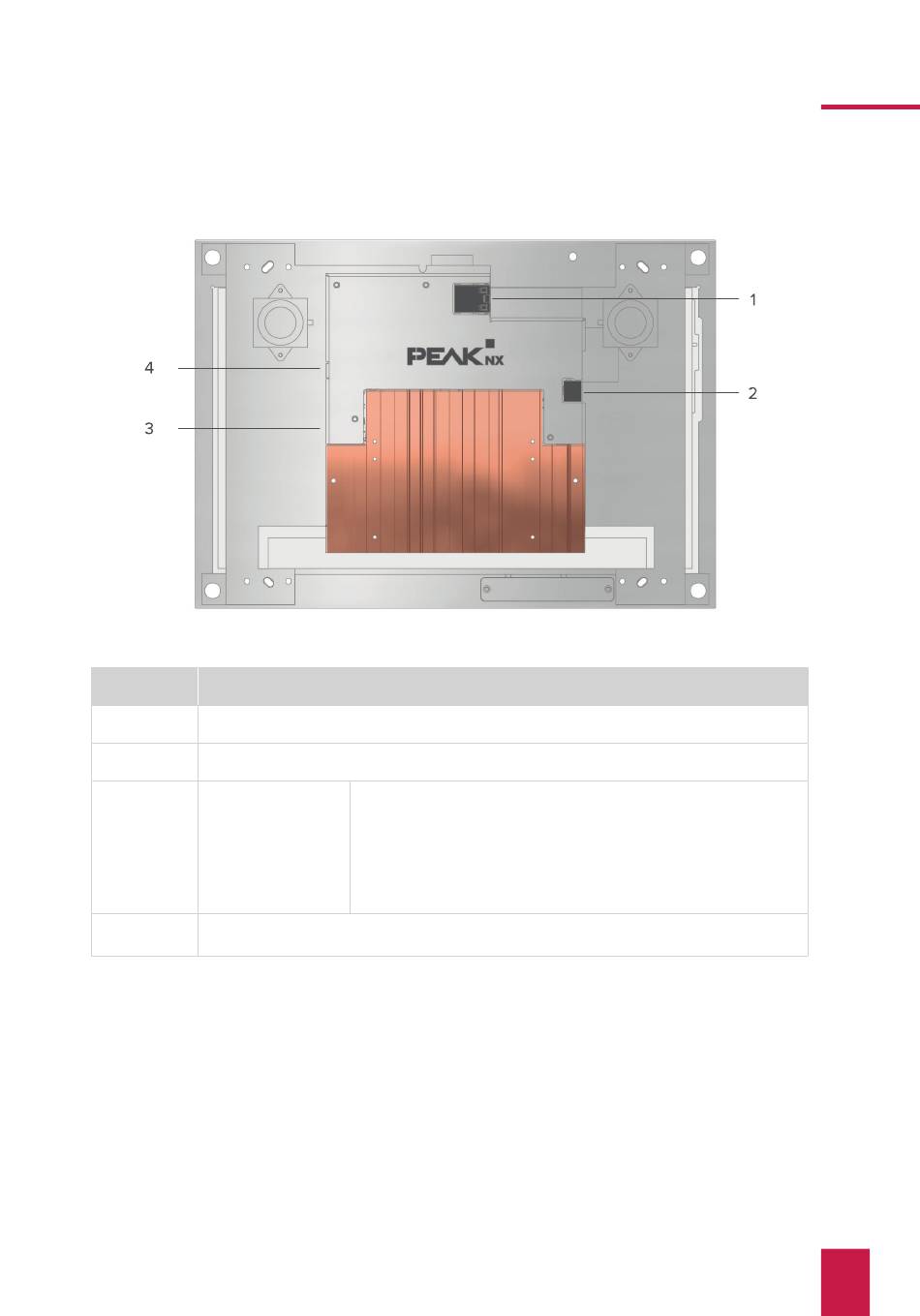

Touch panel, rear view
Position Description
1 1000 Mbit Ethernet port
2 KNX-Wago 243-211 installation terminal
3 USB C 3.2 Gen2
4 Panel power supply: 24 V DC, GND
Status LED:
Green: voltage in the correct range
▪
Red: over- or undervoltage, remove the power
▪
supply!
Off: no voltage or connected with reverse polarity
▪
