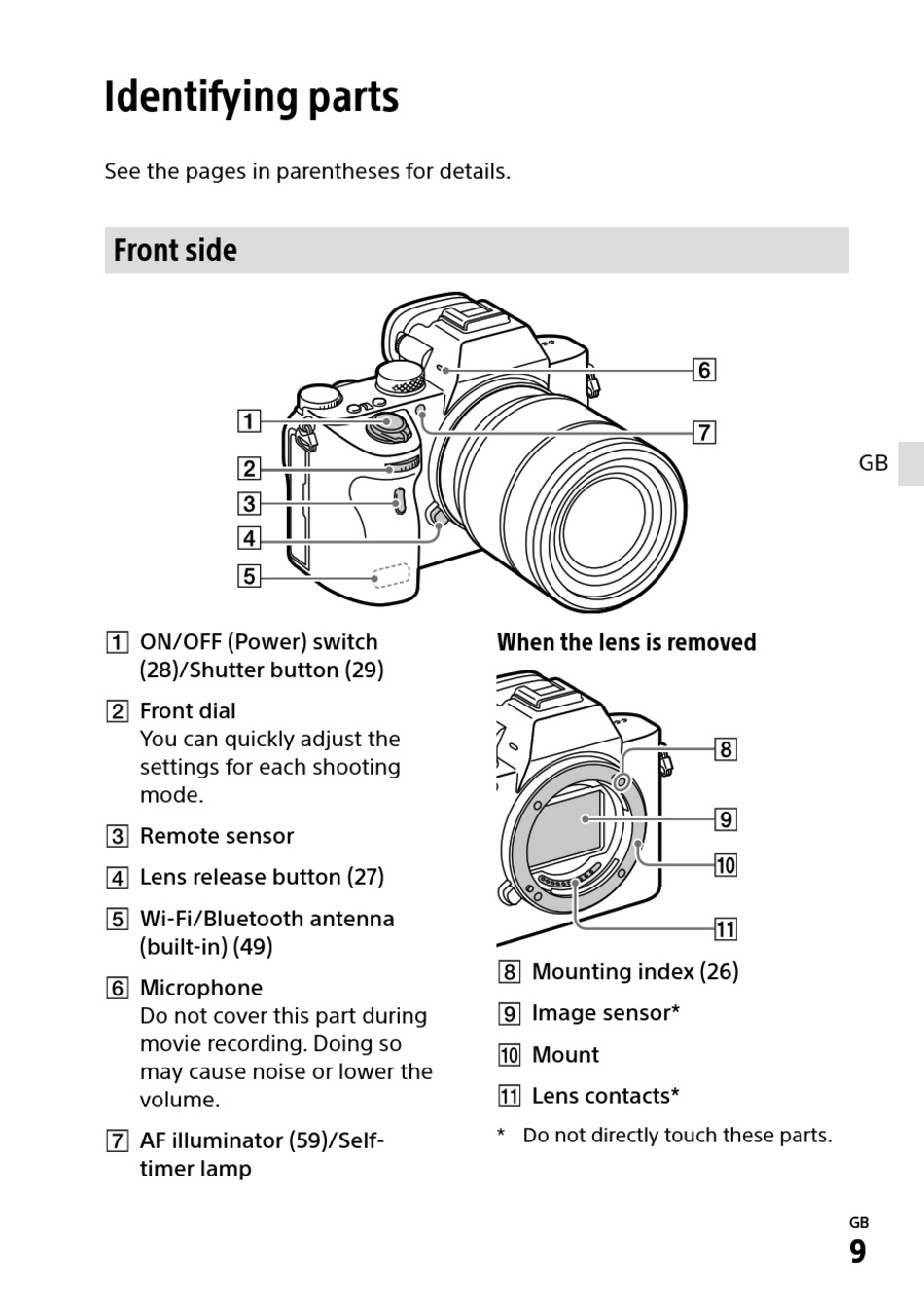

Identifying parts
See the pages in parentheses for details.
Front side
ON/OFF (Power) switch
(28)/Shutter button (29)
Front dial
You can quickly adjust the
settings for each shooting
mode.
Remote sensor
Lens release button (27)
Wi-Fi/Bluetooth antenna
(built-in) (49)
Microphone
Do not cover this part during
movie recording. Doing so
may cause noise or lower the
volume.
AF illuminator (59)/Self-
timer lamp
When the lens is removed
Mounting index (26)
Image sensor*
Mount
Lens contacts*
* Do not directly touch these parts.
GB
GB
GB
9
9
