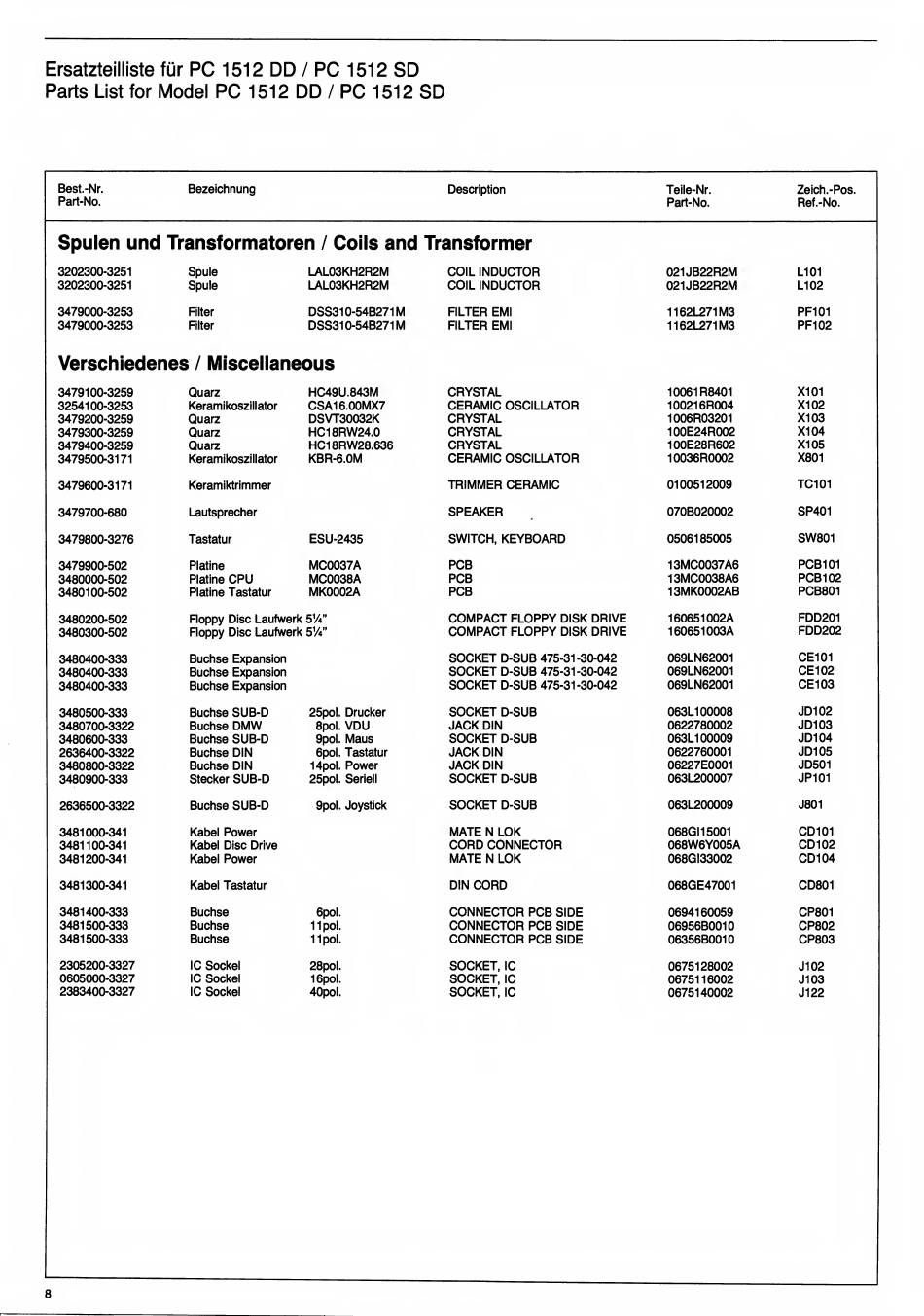

Ersatzteilliste fur PC 1512 DD / PC 1512 SD
Parts List for Model PC 1512 DD / PC 1512 SD
Best.-Nr.
Bezeichnung
Description
Teile-Nr.
Zeich.-Pos.
Part-No.
Part-No.
Ref.-No.
Spulen und Transformatoren / Coils and Transformer
3202300-3251
Spule
LAL03KH2R2M
COIL INDUCTOR
021JB22R2M
LI 01
3202300-3251
Spule
LAL03KH2R2M
COIL INDUCTOR
021JB22R2M
LI 02
3479000-3253
Filter
DSS310-54B271M
FILTER EMI
1162L271M3
PF101
3479000-3253
Filter
DSS310-54B271M
FILTER EMI
1162L271M3
PF102
Verschiedenes / Miscellaneous
3479100-3259
Quarz
HC49U.843M
CRYSTAL
10061R8401
XI01
3254100-3253
Keramikoszillator
CSA16.00MX7
CERAMIC OSCILLATOR
100216R004
XI02
3479200-3259
Quarz
DSVT30032K
CRYSTAL
1006R03201
XI03
3479300-3259
Quarz
HC18RW24.0
CRYSTAL
100E24R002
XI04
3479400-3259
Quarz
HC18RW28.636
CRYSTAL
100E28R602
XI05
3479500-3171
Keramikoszillator
KBR-6.0M
CERAMIC OSCILLATOR
10036R0002
X801
3479600-3171
Keramiktrimmer
TRIMMER CERAMIC
0100512009
TCI 01
3479700-680
Lautsprecher
SPEAKER
070B020002
SP401
3479800-3276
Tastatur
ESU-2435
SWITCH, KEYBOARD
0506185005
SW801
3479900-502
Platine
MC0037A
PCB
13MC0037A6
PCB101
3480000-502
Platine CPU
MC0038A
PCB
13MC0038A6
PCB102
3480100-502
Platine Tastatur
MK0002A
PCB
13MK0002AB
PCB801
3480200-502
Floppy Disc Laufwerk 5Va"
COMPACT FLOPPY DISK DRIVE
160651002A
FDD201
3480300-502
Floppy Disc Laufwerk
5
V
4
"
COMPACT FLOPPY DISK DRIVE
160651003A
FDD202
3480400-333
Buchse Expansion
SOCKET D-SUB 475-31-30-042
069LN62001
CE101
3480400-333
Buchse Expansion
SOCKET D-SUB 475-31-30-042
069LN62001
CE102
3480400-333
Buchse Expansion
SOCKET D-SUB 475-31-30-042
069LN62001
CE103
3480500-333
Buchse SUB-D
25pol. Drucker
SOCKET D-SUB
063L100008
JD102
3480700-3322
Buchse DMW
8pol. VDU
JACK DIN
0622780002
JD103
3480600-333
Buchse SUB-D
9pol. Maus
SOCKET D-SUB
063L100009
JD104
2636400-3322
Buchse DIN
6pol. Tastatur
JACK DIN
0622760001
JD105
3480800-3322
Buchse DIN
14pol. Power
JACK DIN
06227E0001
JD501
3480900-333
Stecker SUB-D
25pol. Seriell
SOCKET D-SUB
063L200007
JP101
2636500-3322
Buchse SUB-D
9pol. Joystick
SOCKET D-SUB
063L200009
J801
3481000-341
Kabel Power
MATE N LOK
068G115001
CD101
3481100-341
Kabel Disc Drive
CORD CONNECTOR
068W6Y005A
CD102
3481200-341
Kabel Power
MATE N LOK
068G133002
CD104
3481300-341
Kabel Tastatur
DIN CORD
068GE47001
CD801
3481400-333
Buchse
6pol.
CONNECTOR PCB SIDE
0694160059
CP801
3481500-333
Buchse
11 pol.
CONNECTOR PCB SIDE
06956B0010
CP802
3481500-333
Buchse
Ilpol.
CONNECTOR PCB SIDE
06356B0010
CP803
2305200-3327
1C Socket
28pol.
SOCKET, 1C
0675128002
J102
0605000-3327
1C Socket
16pol.
SOCKET, 1C
0675116002
J103
2383400-3327
1C Sockel
40pol.
SOCKET, 1C
0675140002
J122
8
