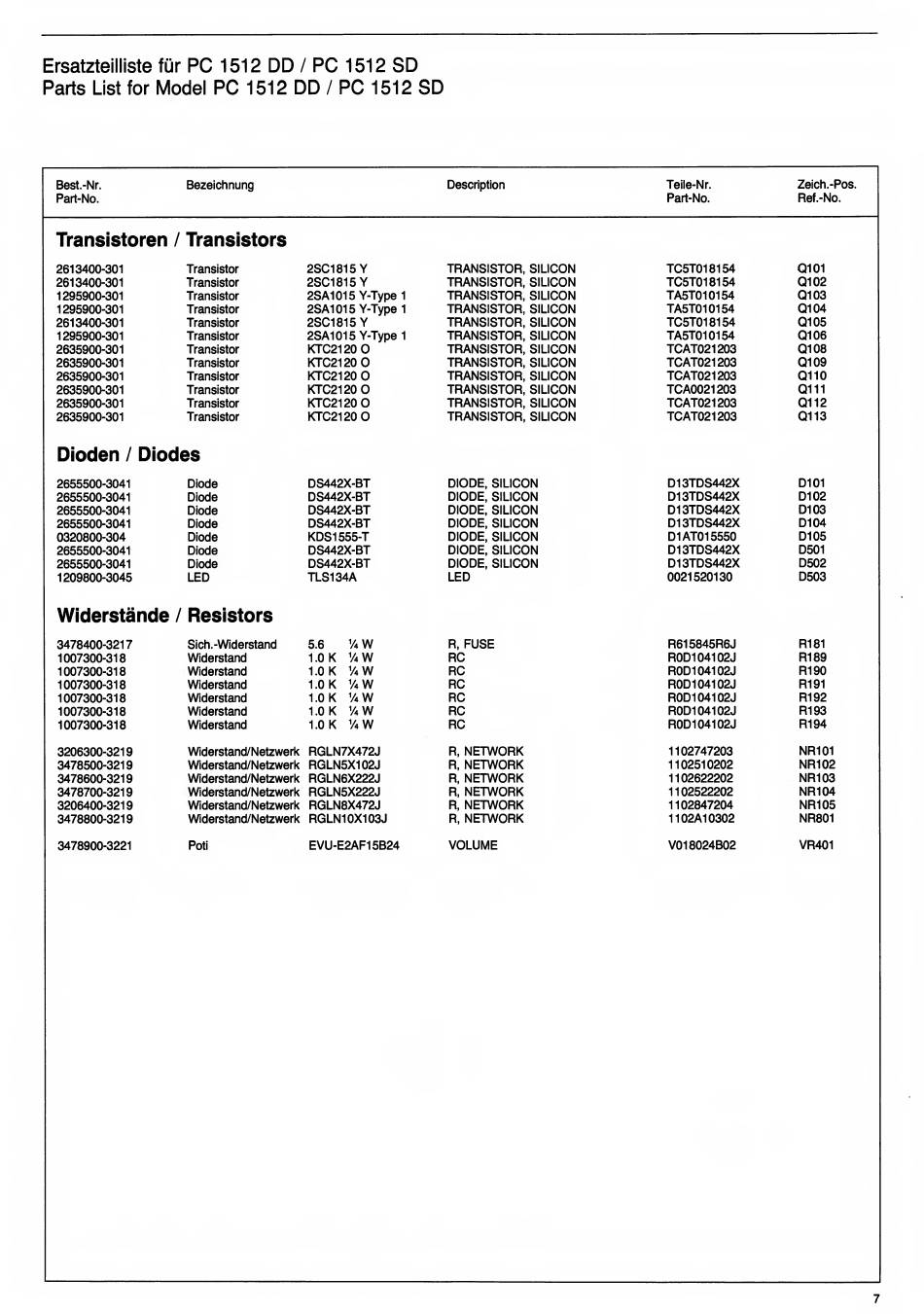

Ersatzteilliste fur PC 1512 DD / PC 1512 SD
Parts List for Model PC 1512 DD / PC 1512 SD
Best.-Nr.
Part-No.
Bezeichnung
Description
Teile-Nr.
Part-No.
Zeich.-Pos.
Ref.-No.
Transistoren / Transistors
2613400-301
Transistor
2SC1815 Y
TRANSISTOR, SILICON
TC5T018154
Q101
2613400-301
Transistor
2SC1815 Y
TRANSISTOR, SILICON
TC5T018154
Q102
1295900-301
Transistor
2SA1015 Y-Type 1
TRANSISTOR, SILICON
TA5T010154
Q103
1295900-301
Transistor
2SA1015 Y-Type 1
TRANSISTOR, SILICON
TA5T010154
Q104
2613400-301
Transistor
2SC1815 Y
TRANSISTOR, SILICON
TC5T018154
Q105
1295900-301
Transistor
2SA1015 Y-Type 1
TRANSISTOR, SILICON
TA5T010154
Q106
2635900-301
Transistor
KTC2120 O
TRANSISTOR, SILICON
TCAT021203
Q108
2635900-301
Transistor
KTC2120 O
TRANSISTOR, SILICON
TCAT021203
Q109
2635900-301
Transistor
KTC2120 O
TRANSISTOR, SILICON
TCAT021203
Q110
2635900-301
Transistor
KTC2120 O
TRANSISTOR, SILICON
TCA0021203
Q111
2635900-301
Transistor
KTC2120 O
TRANSISTOR, SILICON
TCAT021203
Q112
2635900-301
Transistor
KTC2120 O
TRANSISTOR, SILICON
TCAT021203
Q113
Dioden / Diodes
2655500-3041
Diode
DS442X-BT
DIODE, SILICON
D13TDS442X
D101
2655500-3041
Diode
DS442X-BT
DIODE, SILICON
D13TDS442X
D102
2655500-3041
Diode
DS442X-BT
DIODE, SILICON
D13TDS442X
D103
2655500-3041
Diode
DS442X-BT
DIODE, SILICON
D13TDS442X
D104
0320800-304
Diode
KDS1555-T
DIODE, SILICON
D1AT015550
D105
2655500-3041
Diode
DS442X-BT
DIODE, SILICON
D13TDS442X
D501
2655500-3041
Diode
DS442X-BT
DIODE, SILICON
D13TDS442X
D502
1209800-3045
LED
TLS134A
LED
0021520130
D503
Widerstande / Resistors
3478400-3217
Sich.-Widerstand
5.6
% W
R, FUSE
R615845R6J
R181
1007300-318
Widerstand
1.0 K
ViW
RC
R0D104102J
R189
1007300-318
Widerstand
1.0 K
'AW
RC
R0D104102J
R190
1007300-318
Widerstand
i.o k y4w
RC
R0D104102J
R191
1007300-318
Widerstand
1.0 K
'AW
RC
R0D104102J
R192
1007300-318
Widerstand
i.o k y4w
RC
ROD104102J
R193
1007300-318
Widerstand
i.o
k
y4w
RC
R0D104102J
R194
3206300-3219
Widerstand/Netzwerk RGLN7X472J
R, NETWORK
1102747203
NR101
3478500-3219
Widerstand/Netzwerk RGLN5X102J
R, NETWORK
1102510202
NR102
3478600-3219
Widerstand/Netzwerk RGLN6X222J
R, NETWORK
1102622202
NR103
3478700-3219
Widerstand/Netzwerk RGLN5X222J
R, NETWORK
1102522202
NR104
3206400-3219
Widerstand/Netzwerk RGLN8X472J
R, NETWORK
1102847204
NR105
3478800-3219
Widerstand/Netzwerk RGLN10X103J
R, NETWORK
1102A10302
NR801
3478900-3221
Poti
EVU-E2AF15B24
VOLUME
V018024B02
VR401
7
