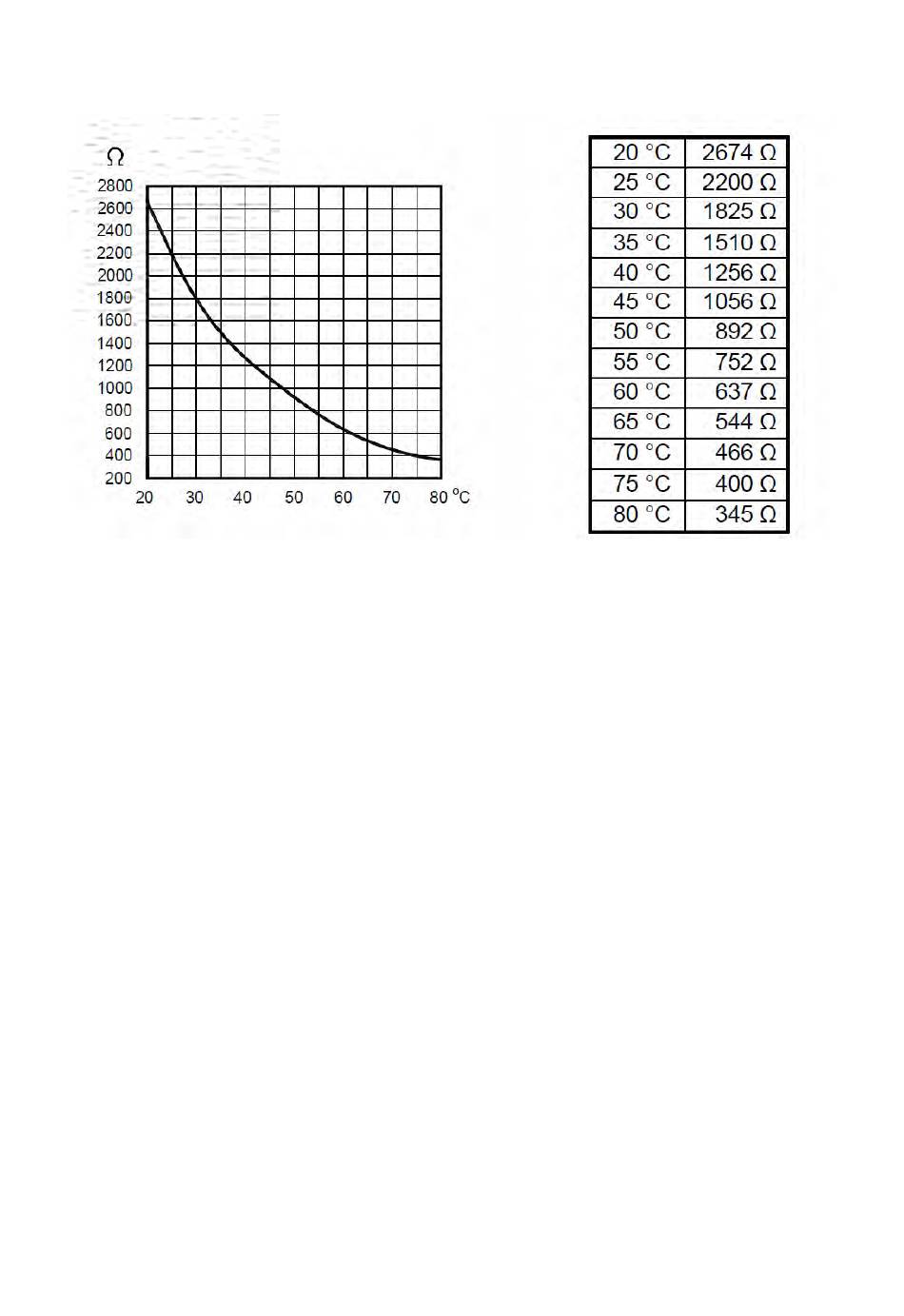

Sensor resistance
The resistance is measured at the two wires in the middle of the 6/4-wire cable contact.
Technical data
• PI-control with microprocessor
• Voltage 18 VAC 50/60 Hz
• Adapter 230/18 VAC, 190 mA with 2.5 m (8,4 ft.) wire
• Power consumption 3 VA
• Temperature range +10ºC ... +80ºC, stepless
• Temperature sensor NTC 2K2
• Motor pulse 0,3 sec ... 2 sec, stepless
• Angle of rotation electrically limited to 90°
• Torque 5 Nm (44 lb.in)
• Running time 140 sec
• Manual operation in case of power failure
• Max. temperature for sensor 110°C
• Ambient temperature -10°C ...+50°C
• Dimensions 80 x 90 x 93 mm (3,15 x 3,54 x 3,66 in)
• Protection type IP41
• Protection class II
• Service free
• Weight 0,4 kg (0,88 lb.)
