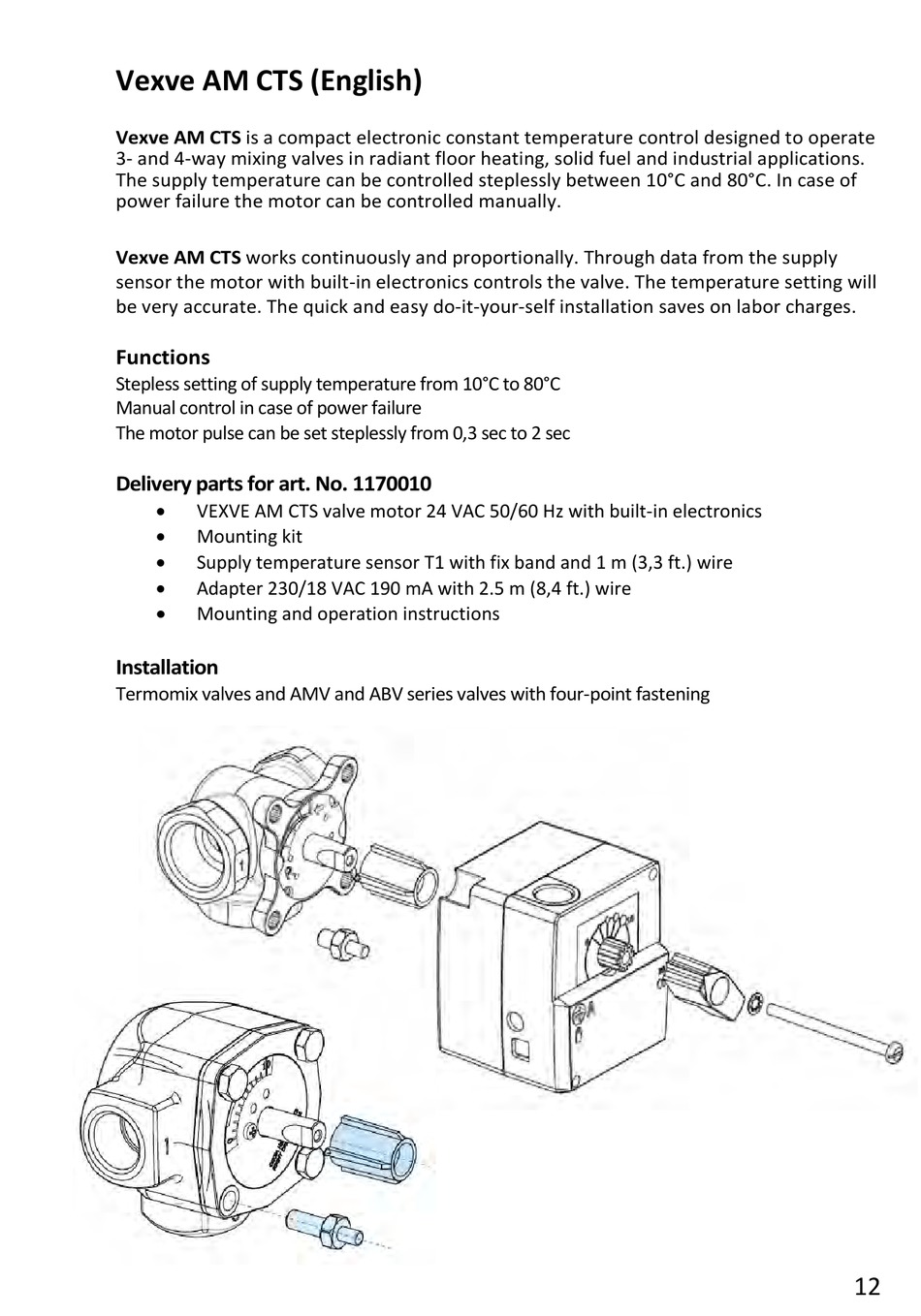

Vexve AM CTS (English)
Vexve AM CTS is a compact electronic constant temperature control designed to operate
3- and 4-way mixing valves in radiant floor heating, solid fuel and industrial applications.
The supply temperature can be controlled steplessly between 10°C and 80°C. In case of
power failure the motor can be controlled manually.
Vexve AM CTS works continuously and proportionally. Through data from the supply
sensor the motor with built-in electronics controls the valve. The temperature setting will
be very accurate. The quick and easy do-it-your-self installation saves on labor charges.
Functions
Stepless setting of supply temperature from 10°C to 80°C
Manual control in case of power failure
The motor pulse can be set steplessly from 0,3 sec to 2 sec
Delivery parts for art. No. 1170010

VEXVE AM CTS valve motor 24 VAC 50/60 Hz with built-in electronics

Mounting kit

Supply temperature sensor T1 with fix band and 1 m (3,3 ft.) wire

Adapter 230/18 VAC 190 mA with 2.5 m (8,4 ft.) wire

Mounting and operation instructions
Installation
Termomix valves and AMV and ABV series valves with four-point fastening
12
