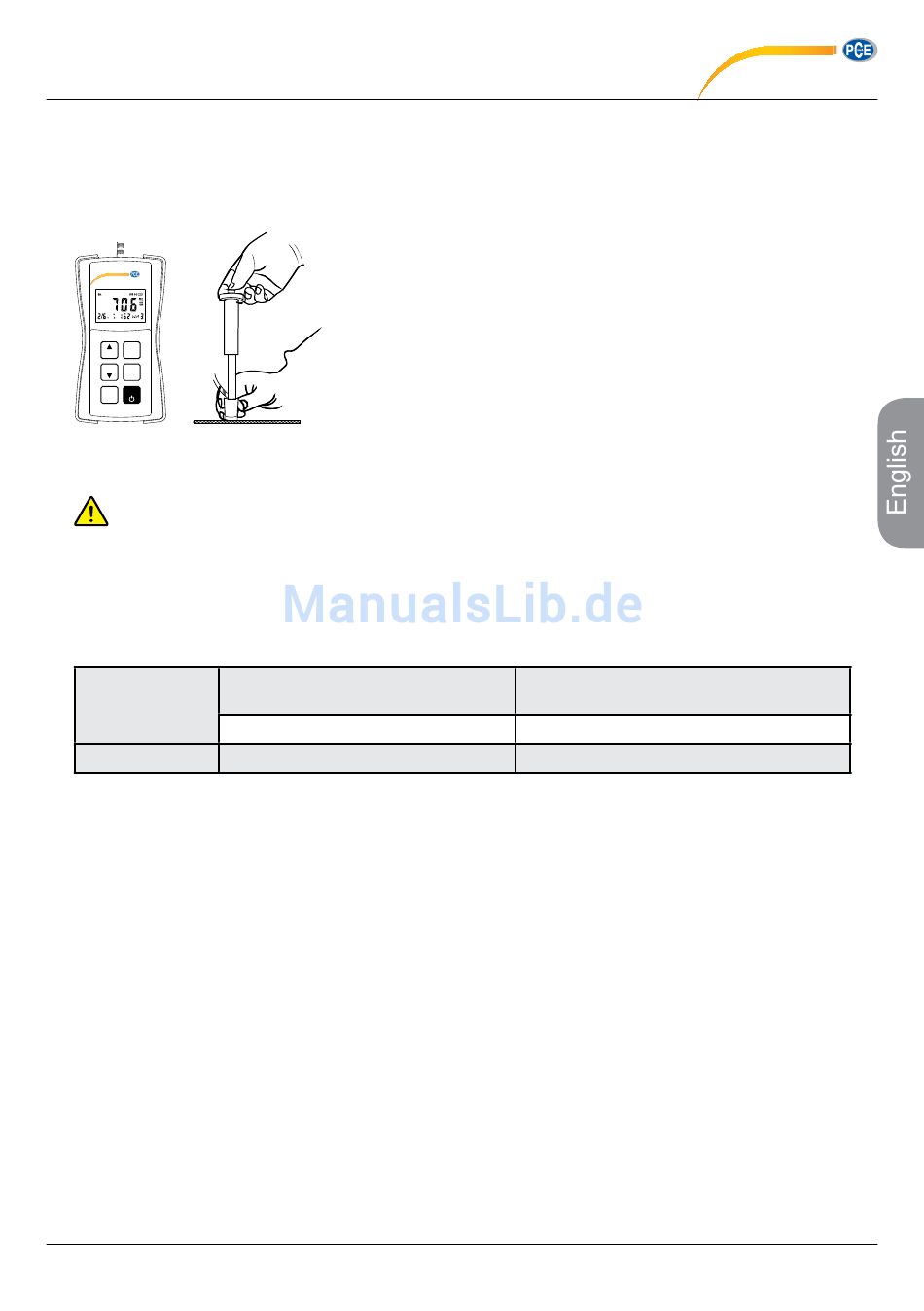

Make a measurement by pushing the release button on the top of the impact device. The measurement value will
then be indicated in the LC display. Before pushing the release button, make sure that the sample as well as the
impact device and impact body stand solidly. In addition, the direction of the starting force should be aligned with
the axis of the impact device.
MAT
RD
DEL
SCALE
MENU
DIR
If the measurement results are outside the range of the conversion chart, "E" will be displayed.
You must not push the release button if the impact device is not in contact with the sample as otherwise, the
support ring can come off easily.
Every portion of the sample must be measured 2 to 5 times. The results should not be below or above the average
value ±15 HL.
The distance between any two points of impact or between the middle of any one point of impact and the edge of a
sample should fulfil the requirements of the following chart.
Centre-to-centre distance of the two
Impact device
type
D
6.7
Data storage
During the measurement, all data are automatically saved to the memory and the consecutive number of saved
measurement values is increased by 1. The meter can save up to 50 sets of data along with the measuring
conditions. When the memory is full, the oldest entry will automatically be deleted, so that the new value can be
saved.
6.8
Memory readout
When you are in measurement mode, which is indicated by an "M" in the display, press the Readout / Up key
to enter readout mode. This mode is indicated by an "R" in the display. To navigate within the memory, use the
Readout / Up key and the Delete / Down key. To return to measurement mode, press the On/Off / Menu key.
6.9
Data deletion
In measurement mode (indicated by "M" in the display), you can delete the current measurement using the Delete /
Down key. The consecutive memory number will be reduced by 1. To delete the entire memory, press and hold the
Delete / Down key for 3 seconds, until the memory item number is 000.
6.10
Data download to PC
The device can be connected to a computer, using an optionally available USB or RS-232C cable and a software.
Consequently, all data can be transferred to a computer at any time by pressing the Readout / Up key in
measurement mode.
points of impact
above
3 mm
Distance from centre of the point of impact
to the edge of the sample
above
5 mm
EN - 25
